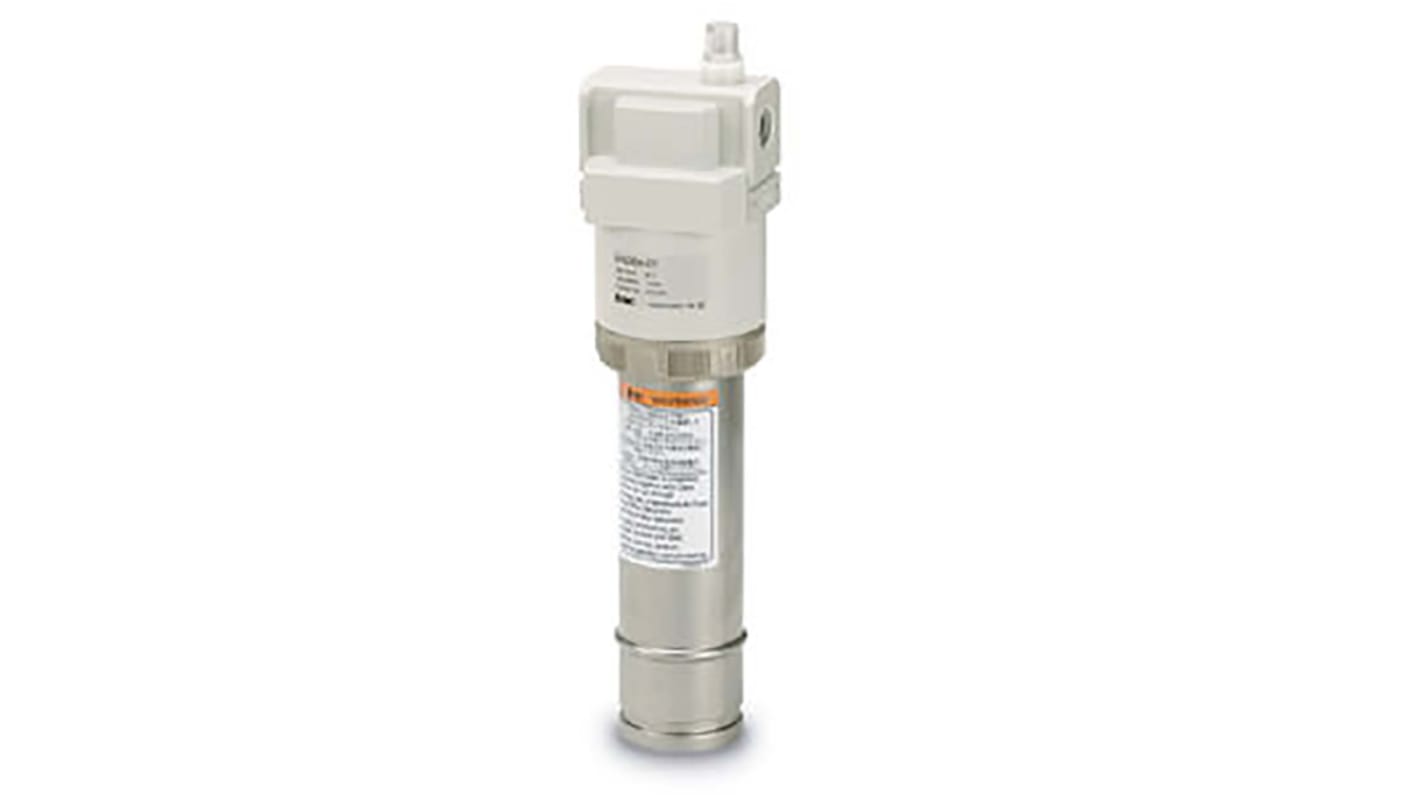

SMC Air Dryer Compressed Air Dryer -40 °C, IDG50LA-F03
- RS Stock No.:
- 196-4421
- Mfr. Part No.:
- IDG50LA-F03
- Brand:
- SMC
Subtotal (1 unit)*
£1,170.86
(exc. VAT)
£1,405.03
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,170.86 |
*price indicative
- RS Stock No.:
- 196-4421
- Mfr. Part No.:
- IDG50LA-F03
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Compressed Air Dryer | |
| Sub Type | Air Dryer | |
| Dew Point | -40°C | |
| Inlet Port Size | 3/8 in G | |
| Maximum Flow Rate | 110L/min | |
| Series | IDG | |
| Outlet Port Size | 3/8 in | |
| Overall Length | 70mm | |
| Minimum Operating Temperature | -5°C | |
| Minimum Inlet Pressure | 0.3MPa | |
| Maximum Inlet Pressure | 1MPa | |
| Outlet Thread Standard | G | |
| Maximum Operating Temperature | 50°C | |
| Overall Width | 70mm | |
| Overall Height | 330mm | |
| Standards/Approvals | ISO 4414, ISO 10218-1, RoHS, IEC 60204-1 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Compressed Air Dryer | ||
Sub Type Air Dryer | ||
Dew Point -40°C | ||
Inlet Port Size 3/8 in G | ||
Maximum Flow Rate 110L/min | ||
Series IDG | ||
Outlet Port Size 3/8 in | ||
Overall Length 70mm | ||
Minimum Operating Temperature -5°C | ||
Minimum Inlet Pressure 0.3MPa | ||
Maximum Inlet Pressure 1MPa | ||
Outlet Thread Standard G | ||
Maximum Operating Temperature 50°C | ||
Overall Width 70mm | ||
Overall Height 330mm | ||
Standards/Approvals ISO 4414, ISO 10218-1, RoHS, IEC 60204-1 | ||
- COO (Country of Origin):
- JP
Membrane air dryer series
Energy saving
Single unit style
5 sizes available
Port sizes: 1/4" to ½"
