Siemens Manual type Electrically Actuated Valve, 16 bar
- RS Stock No.:
- 287-8839
- Mfr. Part No.:
- VXF42.100-160 / S55204-V143
- Brand:
- Siemens
Subtotal (1 unit)*
£1,813.12
(exc. VAT)
£2,175.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,813.12 |
*price indicative
- RS Stock No.:
- 287-8839
- Mfr. Part No.:
- VXF42.100-160 / S55204-V143
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Valve Type | Manual | |
| Return Type | Spring | |
| Maximum Working Pressure | 16 bar | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Valve Type Manual | ||
Return Type Spring | ||
Maximum Working Pressure 16 bar | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE

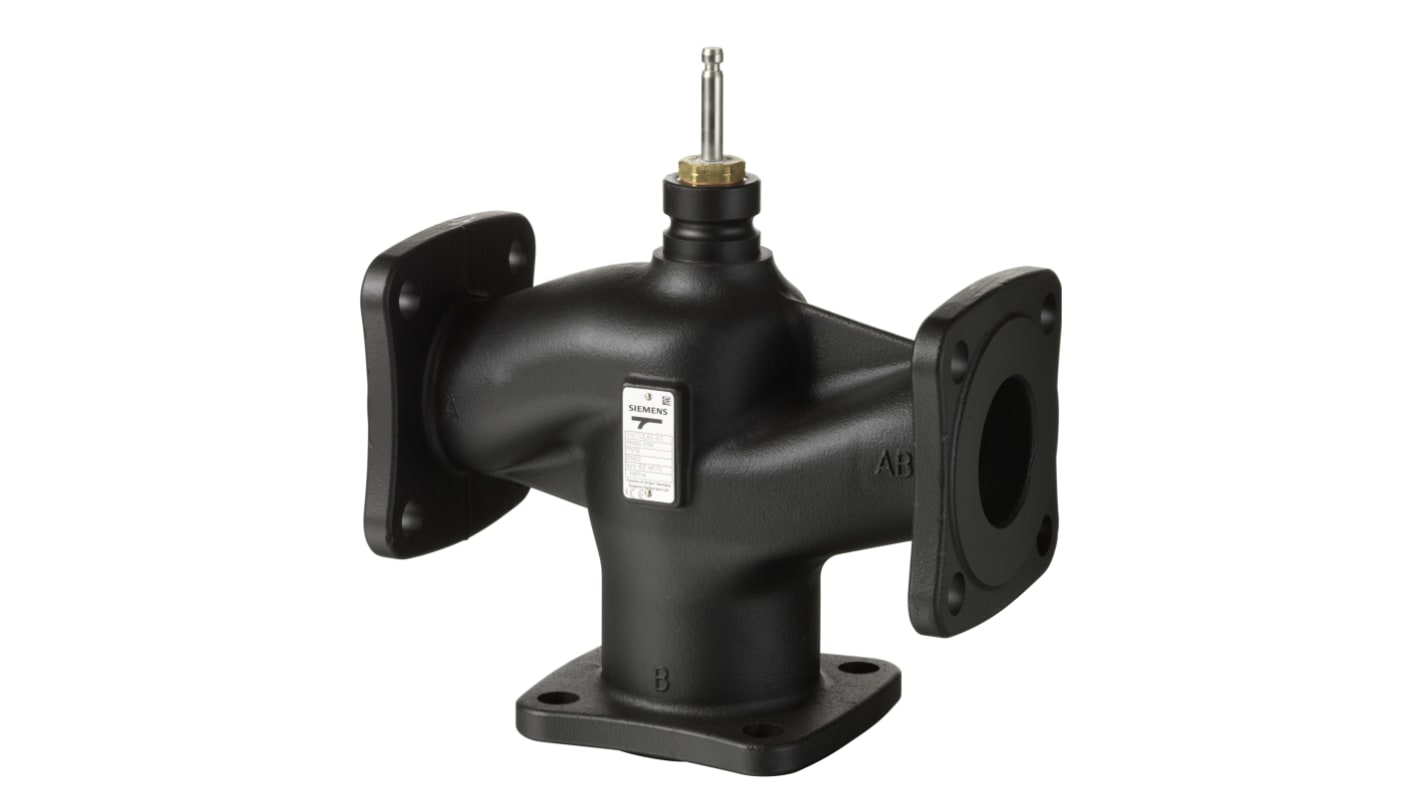

The Siemens 3-port valve with flanged connections and a PN 16 pressure rating. It is part of the ACVATIX large-stroke valve line and is designed for control and shutoff applications in boiler, district heating, refrigeration plants, heating groups, ventilation units, and air-handling units. With a medium temperature range of -10°C to 150°C, this valve is suitable for a variety of temperature control applications. The valve body is made of grey cast iron EN-GJL-250, ensuring durability and reliability. It is available with various actuators, including electro-motoric and electro-hydraulic actuators, providing flexibility and compatibility with different automation systems.
Control and shutoff applications for medium temperatures from -10°C to 150°C
Valve body made of durable grey cast iron EN-GJL-250
Wide range of sizes available, from DN 15 to DN 150
High flow rates, with k values ranging from 1.6 to 400 m³/h
Flange type 21, Flange design B for easy installation
VVF42K models with pressure compensation for handling high differential pressure
Compatible with various electro-motoric and electro-hydraulic actuators for automation
Suitable for use in closed hydraulic circuits (cavitation must be observed)
Valve body made of durable grey cast iron EN-GJL-250
Wide range of sizes available, from DN 15 to DN 150
High flow rates, with k values ranging from 1.6 to 400 m³/h
Flange type 21, Flange design B for easy installation
VVF42K models with pressure compensation for handling high differential pressure
Compatible with various electro-motoric and electro-hydraulic actuators for automation
Suitable for use in closed hydraulic circuits (cavitation must be observed)
