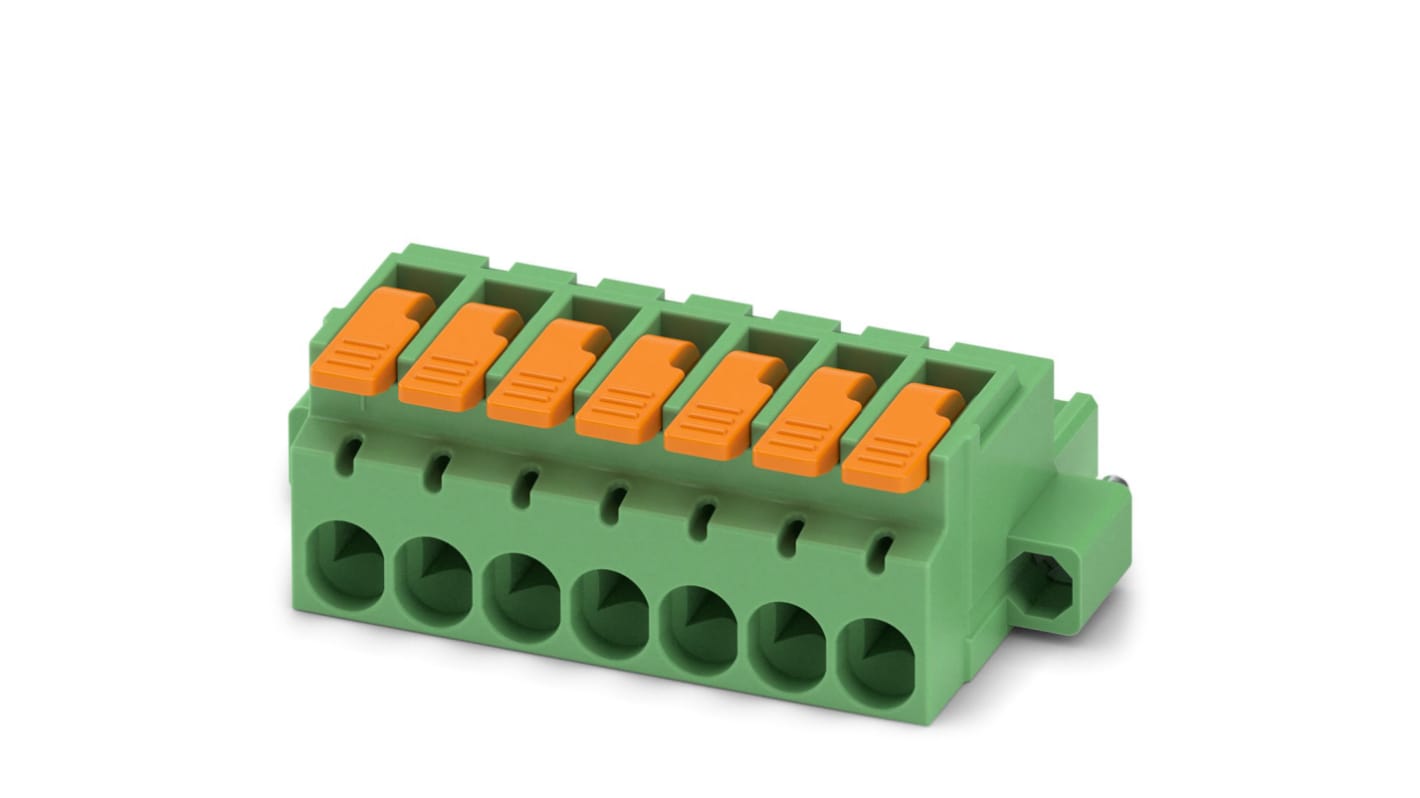

Phoenix Contact Pluggable Terminal Block, 7-Contact, 5.08 mm Pitch, 1 Row, 1110634

View all Pluggable Terminal Blocks

Subtotal (1 pack of 50 units)*

£264.70

(exc. VAT)

£317.65

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 +£5.294£264.70

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
240-3031
Mfr. Part No.:
1110634
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Pluggable Terminal Block

Number of Contacts

7

Pitch

5.08mm

Number of Rows

1

Current

16A

Minimum Wire Size mm²

2mm²

Housing Material

Polyamide

Connector Gender

Female

Maximum Wire Size mm²

2.5mm²

Minimum Wire Size AWG

26 AWG

Maximum Wire Size AWG

12 AWG

Orientation

0°

Wire Connection Method

Push-in

Colour

Green

Voltage

320 V

Length

27.37mm

Standards/Approvals

VDE, UL Recognised, cULus Recognised

Width

45.74 mm

Depth

15.39mm

RoHS Status: Exempt

COO (Country of Origin):
PL
The Phoenix Contact has PCB connector with time-saving push-in connection when lever is closed. This female connector has 7 numbers of position and nominal current of it is 16 A and the voltage is 320 V.

Quick and convenient testing using integrated test option

Clear lever positions provide reliable feedback on opened or closed clamping spaces

Ambient temperature for operation is -40 °C to 105 °C
