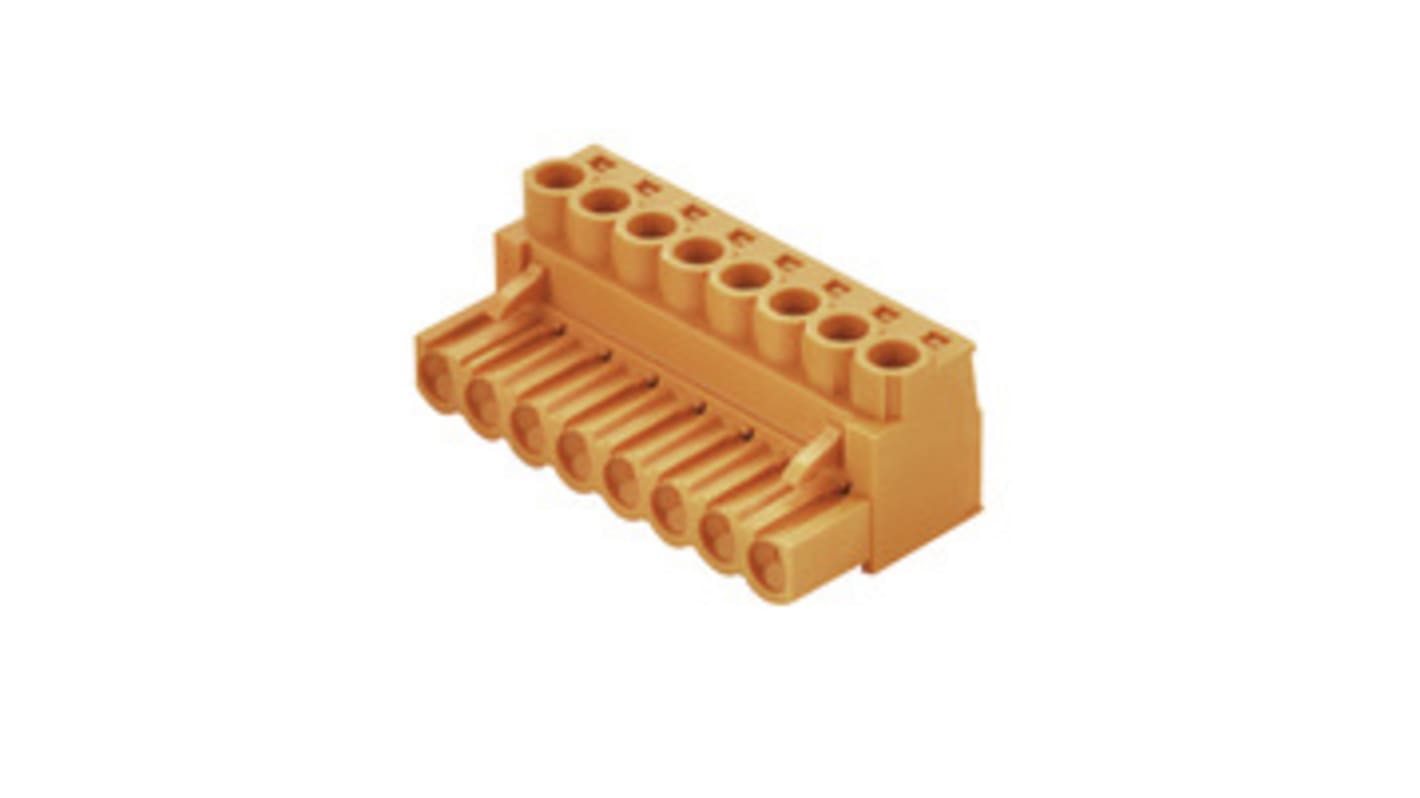

Weidmuller, 5.08mm Pitch, BL, 12 Way, Right Angle, Pluggable Terminal Block, Plug, Through Hole, Screw Termination,
- RS Stock No.:
- 176-7830
- Mfr. Part No.:
- 1943910000
- Brand:
- Weidmüller
Bulk discount available
Subtotal (1 pack of 5 units)*
£34.91
(exc. VAT)
£41.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
- Plus 60 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £6.982 | £34.91 |
| 10 - 20 | £6.648 | £33.24 |
| 25 - 45 | £6.344 | £31.72 |
| 50 - 95 | £6.066 | £30.33 |
| 100 + | £5.818 | £29.09 |
*price indicative
- RS Stock No.:
- 176-7830
- Mfr. Part No.:
- 1943910000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Pluggable Terminal Block Type | Plug | |
| Number of Contacts | 12 | |
| Pitch | 5.08mm | |
| Series | BL | |
| Number of Rows | 1 | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Termination Method | Screw | |
| Current Rating | 20A | |
| Voltage Rating | 400 V, 300 (CSA, UL 1059) V | |
| Colour | Black | |
| Material | Copper Alloy (Contact), PBT (Insulation) | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand Weidmüller | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 12 | ||
Pitch 5.08mm | ||
Series BL | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Termination Method Screw | ||
Current Rating 20A | ||
Voltage Rating 400 V, 300 (CSA, UL 1059) V | ||
Colour Black | ||
Material Copper Alloy (Contact), PBT (Insulation) | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- DE
Weidmuller Series BL Pluggable Terminal Block, 20A Current Rating, 400V/300 (CSA/UL 1059)V Voltage Rating - 1943910000
This pluggable terminal block is designed for efficient electrical connections across various applications. It features 12 contacts arranged in a single row and offers a compact solution for circuit interconnections with a pitch of 5.08mm, making it suitable for through-hole mounting.
Features & Benefits
• Right angle design allows for space-efficient installations
• 20A current rating supports substantial electrical loads
• Screw termination method offers secure connections
• Made from copper alloy for improved conductivity
• Black colour provides a neutral look for multiple environments
• 20A current rating supports substantial electrical loads
• Screw termination method offers secure connections
• Made from copper alloy for improved conductivity
• Black colour provides a neutral look for multiple environments
Applications
• Used for connecting power and control circuits
• Suitable for industrial automation projects
• Applicable in electrical distribution boards
• Employed in machinery wiring systems
• Appropriate for panel wiring in electrical enclosures
• Suitable for industrial automation projects
• Applicable in electrical distribution boards
• Employed in machinery wiring systems
• Appropriate for panel wiring in electrical enclosures
Can it handle high voltage applications?
Yes, it has a voltage rating of 400V.
Will it fit in standard mounting areas?
Yes, it is designed for through-hole mounting.
Can it be used with other types of connectors?
It is compatible with standard industrial electrical connectors.
