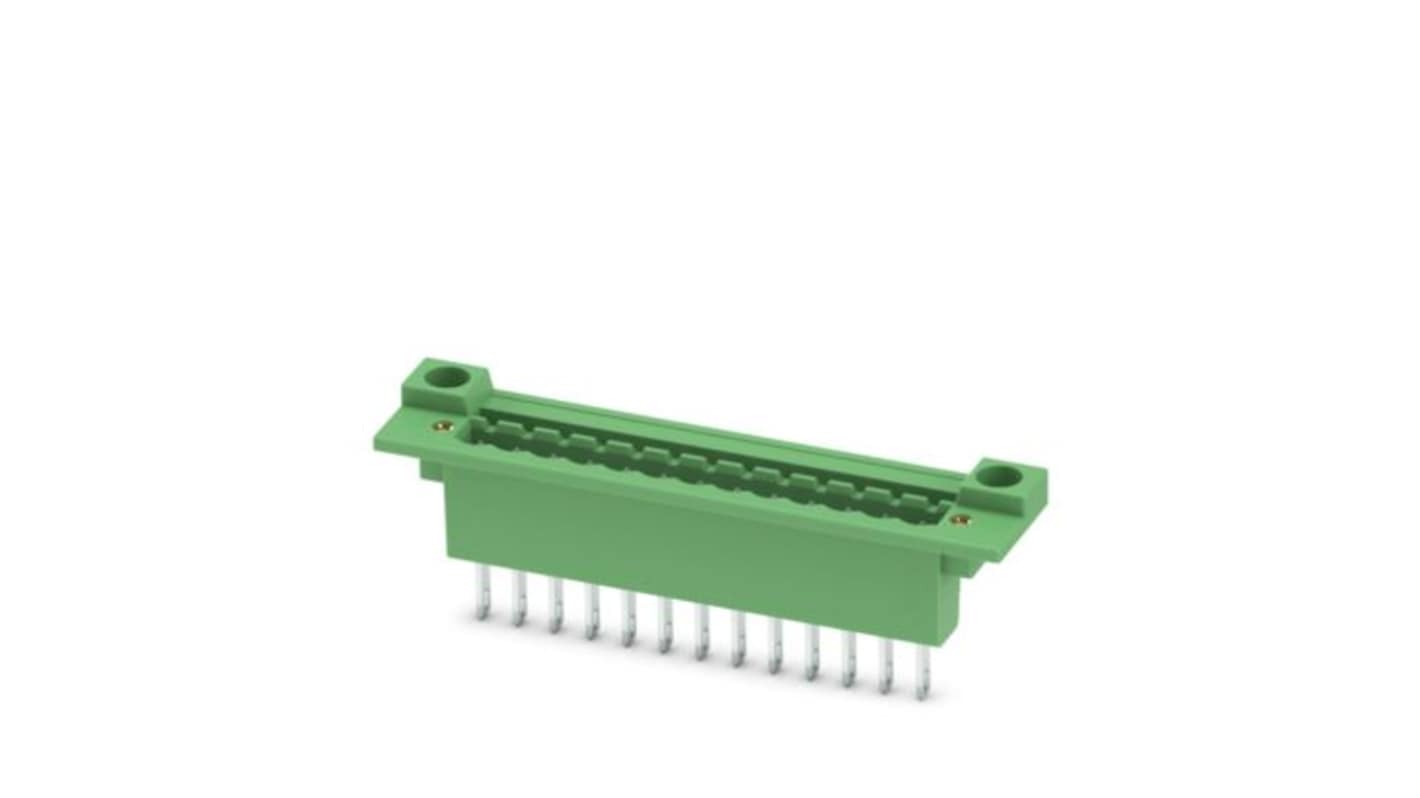

Phoenix Contact DFK-MSTB Series Threaded Pluggable Terminal Block, 13 Contact(s), 5 mm Pitch, 1 Row(s)

View all Pluggable Terminal Blocks

Subtotal (1 pack of 50 units)*

£716.06

(exc. VAT)

£859.27

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£716.06£14.321

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
557-401
Mfr. Part No.:
0710138
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Pluggable Terminal Block

Series

DFK-MSTB

Current

12A

Pitch

5mm

Housing Material

Polyamide

Number of Contacts

13

Number of Rows

1

Connector System

COMBICON MSTB 2.5

Mount Type

Threaded

Contact Material

Copper Alloy

Row Pitch

5mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Tail Pin Length

9.3mm

Maximum Operating Temperature

100°C

Standards/Approvals

UL 94 V0, RoHS, ISO 6988:1985-02, IEC 60664-1:2007-04, IEC 60512-3-1:2002-02, IEC 60512-15-1:2008-05, IEC 60512-13-5:2006-02, IEC 60512-1-2:2002-02, IEC 60512-1-1:2002-02, IEC 60068-2-70:1995-12, EN 60695-2-13, EN 60695-2-12, EN 60695-10-2

Mating Pin Length

9.3mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact feed-through header represents a remarkable advancement in the realm of electrical connectivity, specifically designed to accommodate diverse installation requirements. Crafted with a nominal cross section of 2.5 mm², it offers exceptional performance with a rated voltage of 320 V and a nominal current capacity of 12 A. The one-row, 13-position configuration enables efficient organisation of connections, while the innovative linear pinning ensures straightforward installation. Engineered for both solder and slip-on connection methods, this versatile header supports maximum flexibility in device design. Additionally, its screw locking mechanism adds superior mechanical stability, ideal for applications demanding resilience and reliability.

Optimises cable connectivity through an interior device layout

Allows for customised installation thanks to versatile connection technologies

Enhances mechanical stability with a robust screwable flange

Promotes efficient design with a compact footprint

Ensures compliance with WEEE or RoHS for environmentally conscious usage

Facilitates hassle-free assembly with easy direct mounting options
