Phoenix Contact Threaded Pluggable Terminal Block, 5 Contact(s), 5.08 mm Pitch, 1 Row(s)
- RS Stock No.:
- 557-330
- Mfr. Part No.:
- 0710206
- Brand:
- Phoenix Contact

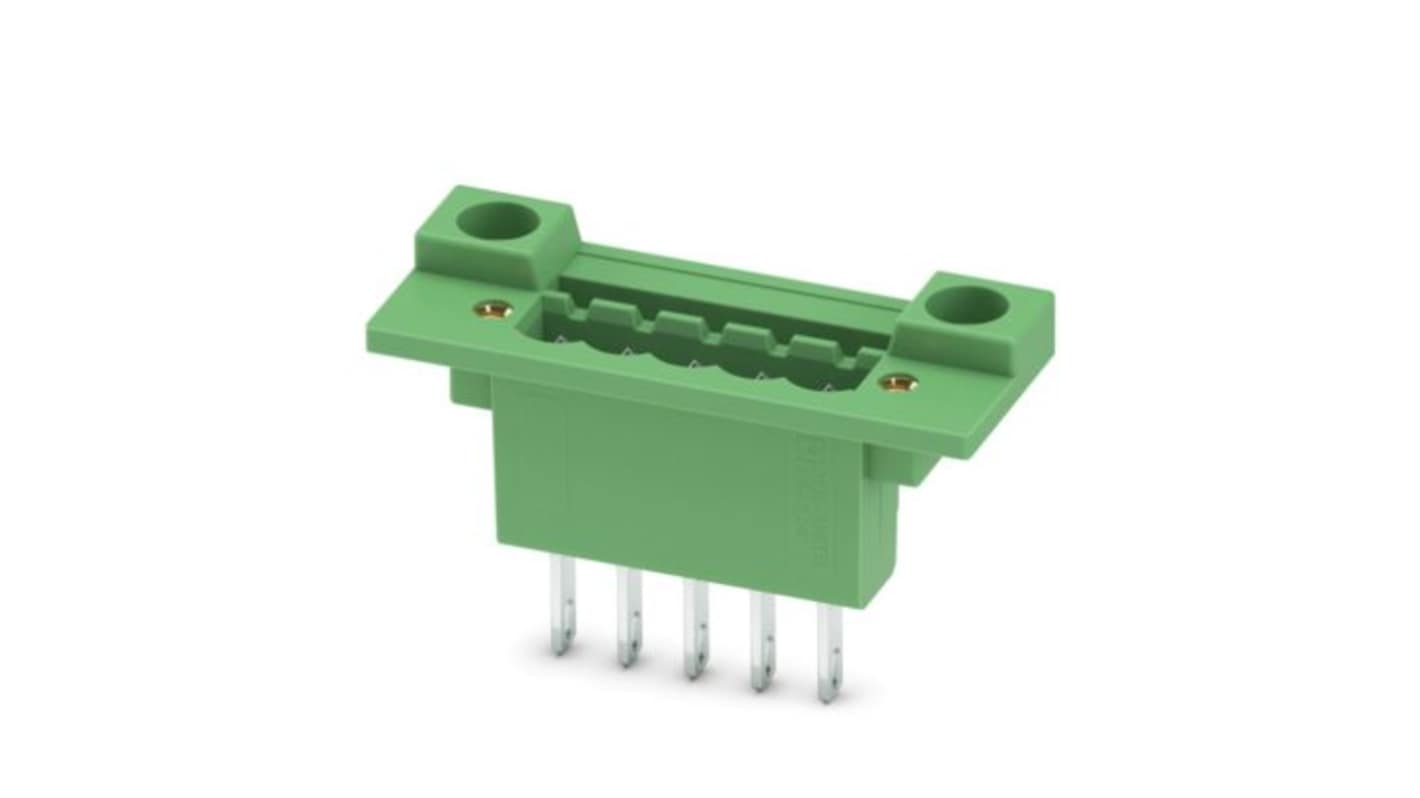

Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 557-330
- Mfr. Part No.:
- 0710206
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Current | 12A | |
| Pitch | 5.08mm | |
| Number of Contacts | 5 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Mount Type | Threaded | |
| Connector System | COMBICON MSTB 2.5 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Row Pitch | 5.08mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 9.3mm | |
| Mating Pin Length | 9.3mm | |
| Standards/Approvals | IEC 60664-1:2007-04, CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19931011, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-3-1:2002-02, VDE approval of drawings Approval ID: 40050648, IEC 60512-5-1:2002-02, IEC 60512-15-1:2008-05, ISO 6988:1985-02 | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Current 12A | ||
Pitch 5.08mm | ||
Number of Contacts 5 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Mount Type Threaded | ||
Connector System COMBICON MSTB 2.5 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Row Pitch 5.08mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 9.3mm | ||
Mating Pin Length 9.3mm | ||
Standards/Approvals IEC 60664-1:2007-04, CSA Approval ID: 13631, cULus Recognised Approval ID: E60425-19931011, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-3-1:2002-02, VDE approval of drawings Approval ID: 40050648, IEC 60512-5-1:2002-02, IEC 60512-15-1:2008-05, ISO 6988:1985-02 | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Feed-through header stands out as a versatile and reliable solution for your wiring needs. Designed for flexibility and optimal performance, this product accommodates various connection technologies, allowing you to choose between permanent solder connections and standardised slip-on connections. With a pitch of 5.08 mm and a capacity for five positions, it ensures efficient use of space while providing superior mechanical stability. The robust green housing is crafted from PA, ensuring durability in demanding environments. Its innovative design facilitates direct mounting, enhancing ease of installation in Compact spaces. Suitable for a wide range of applications, this feed-through header promises to Streamline your device connections with confidence.
Screw locking mechanism enhances connection reliability
Threaded flange allows for stable mounting
Solder pin length supports seamless integration
Free choice between connection methods empowers design flexibility
WEEE/RoHS compliant materials demonstrate commitment to sustainability
Robust design ensures high performance in extreme temperature ranges
Visual inspection passed, ensuring quality assurance
Linear pinning allows for straightforward circuit configuration
Versatile electrical properties cater to a variety of applications
Customs tariff number simplifies international shipping
