Phoenix Contact Threaded Pluggable Terminal Block, 8 Contact(s), 5 mm Pitch, 1 Row(s)
- RS Stock No.:
- 557-327
- Mfr. Part No.:
- 0710086
- Brand:
- Phoenix Contact

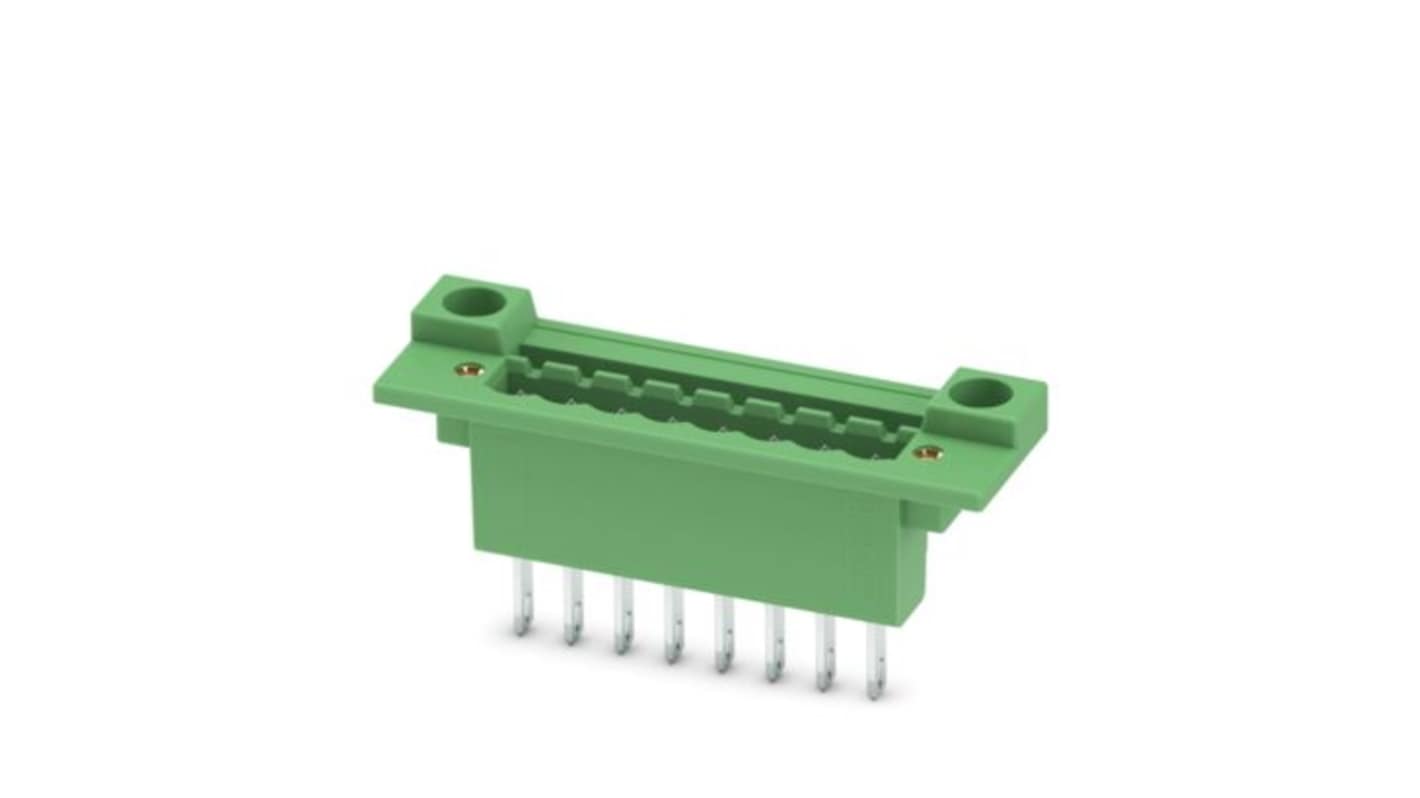

Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 557-327
- Mfr. Part No.:
- 0710086
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Connector System | COMBICON MSTB 2.5 | |
| Mount Type | Threaded | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Row Pitch | 5mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 9.3mm | |
| Mating Pin Length | 9.3mm | |
| Standards/Approvals | IEC 60068-2-70:1995-12, CSA, cULus, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, UL 94 V0, VDE | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Current 12A | ||
Housing Material Polyamide | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Connector System COMBICON MSTB 2.5 | ||
Mount Type Threaded | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Row Pitch 5mm | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 9.3mm | ||
Mating Pin Length 9.3mm | ||
Standards/Approvals IEC 60068-2-70:1995-12, CSA, cULus, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, UL 94 V0, VDE | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact feed-through header is engineered to facilitate seamless connections within various devices, showcasing a functional yet elegant design that aligns with modern manufacturing needs. With its robust construction and versatile application, this connector underlines the values of quality and reliability. Its green housing combines durability with an aesthetically pleasing look, ensuring that it integrates beautifully into any system. Users can benefit from simplified assembly, as well as the choice between permanent soldering or convenient slip-on setups. The careful attention to detail in its design promotes not just efficiency but also extended longevity for even the most demanding environments.
Offers multiple connection methods to adapt to diverse panel designs
Designed for easy direct mounting enhancing installation speed
Features a screw locking mechanism to ensure secure connections
Constructed from high quality materials compliant with WEEE/RoHS standards
Allows for various design solutions with its flexible pin layout
Impressive insulation properties contribute to safety in operation
Robust design assures reliability in extreme temperature ranges
