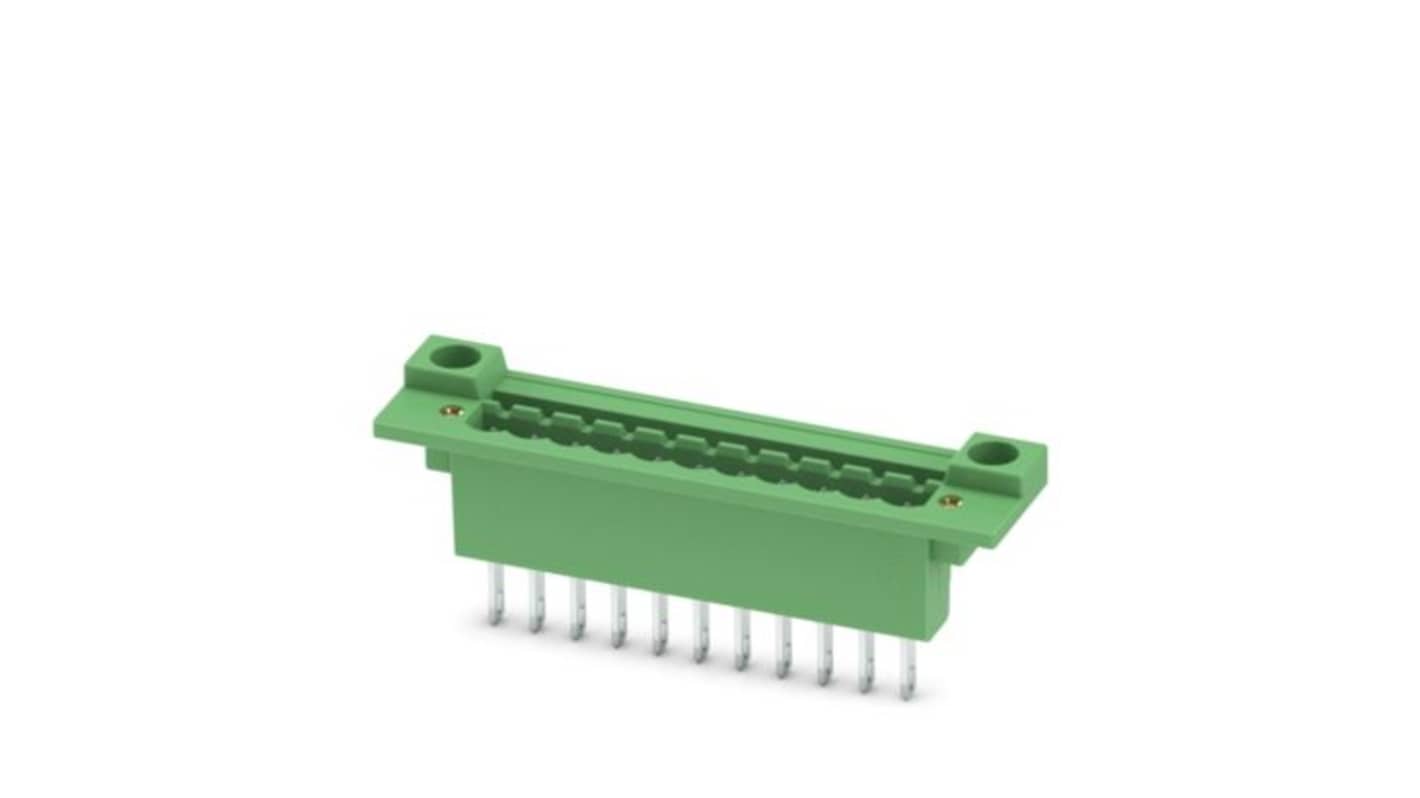

Phoenix Contact DFK-MSTB Series Threaded Pluggable Terminal Block, 11 Contact(s), 5.08 mm Pitch, 1 Row(s)
- RS Stock No.:
- 556-150
- Mfr. Part No.:
- 0710264
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£621.90
(exc. VAT)
£746.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £621.90 | £12.438 |
*price indicative
- RS Stock No.:
- 556-150
- Mfr. Part No.:
- 0710264
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Series | DFK-MSTB | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Number of Contacts | 11 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Mount Type | Threaded | |
| Connector System | COMBICON MSTB 2.5 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin over Nickel | |
| Row Pitch | 5.08mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 9.3mm | |
| Standards/Approvals | EN 60695-2-13, IEC 60068-2-70, EN 60695-2-12, IEC 60512-1-1, IEC 60512-1-2, EN 60695-10-2, IEC 60512-13-5, cULus E60425-19931011, IEC 60512-15-1, CSA 13631, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, UL 94 V0, VDE 40050648 | |
| Mating Pin Length | 9.3mm | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Series DFK-MSTB | ||
Pitch 5.08mm | ||
Current 12A | ||
Number of Contacts 11 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Mount Type Threaded | ||
Connector System COMBICON MSTB 2.5 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin over Nickel | ||
Row Pitch 5.08mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 9.3mm | ||
Standards/Approvals EN 60695-2-13, IEC 60068-2-70, EN 60695-2-12, IEC 60512-1-1, IEC 60512-1-2, EN 60695-10-2, IEC 60512-13-5, cULus E60425-19931011, IEC 60512-15-1, CSA 13631, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, UL 94 V0, VDE 40050648 | ||
Mating Pin Length 9.3mm | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Feed-through header is an innovative solution designed for efficient electrical connections within a compact footprint. Engineered with versatility in mind, it seamlessly integrates into various device designs, facilitating both permanent solder and standardized slip-on connections. The product champions flexibility, allowing for adaptable panel feed-through positioning, making it ideal for diverse application environments. Its robust construction ensures superior mechanical stability, while its thoughtful design promotes ease of installation. With a 5.08 mm pitch and a nominal current rating of 12 A, this feed-through header embodies reliability and performance, appealing to manufacturers seeking dependable connectivity solutions.
Designed for direct mounting to enhance installation efficiency
Offers a linear pin layout for straightforward connectivity
Constructed with RoHS-compliant materials for environmental safety
Features a sturdy threaded flange for stable panel integration
Provides a wide operational temperature range for diverse applications
Facilitates easy access for maintenance and troubleshooting
