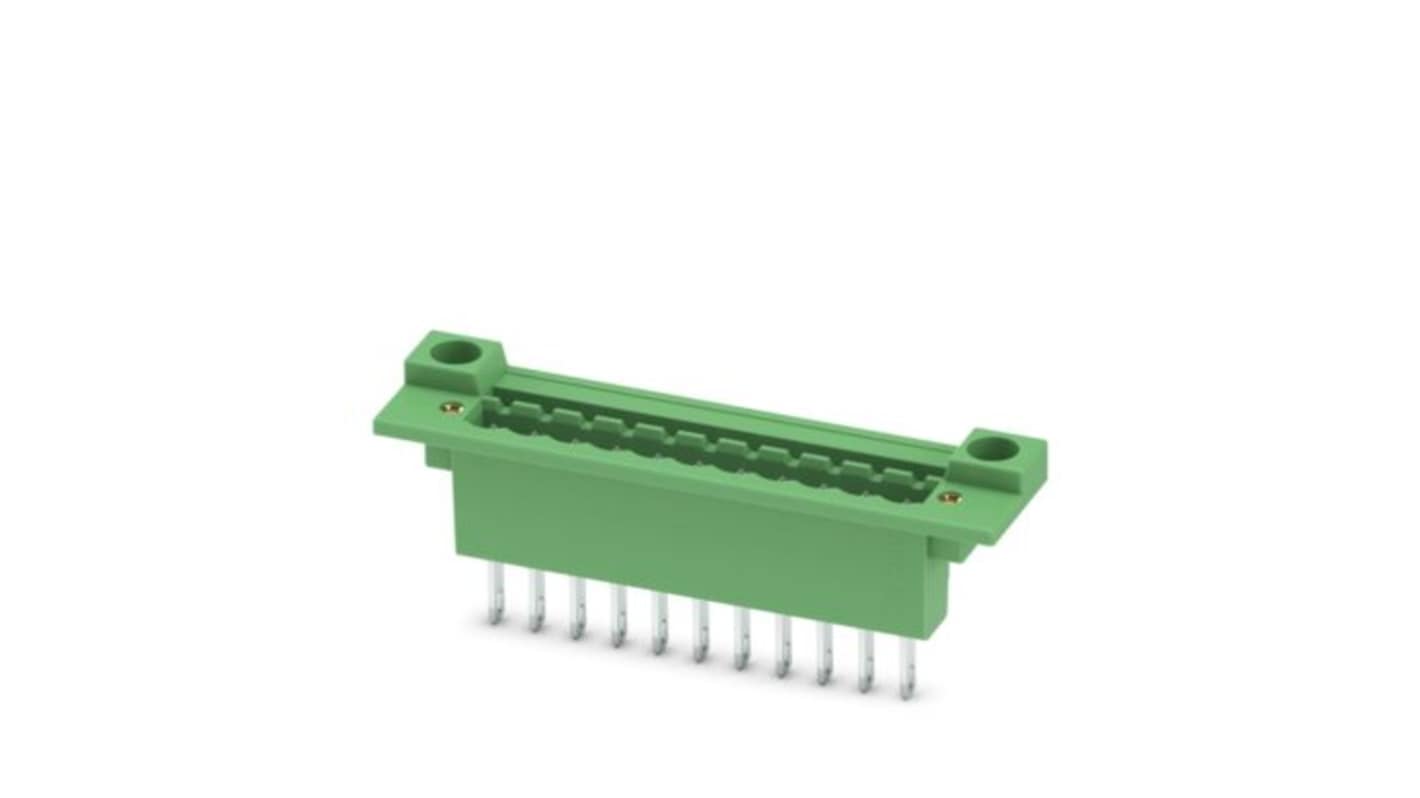

Phoenix Contact Threaded Pluggable Terminal Block, 11 Contact(s), 5 mm Pitch, 1 Row(s)
- RS Stock No.:
- 556-145
- Mfr. Part No.:
- 0710112
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£621.90
(exc. VAT)
£746.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £621.90 | £12.438 |
*price indicative
- RS Stock No.:
- 556-145
- Mfr. Part No.:
- 0710112
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Current | 12A | |
| Housing Material | Polyamide | |
| Number of Contacts | 11 | |
| Number of Rows | 1 | |
| Connector System | COMBICON MSTB 2.5 | |
| Mount Type | Threaded | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin over Nickel | |
| Row Pitch | 5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 9.3mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CSA, cULus, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE | |
| Mating Pin Length | 9.3mm | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Current 12A | ||
Housing Material Polyamide | ||
Number of Contacts 11 | ||
Number of Rows 1 | ||
Connector System COMBICON MSTB 2.5 | ||
Mount Type Threaded | ||
Contact Material Copper Alloy | ||
Contact Plating Tin over Nickel | ||
Row Pitch 5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 9.3mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CSA, cULus, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE | ||
Mating Pin Length 9.3mm | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Feed-through header is designed for seamless integration into various devices, providing reliable performance in demanding applications. Featuring a compact structure, it supports a nominal cross-section of 2.5 mm² and accommodates up to 11 connections. Its flexible mounting options, including a threaded flange, ensure excellent mechanical stability, while the combination of solder and slip-on connection methods offers additional versatility for different installation requirements. The robust green housing is engineered from durable PA material, ensuring it meets strict flammability and temperature resistance standards. Ideal for applications requiring high electrical stability, this product ensures uninterrupted connectivity, catering to a wide range of industrial environments.
Supports multiple connection technologies in a single header design
Mechanical stability enhanced by a screwable flange
Designed to facilitate flexible positioning of cable connections
Solder and slip-on connection options accommodate different installation preferences
Compliant with stringent flammability ratings for enhanced safety
Durable housing material provides protection in harsh conditions
Tested for reliability through extensive mechanical and electrical assessments
Suitable for use in a variety of industrial applications
