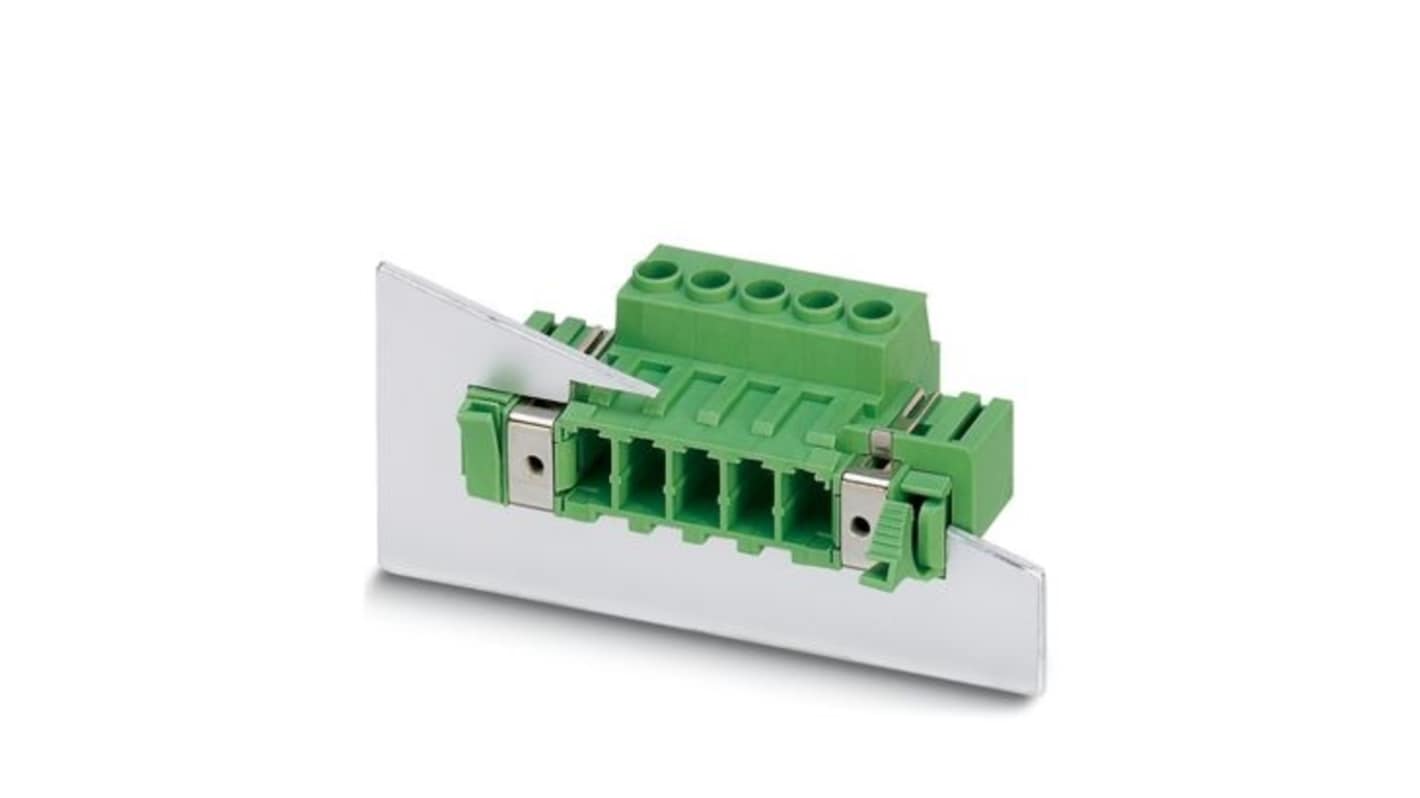

Phoenix Contact, 7.62mm Pitch, DFK, 12 Way, , Pluggable Terminal Block, Feed Through Plug, Screw, Screw Termination,
- RS Stock No.:
- 499-389
- Mfr. Part No.:
- 1716713
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£2,189.45
(exc. VAT)
£2,627.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £2,189.45 | £218.945 |
*price indicative
- RS Stock No.:
- 499-389
- Mfr. Part No.:
- 1716713
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Pluggable Terminal Block Type | Feed Through Plug | |
Number of Contacts | 12 | |
Pitch | 7.62mm | |
Series | DFK | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Mounting Type | Screw | |
Termination Method | Screw | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Pluggable Terminal Block Type Feed Through Plug | ||
Number of Contacts 12 | ||
Pitch 7.62mm | ||
Series DFK | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Screw | ||
Termination Method Screw | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Feed Through Connector, part of the DFK-PC 5/STF series, is engineered for efficient and reliable electrical connections. It features a nominal current rating of 32 A and is rated for up to 1000 V, ensuring robust performance in demanding applications. The integration of advanced materials, including a hot-dip tin-plated contact surface, enhances conductivity while reducing temperature rise during operation. With a compact pitch of 7.62 mm, the connector accommodates multiple wiring configurations, making it ideal for complex systems. Designed for compatibility with the COMBICON Connectors L product line, it simplifies installation while providing exceptional stability and mechanical endurance. This connector not only meets international compliance standards but also offers a secure and versatile solution for various industrial and electronic applications.
Low temperature rise ensures reliable performance
Screw locking mechanism offers enhanced mechanical stability
Screw connection with tension sleeve simplifies installation and maintenance
Supports the connection of two conductors enhancing versatility
Green insulating material not only meets aesthetic standards but is also environmentally friendly
Complies with strict electrical standards for safety and reliability
Compact design optimises space in tight application environments
Supports a wide range of conductor cross sections for diverse setups
Screw locking mechanism offers enhanced mechanical stability
Screw connection with tension sleeve simplifies installation and maintenance
Supports the connection of two conductors enhancing versatility
Green insulating material not only meets aesthetic standards but is also environmentally friendly
Complies with strict electrical standards for safety and reliability
Compact design optimises space in tight application environments
Supports a wide range of conductor cross sections for diverse setups
