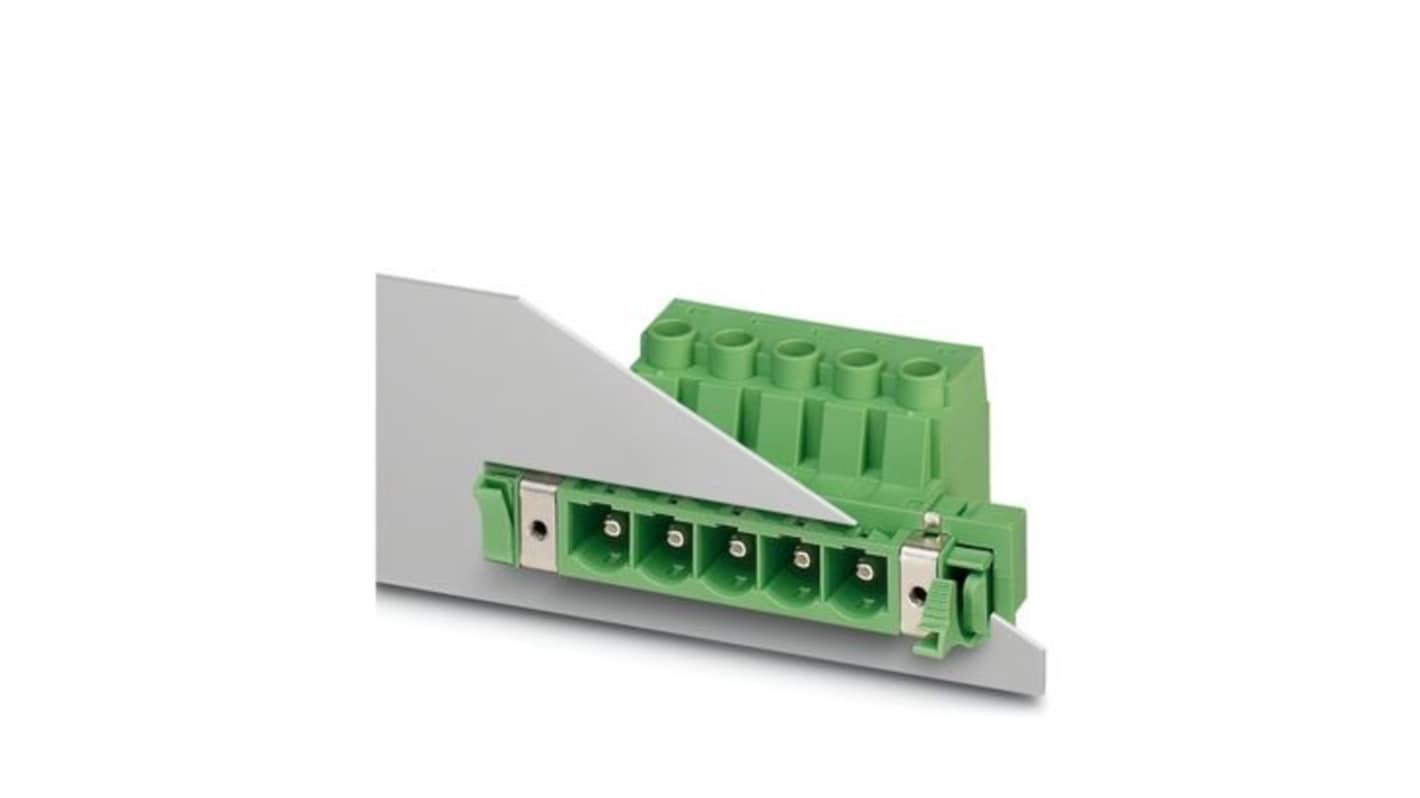

Phoenix Contact DFK Series Pluggable Terminal Block Headers & Socket, 9-Contact, 10.16 mm Pitch, Screw, 1 Row Screw
- RS Stock No.:
- 499-213
- Mfr. Part No.:
- 1703522
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£2,407.44
(exc. VAT)
£2,888.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £2,407.44 | £240.744 |
*price indicative
- RS Stock No.:
- 499-213
- Mfr. Part No.:
- 1703522
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 9 | |
| Product Type | Pluggable Terminal Block Headers & Socket | |
| Pitch | 10.16mm | |
| Current | 76A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Mount Type | Screw | |
| Orientation | Straight | |
| Termination Type | Screw | |
| Colour | Green | |
| Voltage | 1000 V | |
| Standards/Approvals | IEC 60512-1-1:2002-02, IEC 60068-2-70:1995-12, ISO 6988:1985-02, VDE, EN 60695-2-12, UL 94 V0, IEC 60512-5-1:2002-02, IEC 60512-13-5:2006-02, cULus Recognised, IEC 60-1:1-11, IEC 60512-3-1:2002-02, EN 60695-2-13, IEC 60512-1-2:2002-02, IEC 60112, IEC 60664-1:2007-04, EN 60695-10-2 | |
| Length | 44.1mm | |
| Width | 126.8 mm | |
| Series | DFK | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 9 | ||
Product Type Pluggable Terminal Block Headers & Socket | ||
Pitch 10.16mm | ||
Current 76A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Mount Type Screw | ||
Orientation Straight | ||
Termination Type Screw | ||
Colour Green | ||
Voltage 1000 V | ||
Standards/Approvals IEC 60512-1-1:2002-02, IEC 60068-2-70:1995-12, ISO 6988:1985-02, VDE, EN 60695-2-12, UL 94 V0, IEC 60512-5-1:2002-02, IEC 60512-13-5:2006-02, cULus Recognised, IEC 60-1:1-11, IEC 60512-3-1:2002-02, EN 60695-2-13, IEC 60512-1-2:2002-02, IEC 60112, IEC 60664-1:2007-04, EN 60695-10-2 | ||
Length 44.1mm | ||
Width 126.8 mm | ||
Series DFK | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Feed-through connector offers a reliable and efficient solution for high-performance electrical applications. Engineered with a nominal cross-section of 16 mm² and a robust screw connection method, this connector ensures maximum contact force while maintaining low temperature rise. Its innovative design allows for secure connection of up to two conductors and integrates effortlessly into various housing panel configurations. Crafted from quality materials, the connector meets rigorous safety standards, making it suitable for demanding environments. The compact dimensions and user-friendly features further enhance its appeal, ensuring ease of installation and operational reliability in a multitude of applications.
Designed for seamless integration into standard systems
Enables secure fixing through tool-free snap-in locking
Allows for reliable connections in challenging environments
Constructed from high-quality materials for durability
Facilitates ease of installation with a straightforward assembly process
