Phoenix Contact DFK-MSTB Series Threaded Pluggable Terminal Block, 13 Contact(s), 5.08 mm Pitch, 1 Row(s)
- RS Stock No.:
- 487-997
- Mfr. Part No.:
- 0710280
- Brand:
- Phoenix Contact

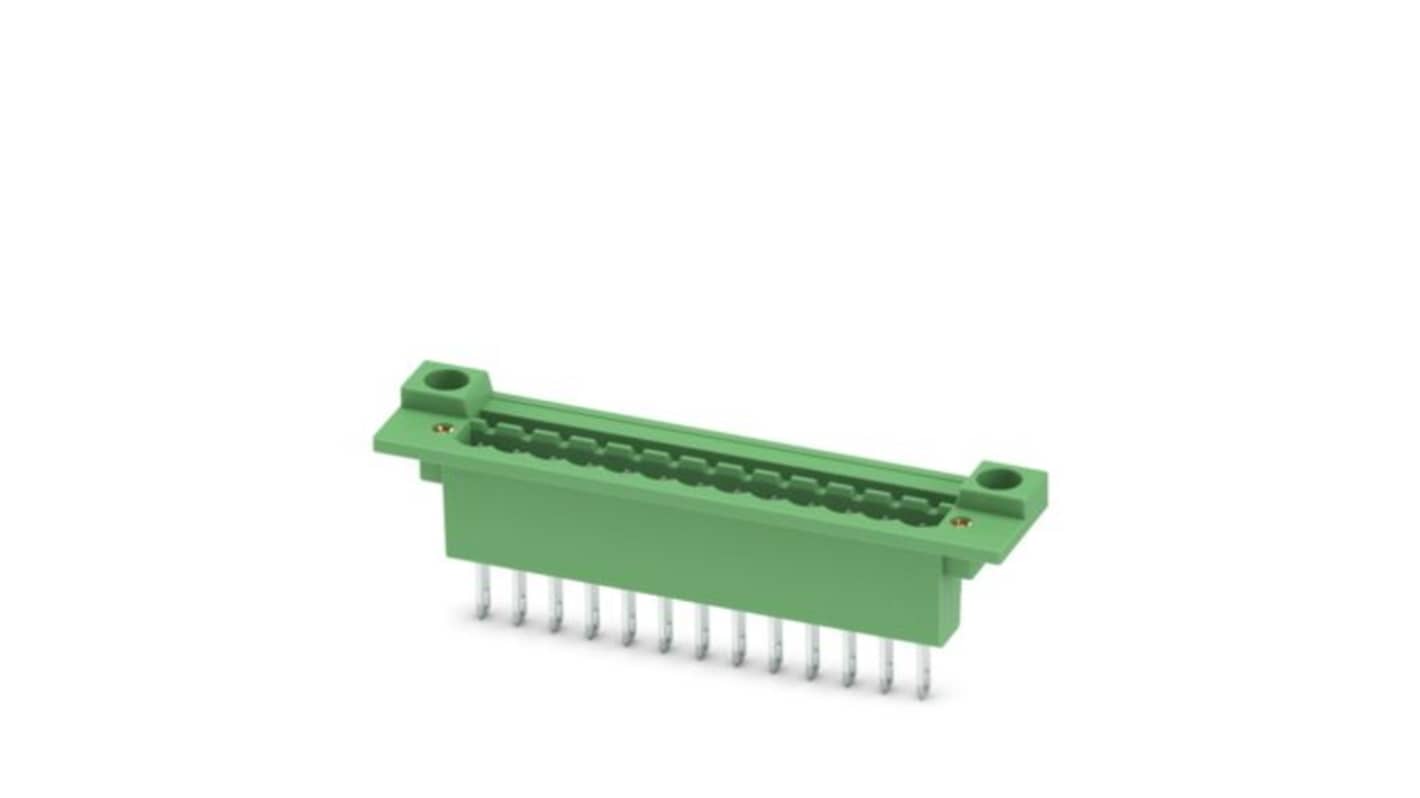

Image representative of range
Subtotal (1 pack of 50 units)*
£716.06
(exc. VAT)
£859.27
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 23 February 2026
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £716.06 | £14.321 |
*price indicative
- RS Stock No.:
- 487-997
- Mfr. Part No.:
- 0710280
- Brand:
- Phoenix Contact
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Series | DFK-MSTB | |
| Current | 12A | |
| Pitch | 5.08mm | |
| Housing Material | Polyamide | |
| Number of Contacts | 13 | |
| Number of Rows | 1 | |
| Mount Type | Threaded | |
| Connector System | COMBICON MSTB 2.5 | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 5.08mm | |
| Termination Type | Solder | |
| Tail Pin Length | 9.3mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | CSA Approval ID: 13631, cULus Approval ID: E60425-19931011, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, UL 94 V0, VDE Approval ID: 40050648 | |
| Mating Pin Length | 9.3mm | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Series DFK-MSTB | ||
Current 12A | ||
Pitch 5.08mm | ||
Housing Material Polyamide | ||
Number of Contacts 13 | ||
Number of Rows 1 | ||
Mount Type Threaded | ||
Connector System COMBICON MSTB 2.5 | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 5.08mm | ||
Termination Type Solder | ||
Tail Pin Length 9.3mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals CSA Approval ID: 13631, cULus Approval ID: E60425-19931011, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, UL 94 V0, VDE Approval ID: 40050648 | ||
Mating Pin Length 9.3mm | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
