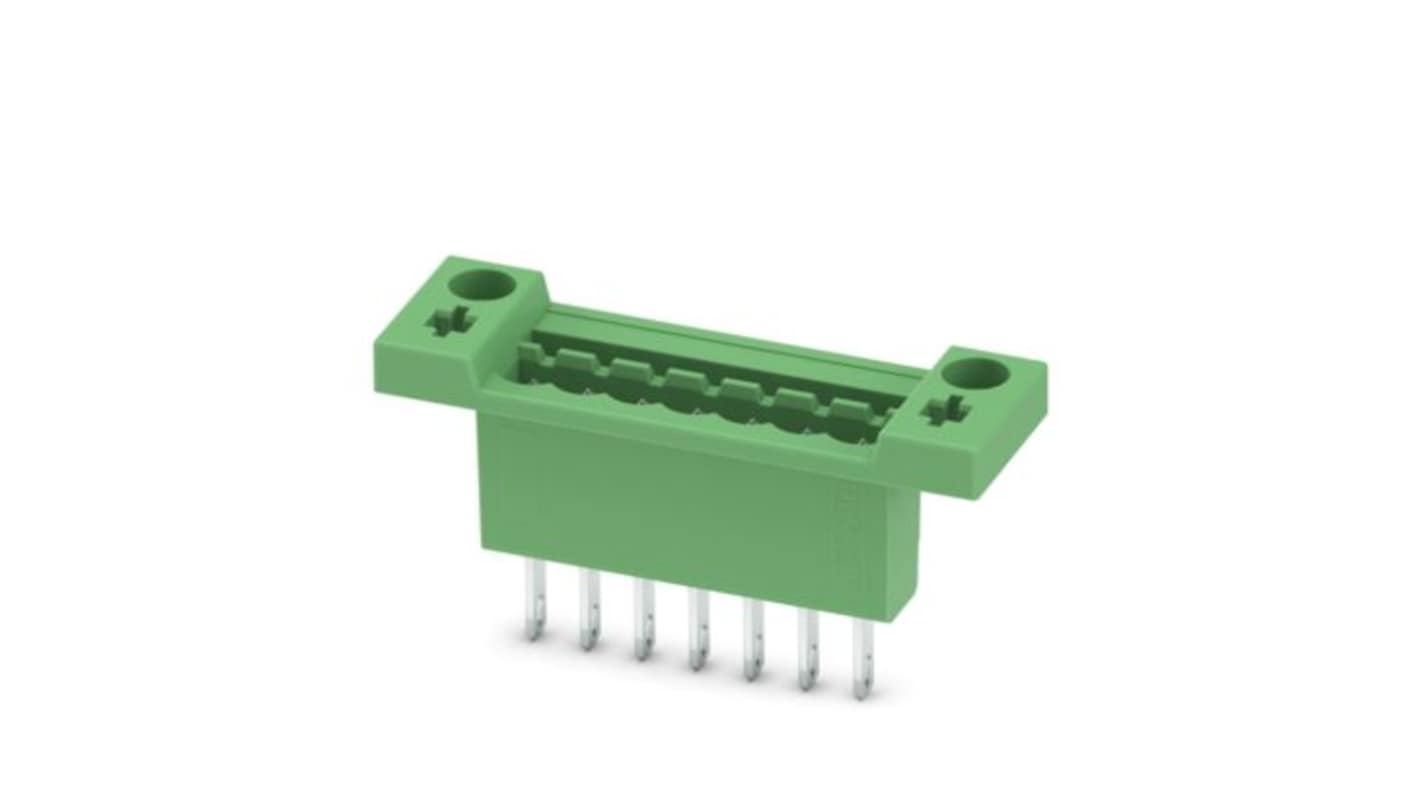

Phoenix Contact Feed Through Pluggable Terminal Block, 7 Contact(s), 5.08 mm Pitch, 1 Row(s)

Image representative of range

View all Pluggable Terminal Blocks

Subtotal (1 pack of 50 units)*

£332.01

(exc. VAT)

£398.41

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£332.01£6.64

*price indicative

Sponsored
Phoenix Contact jumper bars for terminals
Phoenix Contact
Phoenix Contact Jumper Bars
Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.
Buy Phoenix Contact Jumper Bars
RS Stock No.:
487-986
Mfr. Part No.:
0707293
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Pluggable Terminal Block

Pitch

5.08mm

Current

12A

Housing Material

Polyamide

Number of Contacts

7

Number of Rows

1

Mount Type

Feed Through

Connector System

COMBICON MSTB 2.5

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Row Pitch

5.08mm

Minimum Operating Temperature

-40°C

Termination Type

Solder

Maximum Operating Temperature

100°C

Tail Pin Length

9.3mm

Mating Pin Length

9.3mm

Standards/Approvals

IEC 60112, VDE 40050648, EN 60695-2-13, EN 60695-10-2, EN 60695-2-12, IEC 60068-2-82/JEDEC JESD 201, CSA 13631, IEC 60512-1-2:2002-02, cULus E60425-19931011, UL 94 V0, IEC 60512-1-1:2002-02, IEC 60664-1:2007-04, IEC 60512-3-1:2002-02, IEC 60512-15-1:2008-05, IEC 60512-13-5:2006-02, IEC 61984, IEC 60068-2-70:1995-12, EN ISO 22479:2022-06, IEC 60512-5-1:2002-02

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact feed through header designed to enhance the connectivity options within your devices. This high-quality component features a nominal cross section of 2.5 mm² and supports up to 12 A of current, making it Ideal for various demanding applications. Its Compact design is complemented by a linear pin layout and a pitch of 5.08 mm, which facilitate straightforward integration into your product. Furthermore, the connection method offers flexibility with solder or slip-on options. The header's robust construction is suitable for direct mounting, ensuring reliability and durability in rigorous environments, while meeting all relevant industry standards. Perfect for improving device design efficiency, this component grants users greater control over their connectivity needs.

Supports multiple connection technologies within a single header

Designed for easy integration with a linear pinning layout

Provides flexibility for solder or slip on connections

Crafted for direct mounting ensuring robust performance

Constructed to withstand a wide range of temperature conditions

Offers excellent electrical properties enhancing device reliability

Perfect for use in applications requiring Compact and efficient designs
