Phoenix Contact Feed Through Pluggable Terminal Block, 10 Contact(s), 5 mm Pitch, 1 Row(s)
- RS Stock No.:
- 487-984
- Mfr. Part No.:
- 0707170
- Brand:
- Phoenix Contact

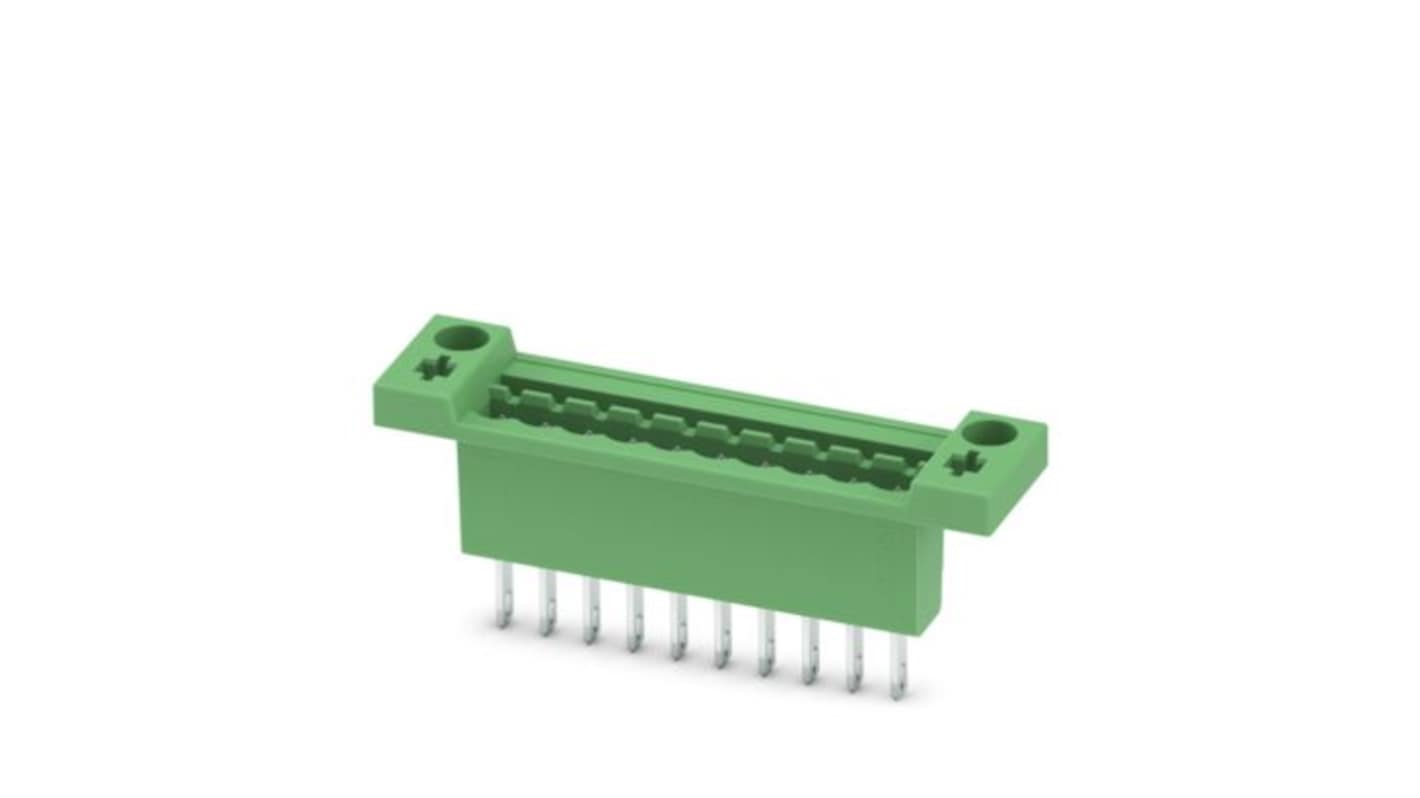

Image representative of range
Subtotal (1 pack of 50 units)*
£473.24
(exc. VAT)
£567.89
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £473.24 | £9.465 |
*price indicative
- RS Stock No.:
- 487-984
- Mfr. Part No.:
- 0707170
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Current | 12A | |
| Number of Contacts | 10 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Connector System | COMBICON MSTB 2.5 | |
| Mount Type | Feed Through | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 5mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 9.3mm | |
| Standards/Approvals | VDE, IEC 61984, cULus, CSA | |
| Mating Pin Length | 9.3mm | |
| Voltage | 32 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Current 12A | ||
Number of Contacts 10 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Connector System COMBICON MSTB 2.5 | ||
Mount Type Feed Through | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 5mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 9.3mm | ||
Standards/Approvals VDE, IEC 61984, cULus, CSA | ||
Mating Pin Length 9.3mm | ||
Voltage 32 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Feed-through header, offers a reliable solution for connecting devices in various applications. Its robust design allows for efficient cable connections, ensuring flexibility in device positioning while maintaining excellent electrical characteristics. With ten positions and a straightforward mounting method, this component is engineered to simplify integration into various configurations without compromising performance. The product's direct mounting feature and compatibility with standard connection technologies further enhance its versatility in diverse device designs.
Designed for high versatility in modular applications
Provides both solder and slip-on connection options
Allows for fast and straightforward installation
Features a Compact design that saves space in devices
Ensures maximum efficiency with minimal contact resistance
Suitable for use across a range of environmental conditions
Facilitates easy maintenance and replacement within systems
