Phoenix Contact DFK Series Screw Pluggable Terminal Block, 3 Contact(s), 10.16 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 487-526
- Mfr. Part No.:
- 1701948
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 487-526
- Mfr. Part No.:
- 1701948
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | DFK | |
| Product Type | Pluggable Terminal Block | |
| Current | 76A | |
| Pitch | 10.16mm | |
| Housing Material | Polyamide | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Screw | |
| Connector System | COMBICON PC 6 hybrid | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Screw | |
| Row Pitch | 10.16mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 4.1mm | |
| Mating Pin Length | 4.1mm | |
| Standards/Approvals | cULus, VDE, IEC 61984 | |
| Voltage | 1000 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series DFK | ||
Product Type Pluggable Terminal Block | ||
Current 76A | ||
Pitch 10.16mm | ||
Housing Material Polyamide | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Screw | ||
Connector System COMBICON PC 6 hybrid | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -40°C | ||
Termination Type Screw | ||
Row Pitch 10.16mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 4.1mm | ||
Mating Pin Length 4.1mm | ||
Standards/Approvals cULus, VDE, IEC 61984 | ||
Voltage 1000 V | ||
- COO (Country of Origin):
- PL

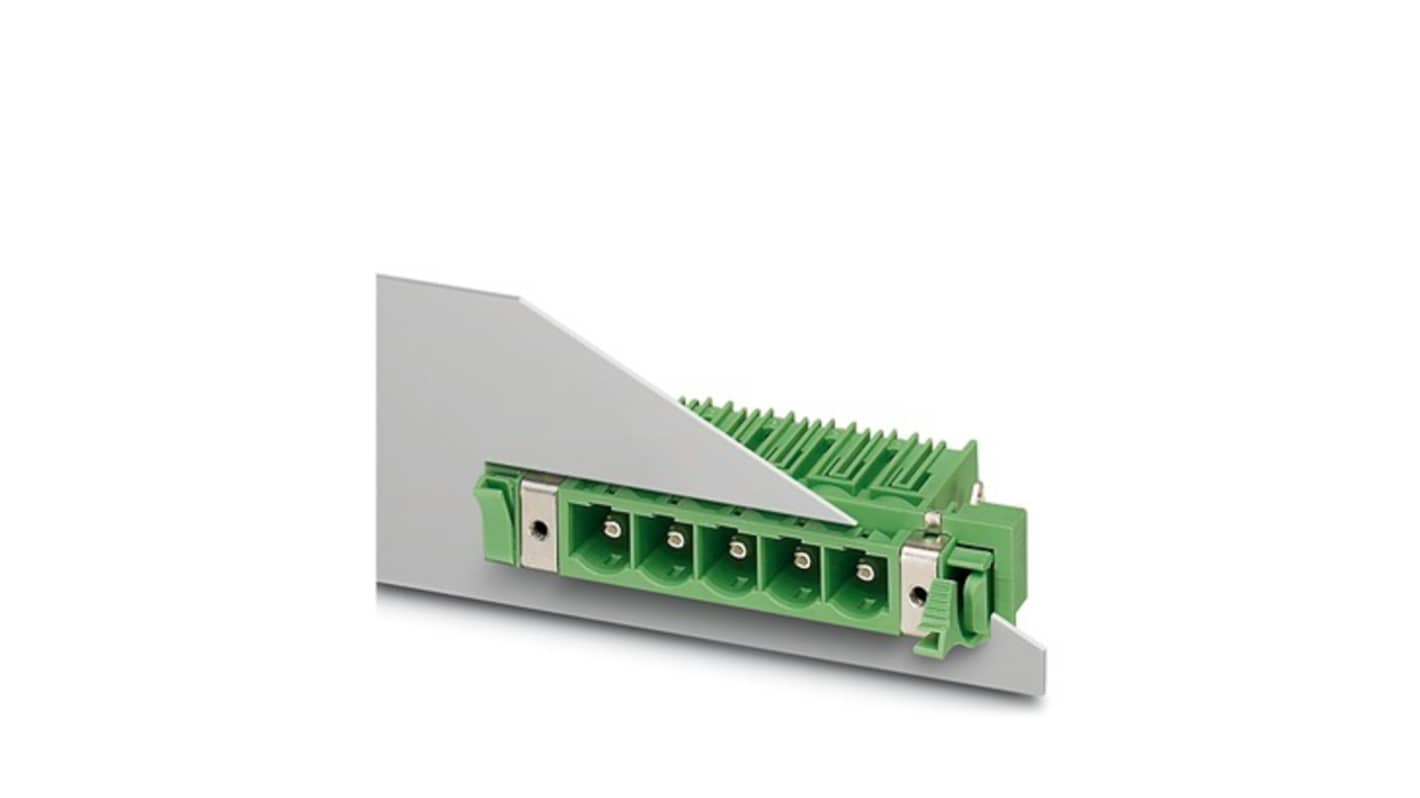

The Phoenix Contact Feed-through header is designed to integrate seamlessly into various applications, providing a secure and efficient connection solution. With its robust construction and reliable performance characteristics, this product enhances overall connection stability, making it ideal for demanding environments. The innovative flange system allows for secure fixing to housing panels, enabling tool-free snap-in locking or screw fastening. This versatility, combined with its standardised pin connector pattern alignment, ensures user-friendly operation and installation, drawing upon well-known mounting principles for broad applicability worldwide.
Accommodates shielded electrical properties, promoting superior signal integrity
Constructed from high-quality materials, ensuring durability even in extreme conditions
Designed for ease of connection with a linear pin layout, simplifying plug-in arrangements
Features a wave soldering mounting method that optimises production efficiency
Offers comprehensive environmental compliance, assuring adherence to industry standards
