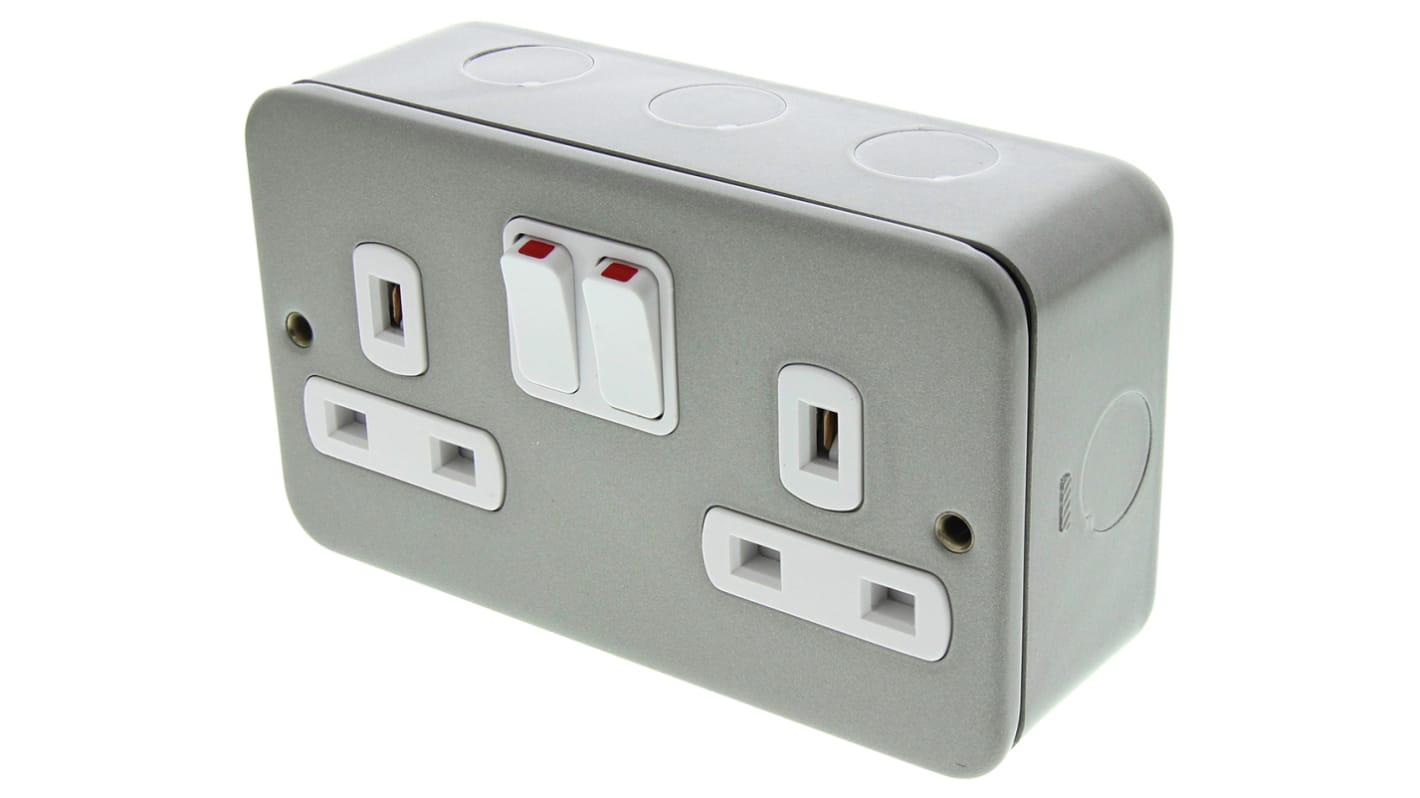

Deta 2 Gang Electrical Socket, 2 Poles, 13A, Type G - British, Indoor Use
- RS Stock No.:
- 776-2036
- Mfr. Part No.:
- M1209DP
- Brand:
- Deta
- RS Stock No.:
- 776-2036
- Mfr. Part No.:
- M1209DP
- Brand:
- Deta
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
13A Switched and Unswitched Metalclad Socket
This Deta Range of Metal clad sockets is very stylish and easy to install, with clear white terminal markings and colour coded terminals for easy identification. This Socket Outlets come with 1 gang and 2 gang, with either single or double Switches, or Unswitched. The Deta Metal Clad Sockets also features Funnel Terminals, making cable insertion extremely easy.
Supplied with Back Box
2 Gang Sockets have 2 earth terminals
Concave Rockers
Only one size 4mm Screwdriver needed
Clear white markings and Colour coded terminals for easy identification
Funnel terminal for easy cable insertion
Top facing terminal screws
Red flag switch indicator
Captive and backed out terminals
25 year guarantee
2 Gang Sockets have 2 earth terminals
Concave Rockers
Only one size 4mm Screwdriver needed
Clear white markings and Colour coded terminals for easy identification
Funnel terminal for easy cable insertion
Top facing terminal screws
Red flag switch indicator
Captive and backed out terminals
25 year guarantee
Standards
BS 1363 Part 2 : 1995
Deta Metalclad
Specifications
Attribute | Value |
|---|---|
| Number of Gangs | 2 |
| Switched | Yes |
| Socket Type | Type G - British |
| Indoor or Outdoor Use | Indoor |
| Mounting Style | Surface Mount |
| Current Rating | 13A |
| Voltage Rating | 230 V |
| Minimum Box Depth | 41mm |
| Overall Height | 78mm |
| Overall Width | 136mm |
| International Protection Rating | IP2X |
| Series | Metalclad |
| Switch Style | Rocker |
| Number of Poles | 2 |
| Faceplate Depth | 6mm |
| Faceplate Mounting Type | Screwed |
| Colour Family | Silver |
| Fixing Standard | BS |
| Earth Terminal | Yes |
