NTN 22220EAW33 Cylindrical 100 mm ID Spherical Bearing, 180 mm OD
- RS Stock No.:
- 454-702
- Mfr. Part No.:
- 22220EAW33
- Brand:
- NTN
Subtotal (1 unit)*
£289.93
(exc. VAT)
£347.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £289.93 |
*price indicative
- RS Stock No.:
- 454-702
- Mfr. Part No.:
- 22220EAW33
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Bearing | |
| Inside Diameter | 100mm | |
| Race Width | 46mm | |
| Bore Type | Cylindrical | |
| Roller Material | Steel | |
| Outside Diameter | 180mm | |
| Series | 22220 | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 4600rpm | |
| Internal Clearance | CN | |
| Static Load Rating | 495kN | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 472kN | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Bearing | ||
Inside Diameter 100mm | ||
Race Width 46mm | ||
Bore Type Cylindrical | ||
Roller Material Steel | ||
Outside Diameter 180mm | ||
Series 22220 | ||
Standards/Approvals RoHS | ||
Limiting Speed 4600rpm | ||
Internal Clearance CN | ||
Static Load Rating 495kN | ||
Number of Rows 2 | ||
Dynamic Load Rating 472kN | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT

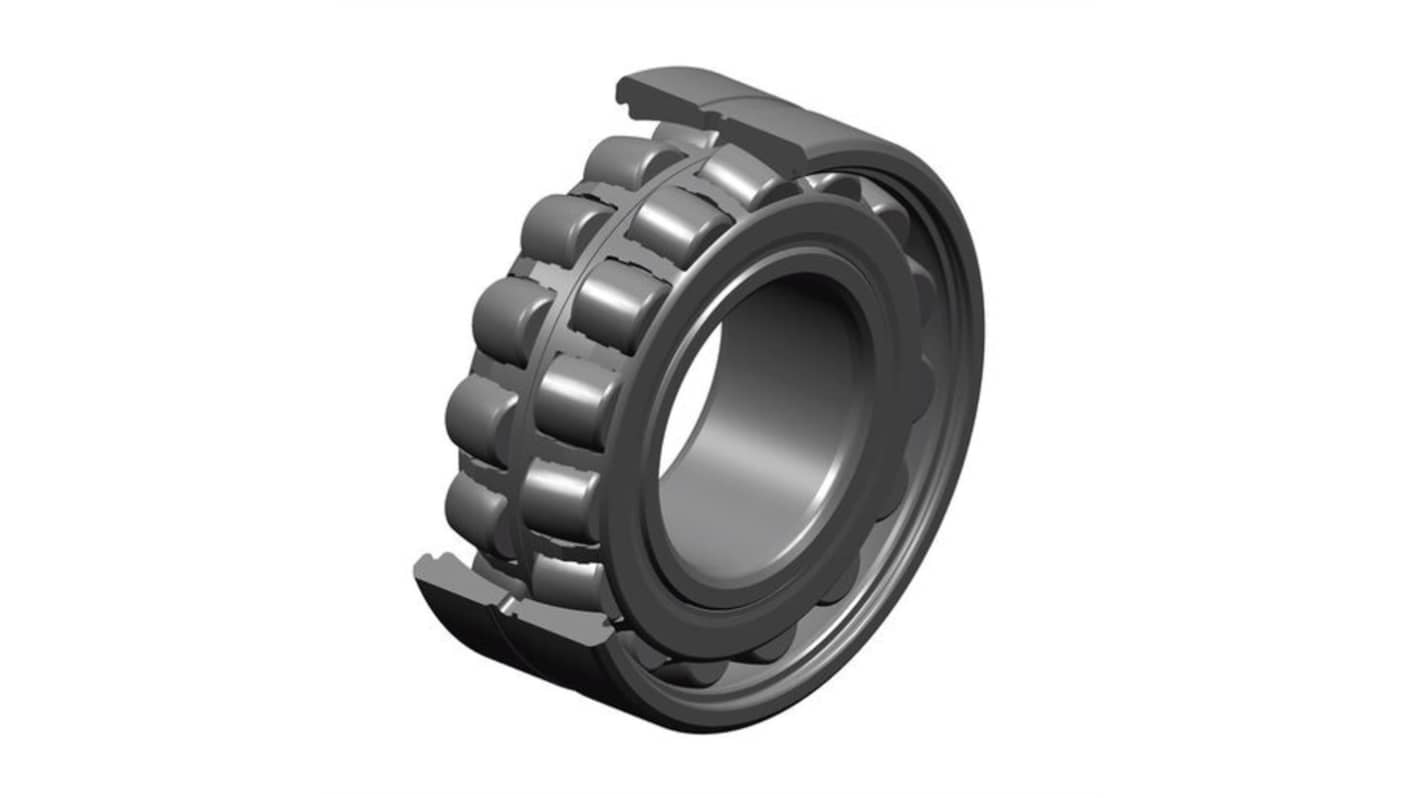

The NTN Spherical Roller Bearing withstands significant loads and misalignments. This type of roller bearing is well adapted to harsh operating conditions such as impacts or vibrations in crushers, vibrating screens, and heavy handling equipment. With the ULTAGE design, NTN offers, as standard, unsurpassed endurance and longevity.
High load bearing
Steel 100Cr6 rolling element material
