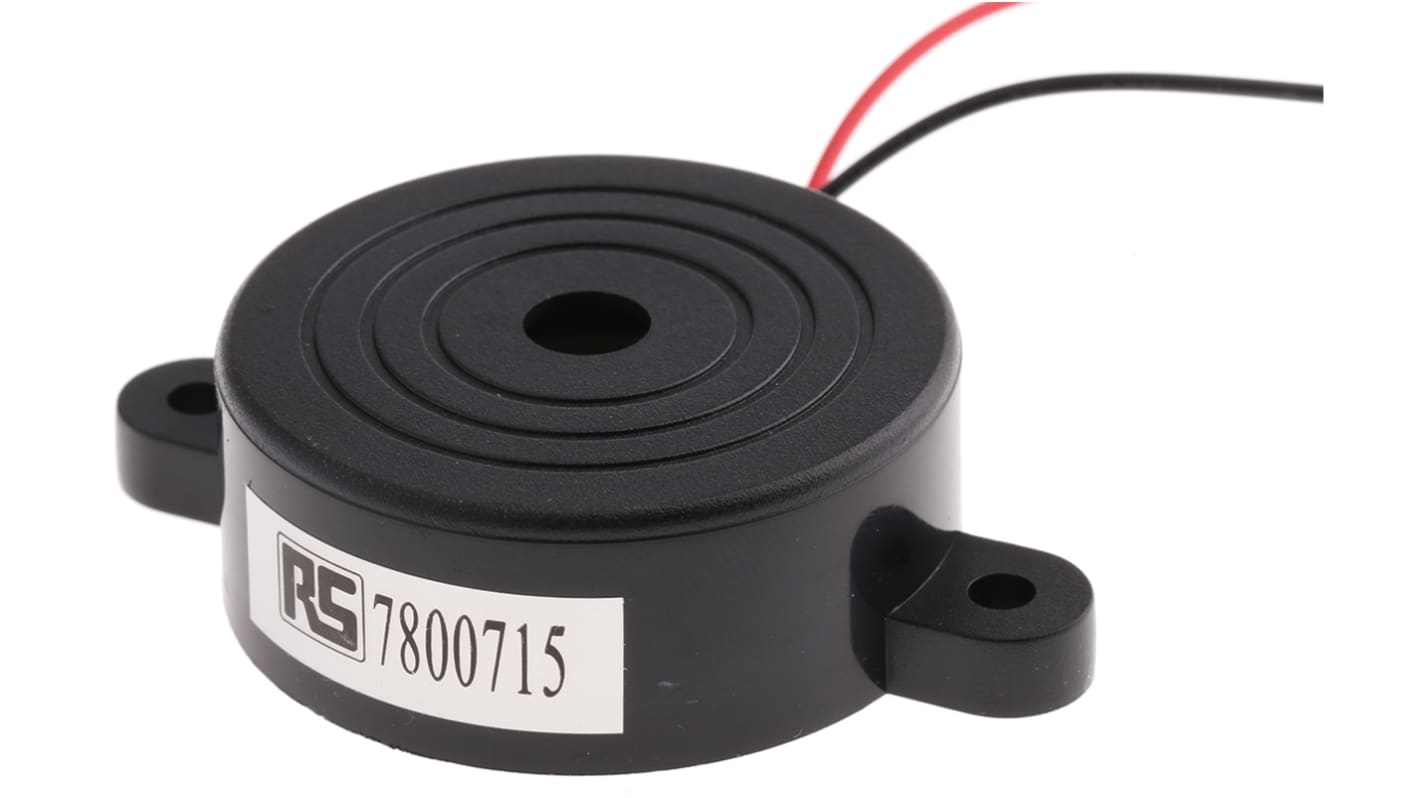

RS PRO 90dB Through Hole Continuous External Piezo Buzzer, 41.8 x 16mm, 1V ac Min, 30V ac Max

View all Piezo Buzzers
Bulk discount available

Subtotal 25 units (supplied in a bag)*

£48.85

(exc. VAT)

£58.625

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 870 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
25 - 45£1.954
50 - 95£1.812
100 - 245£1.668
250 +£1.526

*price indicative

Packaging Options:
RS Stock No.:
780-0715P
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Mounting Type

Through Hole

Minimum Supply Voltage

1V ac

Maximum Supply Voltage

30V ac

Sound Level

90dB

Drive Type

External

Tone Type

Continuous

Diameter

41.8mm

Length

60mm

Height

16mm

Dimensions

41.8 x 16mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Maximum Frequency

3.3kHz

Capacitance

35nF

Minimum Frequency

2300Hz

Supply Current

3mA

COO (Country of Origin):
CN

Flanged continuous tone buzzer flying lead


RS Pro 10mA/20VDC Piezo Buzzer with ABS housing with 28AWG flange mounted wire leads, 96dB sound level, 2.8kHz resonant frequency, PCB mount and continuous tone.

Features


Internal circuitry for dc operation
High output levels
Operating Temperature -20°C to +60°C
Flanged mounting buzzer
Flying lead connections

Applications


Audio Sensing and Instrumentation
