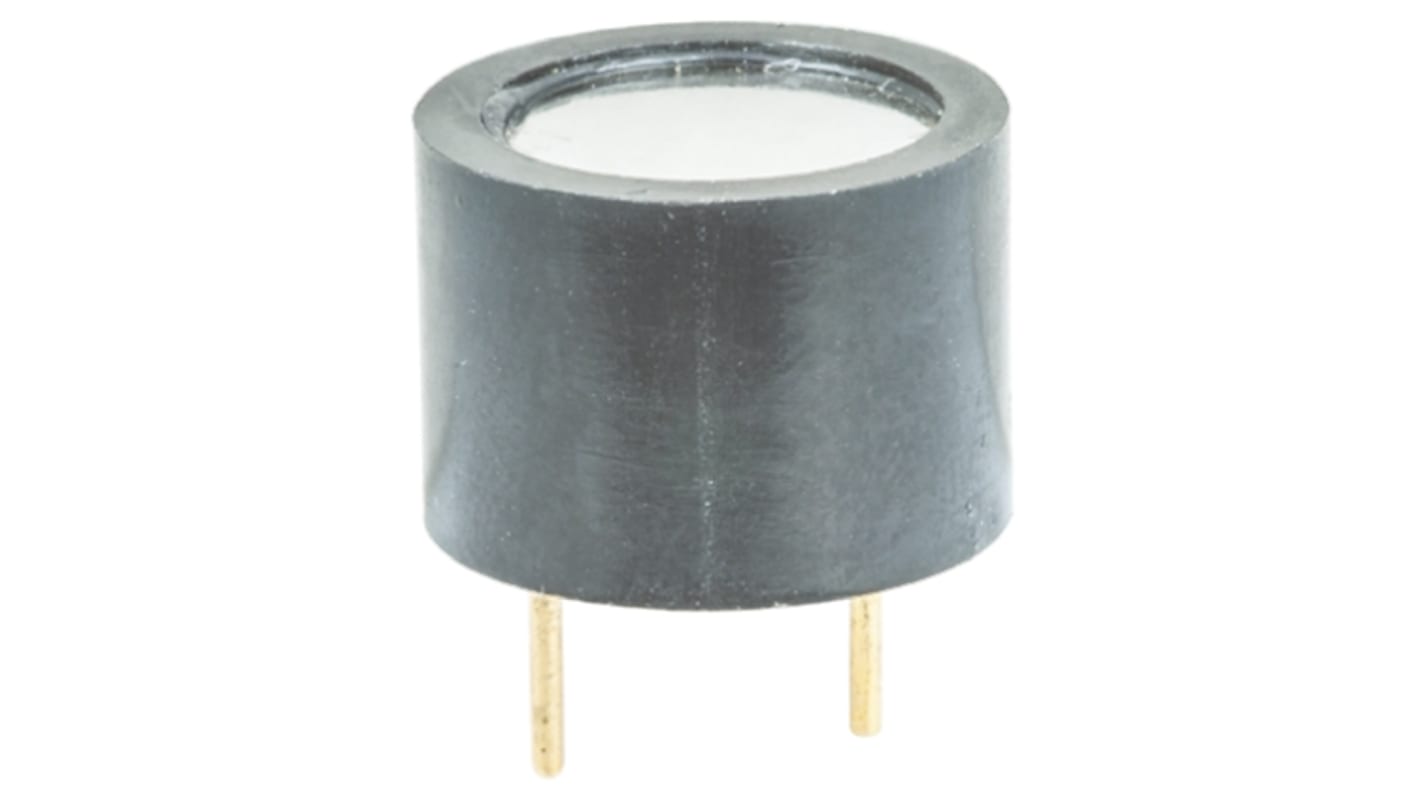

Kingstate 80dB Panel Mount Continuous Internal Piezo Buzzer, 14 x 10mm, 9V dc Min, 16V dc Max
- RS Stock No.:
- 771-6890
- Mfr. Part No.:
- KPEG244
- Brand:
- Kingstate
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 771-6890
- Mfr. Part No.:
- KPEG244
- Brand:
- Kingstate
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingstate | |
| Mounting Type | Panel Mount | |
| Minimum Supply Voltage | 9V dc | |
| Maximum Supply Voltage | 16V dc | |
| Sound Level | 80dB | |
| Drive Type | Internal | |
| Tone Type | Continuous | |
| Diameter | 14mm | |
| Height | 10mm | |
| Dimensions | 14 x 10mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +85°C | |
| Maximum Frequency | 5.5kHz | |
| Minimum Frequency | 4500Hz | |
| Supply Current | 35mA | |
Select all | ||
|---|---|---|
Brand Kingstate | ||
Mounting Type Panel Mount | ||
Minimum Supply Voltage 9V dc | ||
Maximum Supply Voltage 16V dc | ||
Sound Level 80dB | ||
Drive Type Internal | ||
Tone Type Continuous | ||
Diameter 14mm | ||
Height 10mm | ||
Dimensions 14 x 10mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +85°C | ||
Maximum Frequency 5.5kHz | ||
Minimum Frequency 4500Hz | ||
Supply Current 35mA | ||
Round PCB mount continuous tone buzzers
This is a range of high sound output piezo buzzers. They are suitable for PCB mounting and are housed in a circular case.
