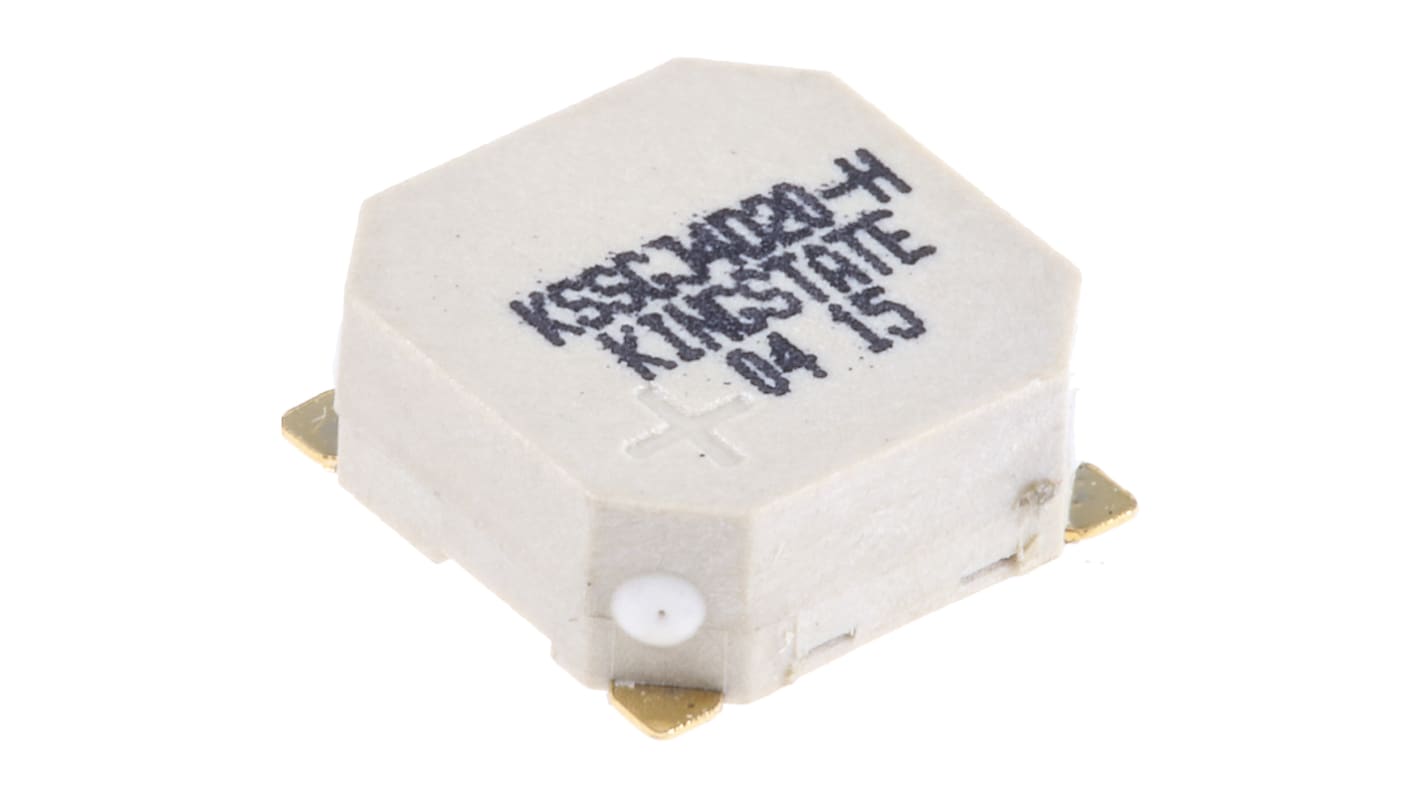

RS PRO 97dB SMD External Magnetic Buzzer Component, 8.5 x 8.5 x 3.2mm, 3V Min, 5V Max
- RS Stock No.:
- 754-2065P
- Brand:
- RS PRO
Bulk discount available
Subtotal 25 units (supplied on a continuous strip)*
£71.30
(exc. VAT)
£85.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 225 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 45 | £2.852 |
| 50 - 95 | £2.646 |
| 100 - 245 | £2.436 |
| 250 + | £2.23 |
*price indicative
- RS Stock No.:
- 754-2065P
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mounting Type | Surface Mount | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 5V | |
| Sound Level | 97dB | |
| Drive Type | External | |
| Height | 3.2mm | |
| Dimensions | 8.5 x 8.5 x 3.2mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +70°C | |
| Maximum Frequency | 3.1kHz | |
| Supply Current | 80mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mounting Type Surface Mount | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 5V | ||
Sound Level 97dB | ||
Drive Type External | ||
Height 3.2mm | ||
Dimensions 8.5 x 8.5 x 3.2mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +70°C | ||
Maximum Frequency 3.1kHz | ||
Supply Current 80mA | ||
- COO (Country of Origin):
- TW
Square SMT magnetic transducers
Square cased SMT magnetic transducers
High sound output
Requires external drive circuits to operate
High sound output
Requires external drive circuits to operate
