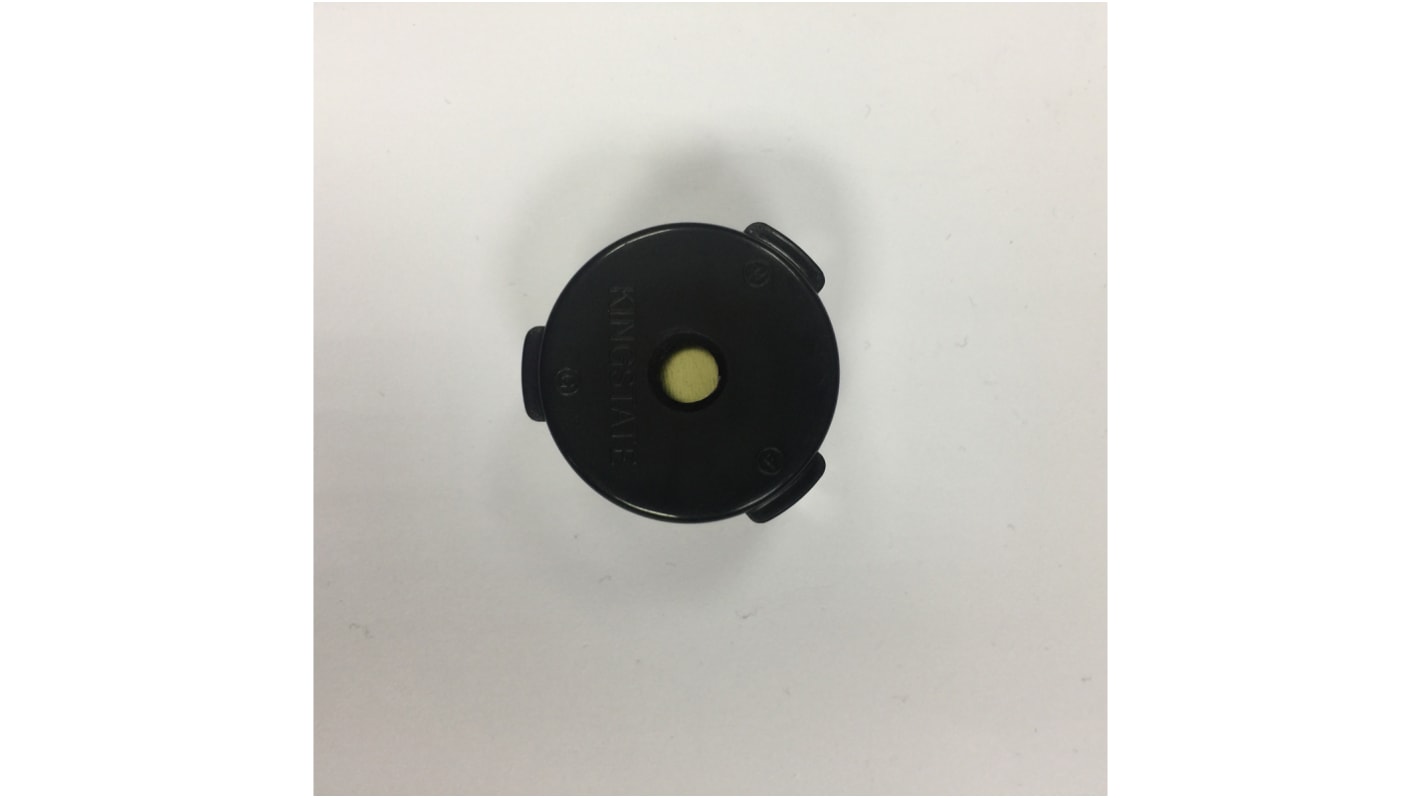

RS PRO 82dB Through Hole Continuous Piezo Buzzer, 30.0 (Dia.) x H10.0mm, 3V dc Min, 28V dc Max
- RS Stock No.:
- 181-2765
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 181-2765
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mounting Type | Through Hole | |
| Minimum Supply Voltage | 3V dc | |
| Maximum Supply Voltage | 28V dc | |
| Sound Level | 82dB | |
| Tone Type | Continuous | |
| Diameter | 30mm | |
| Height | 10mm | |
| Dimensions | 30.0 (Dia.) x H10.0mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Supply Current | 7mA | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Mounting Type Through Hole | ||
Minimum Supply Voltage 3V dc | ||
Maximum Supply Voltage 28V dc | ||
Sound Level 82dB | ||
Tone Type Continuous | ||
Diameter 30mm | ||
Height 10mm | ||
Dimensions 30.0 (Dia.) x H10.0mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Supply Current 7mA | ||
- COO (Country of Origin):
- CN
The RS PRO Piezo Buzzer audio Indicator has Operating temperature range of -20°C to +60°C and voltage range of 3V dc to 28V dc. The material used for buzzer is ABS UL-94 1/16” HB and it has Pin type terminal.
Sound Level 82dB
Tone Type Continuous
Diameter 30mm
Height 10mm
Tone Type Continuous
Diameter 30mm
Height 10mm
