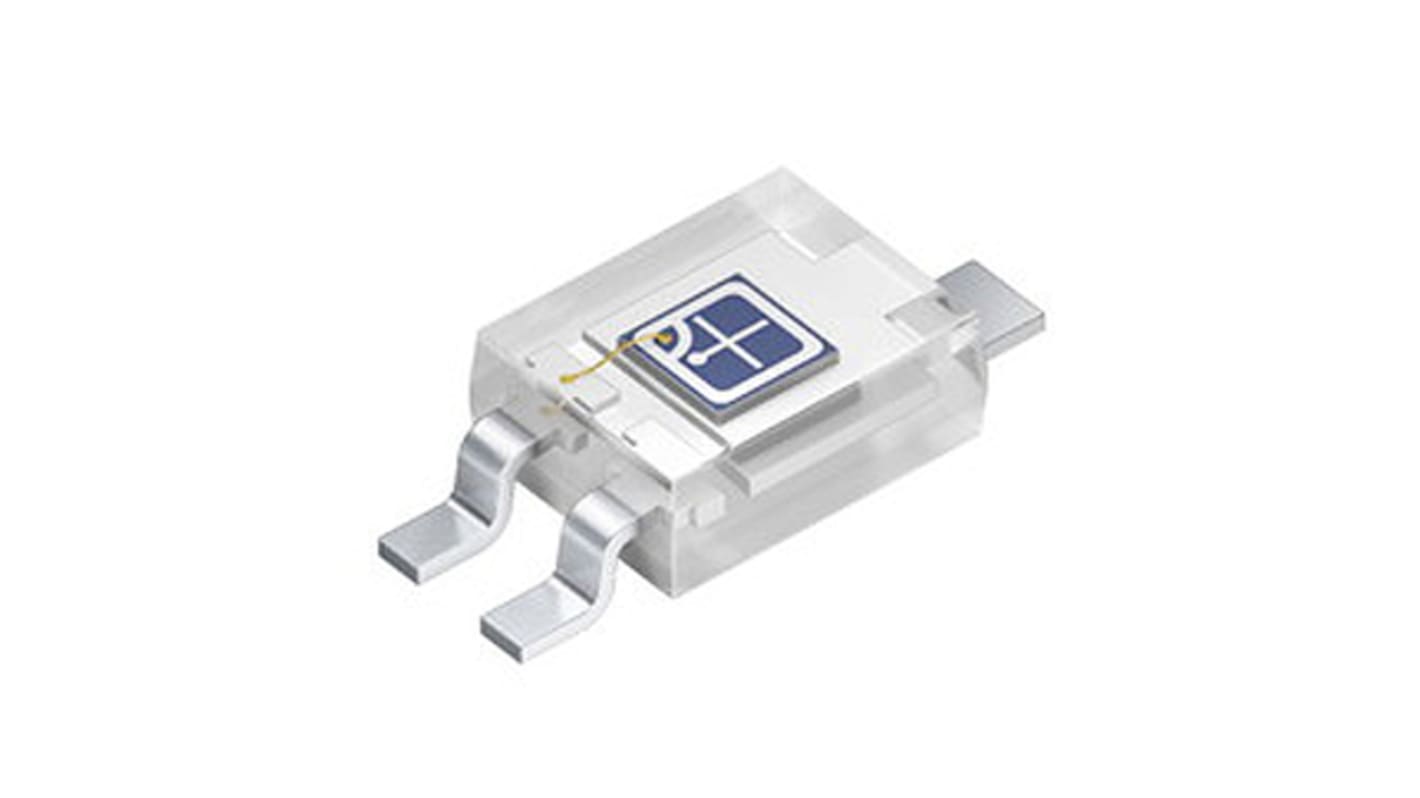

SFH 3400-2/3-Z ams OSRAM, 120 ° IR + Visible Light Phototransistor, Surface Mount 3-Pin DIP package
- RS Stock No.:
- 168-5320
- Mfr. Part No.:
- SFH 3400-2/3-Z
- Brand:
- ams OSRAM
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (On a Reel of 2000)
£0.362
(exc. VAT)
£0.434
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2000 - 2000 | £0.362 | £724.00 |
| 4000 + | £0.341 | £682.00 |
| *price indicative | ||
- RS Stock No.:
- 168-5320
- Mfr. Part No.:
- SFH 3400-2/3-Z
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
Product Details
Phototransistor Smart DIL Package
2.7 x 2.1 x 1.1 mm package size
High linearity
High linearity
Phototransistors, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Typical Fall Time | 24µs |
| Typical Rise Time | 24µs |
| Number of Channels | 1 |
| Maximum Light Current | 2600µA |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 3 |
| Mounting Type | Surface Mount |
| Package Type | DIP |
| Dimensions | 2.1 x 2.7 x 1.05mm |
| Collector Current | 50mA |
| Maximum Wavelength Detected | 1080nm |
| Minimum Wavelength Detected | 460nm |
| Spectral Range of Sensitivity | 460 → 1080 nm |
| Length | 2.1mm |
| Height | 1.05mm |
| Width | 2.7mm |
