RS PRO Through Beam Photoelectric Sensor, Fork Sensor, 30 mm Detection Range
- RS Stock No.:
- 903-3936
- Brand:
- RS PRO
67 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price Each
£63.39
(exc. VAT)
£76.07
(inc. VAT)
| Units | Per unit |
| 1 + | £63.39 |
- RS Stock No.:
- 903-3936
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

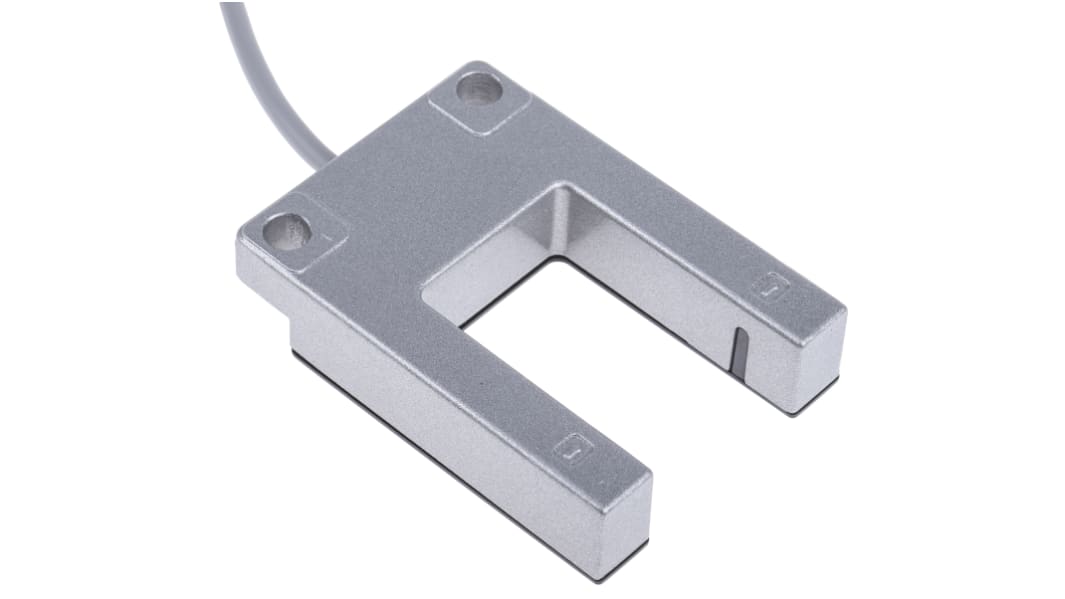

RS PRO Through Beam (Fork) Photoelectric Sensor with Fork Sensor, 30 mm Detection Range
Looking for a through-beam sensor for detecting objects? Choose this fork-style photoelectric sensor from RS PRO. It's easy to use as it features U-shaped photoelectric sensors with LED (light-emitting diode) indicators.
The sensor's housing is made of an aluminium alloy material, so it's strong and resistant to corrosion. It's also well-suited to outdoor installations as it has an Ingress Protection (IP) rating of IP67. This means it's dust-tight and can withstand submersion in one metre of water for up to 30 minutes. For added safety in the event of faulty wiring, the device will cut power to the transmitter's sensitive electronic circuits for protection against reverse polarity.
The sensor's housing is made of an aluminium alloy material, so it's strong and resistant to corrosion. It's also well-suited to outdoor installations as it has an Ingress Protection (IP) rating of IP67. This means it's dust-tight and can withstand submersion in one metre of water for up to 30 minutes. For added safety in the event of faulty wiring, the device will cut power to the transmitter's sensitive electronic circuits for protection against reverse polarity.
Features and Benefits
- Detection range of 30 mm
- Through-beam (fork) detection type
- 4-wire electrical connection
- Cable length of 2 m
- Aluminium alloy housing material
- Ingress Protection (IP) rating of IP67
- Infrared light source
- Maximum current of 15 mA
- Maximum DC voltage of 30 V
- Maximum operating temperature of +55°C
- Minimum operating temperature of -15°C
- Panel mounting type
- LED (light-emitting diode) optical technology
- PNP (Positive Negative Positive) NO (Normally Open) output type
- Response time of less than 1 ms
- Fork sensor style
- Meets CE (Conformité Européenne) and IEC (International Electrotechnical Commission) standards
- Pre-wired terminal type
Specifications
Attribute | Value |
|---|---|
| Sensor Style | Fork |
| Detection Type | Through Beam |
| Detection Range | 30 mm |
| Output Type | PNP NONC |
| Switching Mode | Light / Dark switching |
| Electrical Connection | 2m Cable |
| Maximum DC Voltage | 30V |
| Terminal Type | Pre-Wired |
| Light Source | Infrared LED |
| IP Rating | IP67 |
| Maximum Current | 15mA |
| Response Time | ＜1ms |
| Mounting Type | Panel Mount |
| Housing Material | Aluminium Alloy |
| Series | PU30 |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -15°C |
| Standards Met | CE, IEC |
