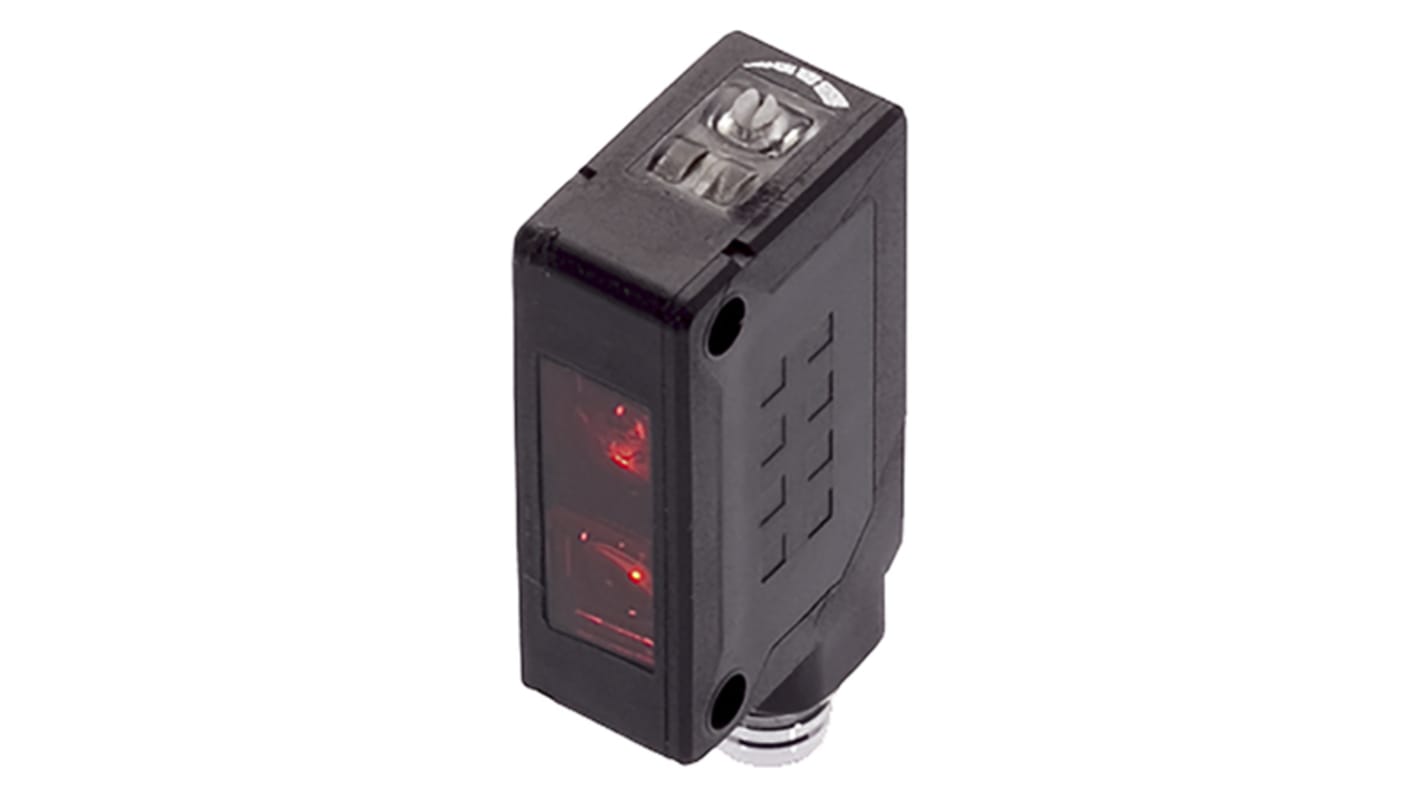

BALLUFF Diffuse Photoelectric Sensor, Block Sensor, 50 mm → 200 mm Detection Range
- RS Stock No.:
- 902-7013
- Mfr. Part No.:
- BOS 5K-PS-RD11-S75
- Brand:
- BALLUFF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£71.44
(exc. VAT)
£85.73
(inc. VAT)
- RS Stock No.:
- 902-7013
- Mfr. Part No.:
- BOS 5K-PS-RD11-S75
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Sensor Style | Block | |
| Detection Type | Diffuse | |
| Detection Range | 50 mm → 200 mm | |
| Output Type | PNP | |
| Electrical Connection | M8 4 Pin Connector | |
| Maximum DC Voltage | 30V | |
| Terminal Type | Connector | |
| Light Source | LED | |
| IP Rating | IP67 | |
| Maximum Current | 100 mA | |
| Response Time | 1 ms | |
| Minimum Operating Temperature | -25°C | |
| Series | BOS 5K | |
| Housing Material | PBT, PC | |
| Mounting Type | Panel Mount | |
| Maximum Operating Temperature | +55°C | |
| Standards Met | CE, cULus | |
Select all | ||
|---|---|---|
Brand BALLUFF | ||
Sensor Style Block | ||
Detection Type Diffuse | ||
Detection Range 50 mm → 200 mm | ||
Output Type PNP | ||
Electrical Connection M8 4 Pin Connector | ||
Maximum DC Voltage 30V | ||
Terminal Type Connector | ||
Light Source LED | ||
IP Rating IP67 | ||
Maximum Current 100 mA | ||
Response Time 1 ms | ||
Minimum Operating Temperature -25°C | ||
Series BOS 5K | ||
Housing Material PBT, PC | ||
Mounting Type Panel Mount | ||
Maximum Operating Temperature +55°C | ||
Standards Met CE, cULus | ||
- COO (Country of Origin):
- JP
BOS Diffuse Proximity Rectangular Sensors
The photoelectric sensors from BALLUFF BOS range use diffuse proximity technology to detect if an object moves within the sensing range. The sensor emits a light beam which reflects of the object in its path, when the object moves within the sensing range the light will reflect back at the correct angle to hit the receiver unit triggering activation of the sensor. Diffuse photoelectric sensors are used in industrial environments for applications where accurate proximity detection of metal or non-mental objects is essential.
Pre cabled or connector
Rectangular body
3 wire and 4 wire DC configuration
Short-circuit protected
Polarity reversal protected
Rectangular body
3 wire and 4 wire DC configuration
Short-circuit protected
Polarity reversal protected
