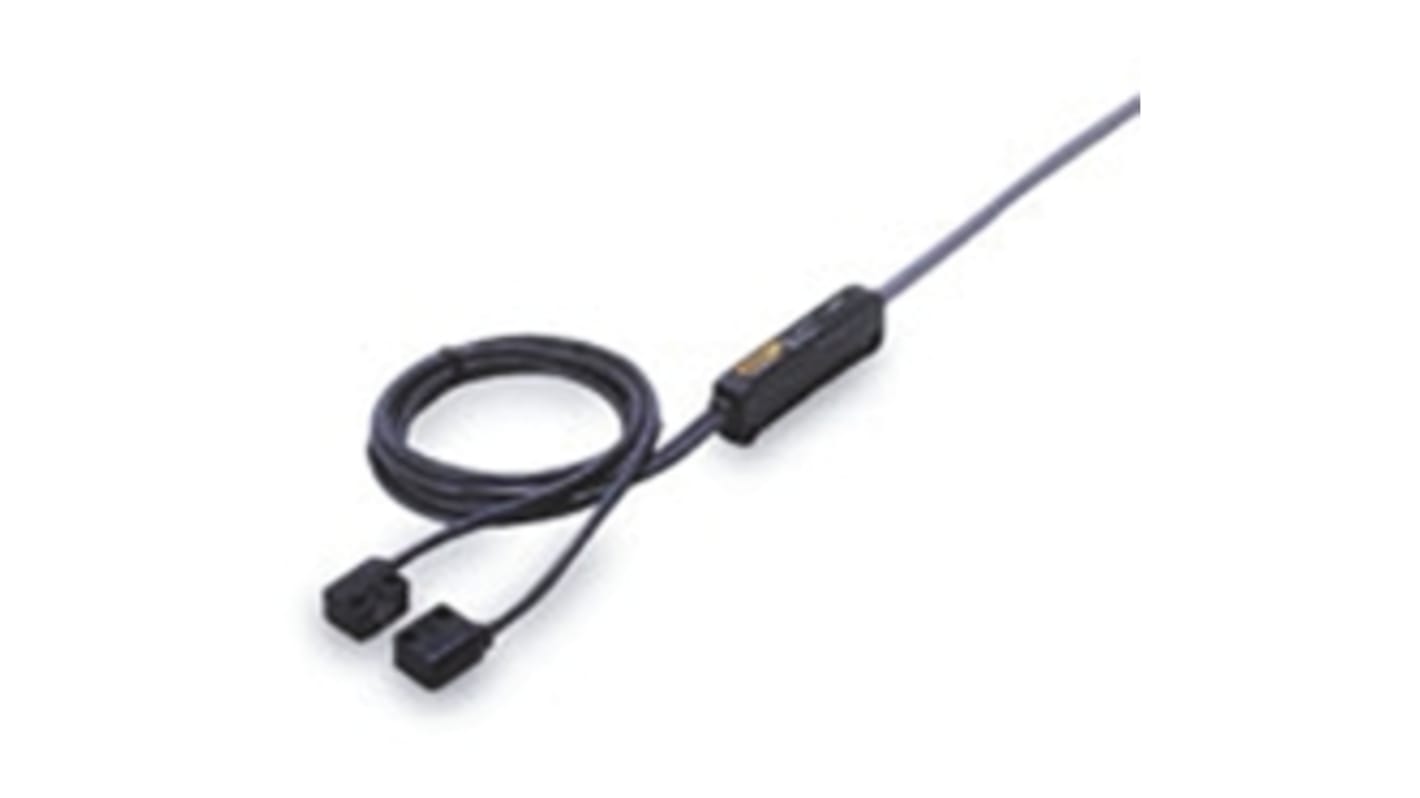

Omron Through Beam Photoelectric Sensor, Block Sensor, Maximum of 300 mm Detection Range

View all Photoelectric Sensors
Discontinued
Photoelectric Sensors to Sensors & Actuator Cables
Don’t Forget the Cables
Photoelectric sensors need the right cables to connect, communicate, and perform reliably. Our range of sensors & actuator cables are designed for secure connections, fast installation, and long-lasting durability. If you're selecting sensors, make sure to explore compatible cables to complete your setup and ensure optimal performance in your application.
Shop Now
RS Stock No.:
822-4664
Mfr. Part No.:
EE-SPW321-A
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Sensor Style

Block

Detection Type

Through Beam

Detection Range

Maximum of 300 mm

Output Type

NPN

Electrical Connection

Pre-Wired Cable

Maximum DC Voltage

24V

Light Source

Infrared

IP Rating

IP64

Maximum Current

30 mA

Response Time

1 ms

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+55°C

Housing Material

ABS Resin

COO (Country of Origin):
JP

EE-SPW321 / 421


Compact thin-profile photomicrosensor with special amplifier.NPN output and available as either Dark-On or Light-On. Provided with two operation indicators one on each sensor and amplifier, simple wiring with a 3-conductor cable

Pre-wired cable length 2m
Operating voltage range 12 to 24 VDC
Through-beam sensing method

Standards

IEC IP64
