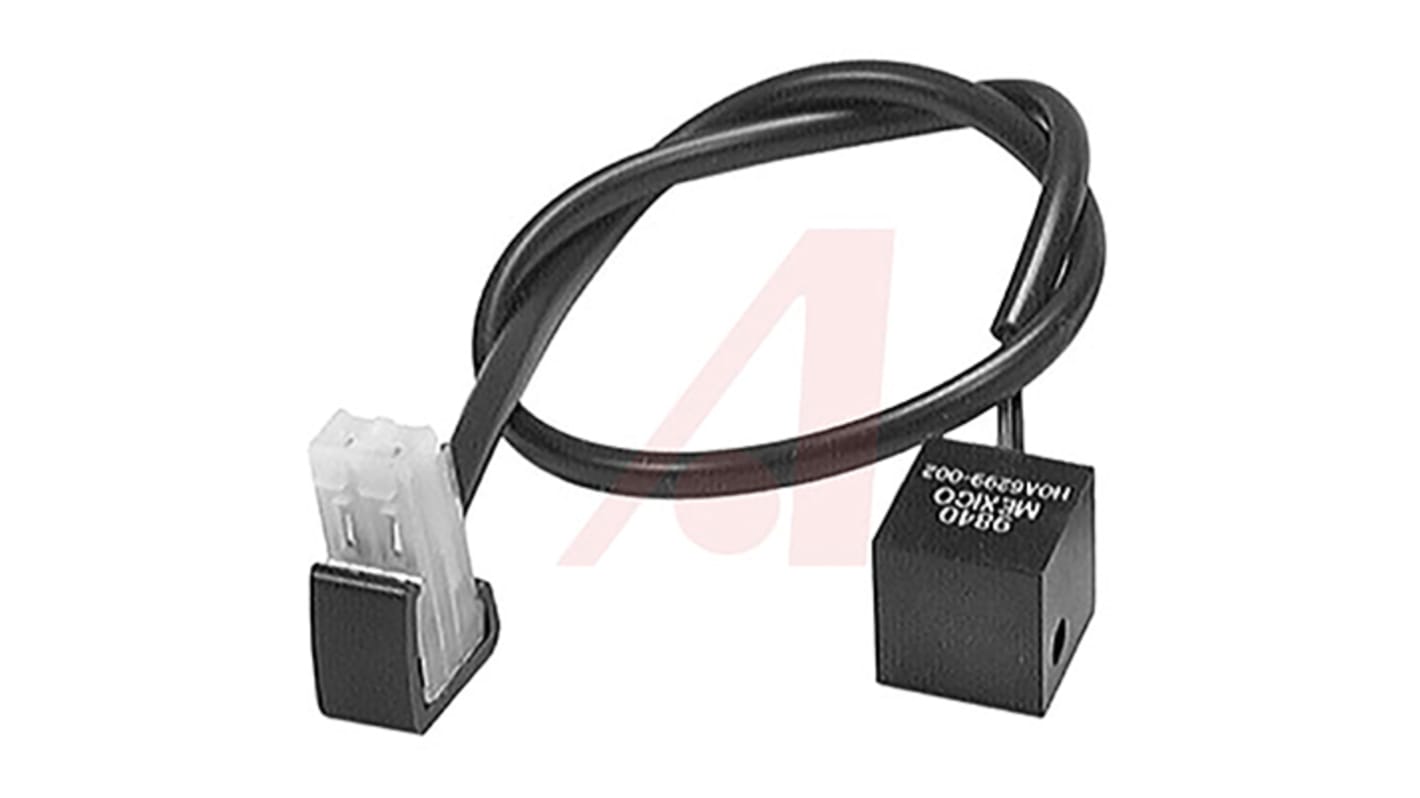

Honeywell Through Beam Photoelectric Sensor, Block Sensor, 63.5 mm Detection Range

View all Photoelectric Sensors
Discontinued
Photoelectric Sensors to Sensors & Actuator Cables
Don’t Forget the Cables
Photoelectric sensors need the right cables to connect, communicate, and perform reliably. Our range of sensors & actuator cables are designed for secure connections, fast installation, and long-lasting durability. If you're selecting sensors, make sure to explore compatible cables to complete your setup and ensure optimal performance in your application.
Shop Now
RS Stock No.:
820-3213
Mfr. Part No.:
HOA6299-002
Brand:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Sensor Style

Block

Detection Type

Through Beam

Detection Range

63.5 mm

Output Type

NPN

Electrical Connection

Connector

Maximum DC Voltage

7V

Terminal Type

Connector

Light Source

Infrared

Maximum Current

10 mA

Response Time

5 μs

Housing Material

Polysulfone

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

0°C

COO (Country of Origin):
MX

Transmissive Sensor, HOA6299 Series


The HOA6299 series has been designed as through beam infrared sensor modules which operate as a pair. Both the emitting diode (HOA3299-002) and the detector (HOA6299-003) are encased in black thermoplastic housings and employ 24 AWG wire leads. Whenever an opaque object blocks the beam path the detector’s NPN output will switch. The buffer logic provides a logic high when the optical path is clear, and a logic low when the optical path is blocked. The internal current limiting resistor in the emitter module eliminates the need for an external interface circuit.

Typical Applications:
Edge detection
Position control
Parts counting
Mail sorting

Features:
Emitter and detector in separate modules for variable spacing
Internal current limiting resistor
Direct TTL interface
Buffer logic
Fast response time
Dust-protective housing
