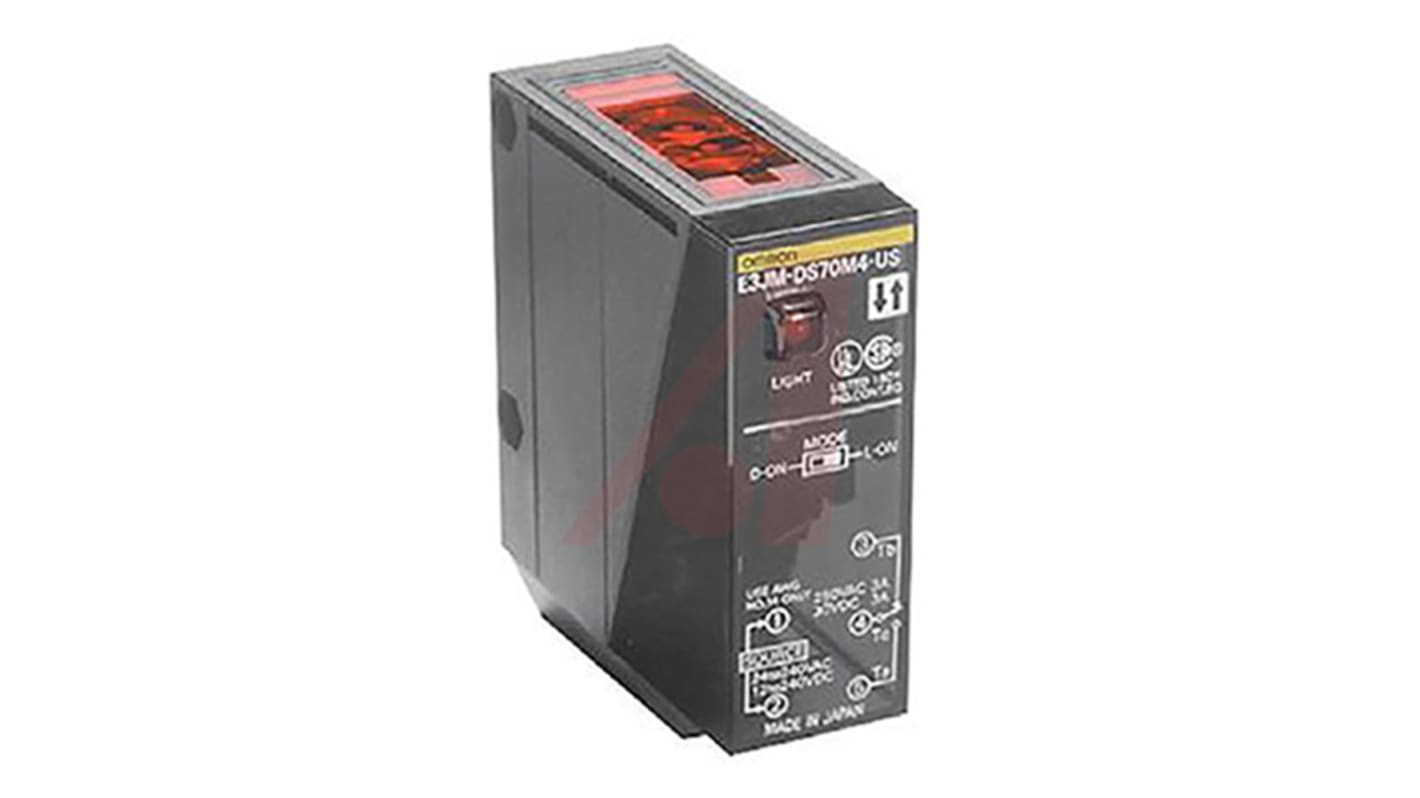

Omron Retroreflective Photoelectric Sensor, Block Sensor, Maximum of 4 m Detection Range

View all Photoelectric Sensors
Discontinued
Photoelectric Sensors to Sensors & Actuator Cables
Don’t Forget the Cables
Photoelectric sensors need the right cables to connect, communicate, and perform reliably. Our range of sensors & actuator cables are designed for secure connections, fast installation, and long-lasting durability. If you're selecting sensors, make sure to explore compatible cables to complete your setup and ensure optimal performance in your application.
Shop Now
RS Stock No.:
818-1554
Mfr. Part No.:
E3JM-R4M4T-US
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Sensor Style

Block

Detection Type

Retroreflective

Detection Range

Maximum of 4 m

Output Type

Relay

Electrical Connection

5 Terminal Screw

Maximum AC Voltage

250V

Maximum DC Voltage

5V

Light Source

LED

IP Rating

IP66

Maximum Current

3 A

Response Time

30 ms

Maximum Operating Temperature

+55°C

Minimum Operating Temperature

-25°C

Housing Material

ABS

Series

E3JM

E3JM Slim Style, with or without Delay Timer


Through Beam, Retroreflective and Diffuse versions available
Food industry compatible
ABS Case, acrylics lens, PC Cover. IP66. LED indication
N/O and N/C (selectable)
Response time 30ms Max (version without delay timer)
Load switching relay SPCO type, rated to 3A (resistive) at 250 Vac
Delay timer versions have selection of ON delay, OFF delay and ONE-SHOT (except 256-427:256-433 & 256-449) outputs with delay times of 0.1 to 5 seconds (variable)
Through beam version supplied as a transmitter and receiver pair
Operating mode: Light ON/Dark ON (selectable)
Retroreflective version employs polarised light to reduce false triggering. Reflector type E39-R1 included
Operating temperature range -25° → +55° C
Relay compatibility 5Vac 10A min.
Teminal block, PG13.5 entry
Power rating: Through beam 3W, remainder 2W
Mounting bracket and Cable glands included
