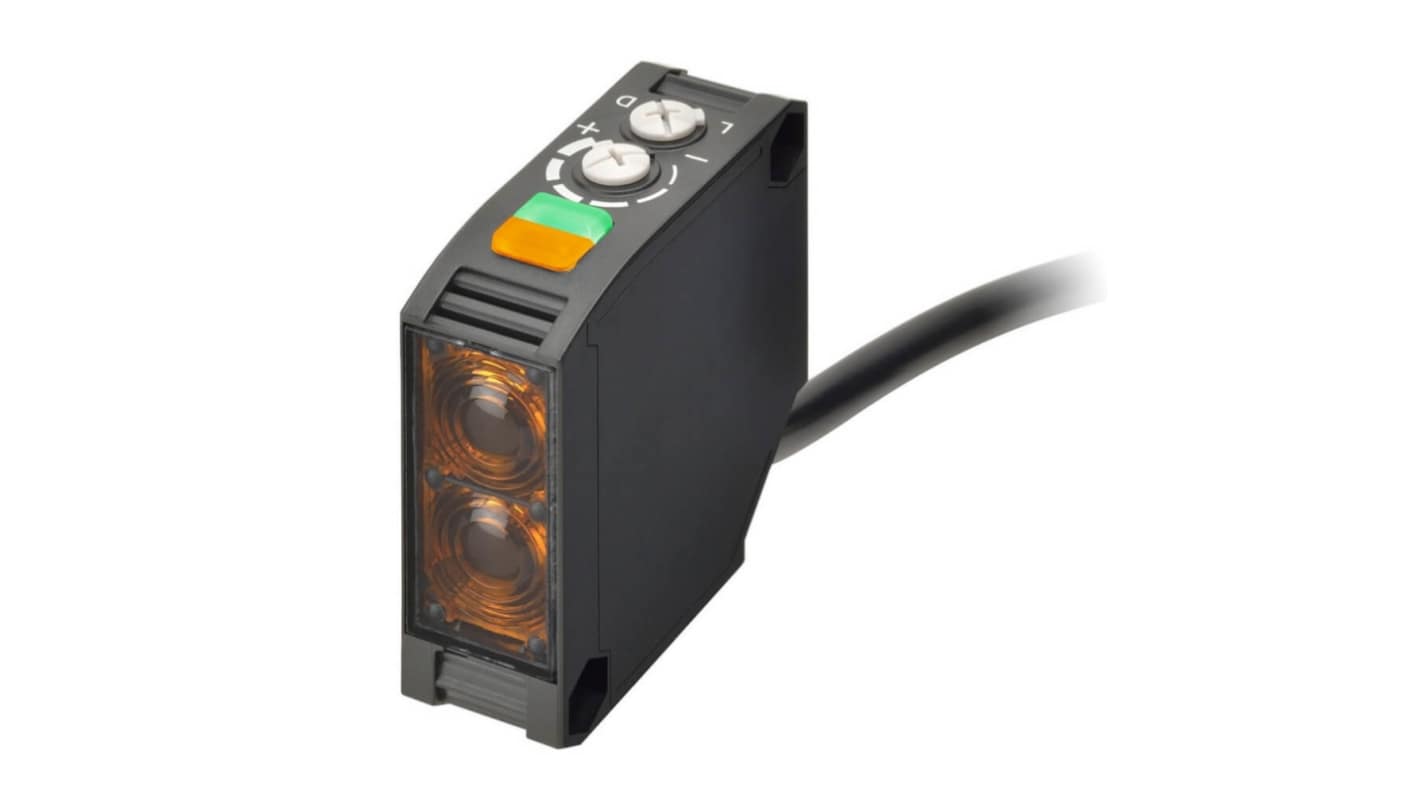

Omron Diffuse Photoelectric Sensor, Block Sensor, 300 mm Detection Range
- RS Stock No.:
- 778-8700
- Mfr. Part No.:
- E3JK-DR12 2M
- Brand:
- Omron
Subtotal (1 unit)*
£99.40
(exc. VAT)
£119.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 118 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £99.40 |
*price indicative
- RS Stock No.:
- 778-8700
- Mfr. Part No.:
- E3JK-DR12 2M
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Sensor Style | Block | |
Detection Type | Diffuse | |
Detection Range | 300 mm | |
Output Type | Relay | |
Electrical Connection | 5 Wire Cable 2 m | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 240V | |
Terminal Type | Wire Lead | |
Light Source | Red LED | |
IP Rating | IP64 | |
Response Time | 20 ms | |
Series | E3JK | |
Maximum Operating Temperature | +55°C | |
Housing Material | ABS | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Omron | ||
Sensor Style Block | ||
Detection Type Diffuse | ||
Detection Range 300 mm | ||
Output Type Relay | ||
Electrical Connection 5 Wire Cable 2 m | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 240V | ||
Terminal Type Wire Lead | ||
Light Source Red LED | ||
IP Rating IP64 | ||
Response Time 20 ms | ||
Series E3JK | ||
Maximum Operating Temperature +55°C | ||
Housing Material ABS | ||
Minimum Operating Temperature -25°C | ||
Omron E3JK Series Photoelectric Sensor, 300mm Detection Range, IP64 - E3JK-DR12 2M
This photoelectric sensor is designed for automation in a variety of industrial settings. With a detection range of 300mm and an IP64 rating, it operates reliably in demanding conditions. Featuring a 5-wire cable that extends 2m, it offers versatility for applications in both electrical and mechanical sectors.
Features & Benefits
• Detection range of 300mm for efficient performance
• Relay output facilitates integration into control systems
• Red LED light source enhances visibility and detection
• IP64 rating provides protection against dust and moisture
• Operating temperature range from -25 to +55°C
• Quick response time of 20ms
• Relay output facilitates integration into control systems
• Red LED light source enhances visibility and detection
• IP64 rating provides protection against dust and moisture
• Operating temperature range from -25 to +55°C
• Quick response time of 20ms
Applications
• Suitable for elevator cage detection systems
• Utilised in agricultural produce conveyor
• Effective for workpiece detection in woodworking machinery
• Ideal for identifying protruding packages in storage areas
• Utilised in agricultural produce conveyor
• Effective for workpiece detection in woodworking machinery
• Ideal for identifying protruding packages in storage areas
Can it operate effectively in extreme temperatures?
Yes, it functions within the range of -25°C to +55°C.
Will it be able to detect small objects at a short distance?
Yes, it is capable of detecting objects within a 300mm range.
Is it suitable for outdoor environments?
No, it is not recommended for outdoor use due to its specifications.
Can it be integrated with various power supply types?
Yes, it supports AC/DC power supplies ranging from 24 to 240V.
Is it easy to install?
Yes, it comes with a standard 2m cable for straightforward installation.
