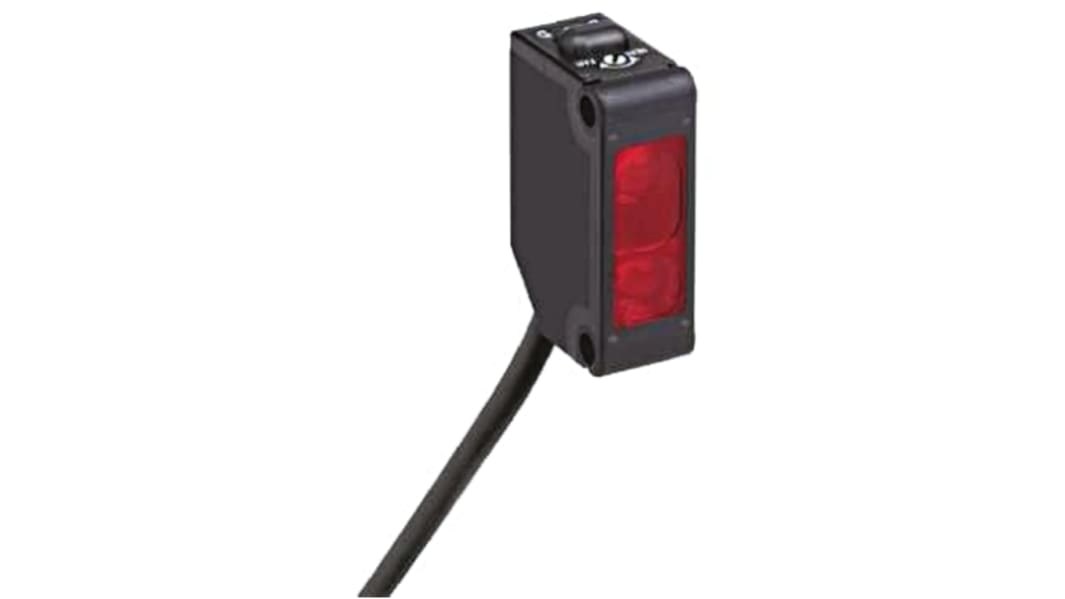

Telemecanique Sensors Background Suppression Photoelectric Sensor, Block Sensor, 300 mm Detection Range
- RS Stock No.:
- 763-9377
- Distrelec Article No.:
- 303-04-454
- Mfr. Part No.:
- XUM8APCNL2
- Brand:
- Telemecanique Sensors
Image representative of range
Subtotal (1 unit)*
£103.93
(exc. VAT)
£124.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 10 unit(s) shipping from 22 October 2025
- Plus 999,999,987 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £103.93 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£119.58
(exc. VAT)
£143.50
(inc. VAT)
- RS Stock No.:
- 763-9377
- Distrelec Article No.:
- 303-04-454
- Mfr. Part No.:
- XUM8APCNL2
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Sensor Style | Block | |
| Detection Type | Background Suppression | |
| Detection Range | 300 mm | |
| Output Type | PNP | |
| Electrical Connection | Cable | |
| Maximum DC Voltage | 24V | |
| Light Source | LED | |
| IP Rating | IP67 | |
| Maximum Current | 100 mA | |
| Response Time | 1 ms | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Sensor Style Block | ||
Detection Type Background Suppression | ||
Detection Range 300 mm | ||
Output Type PNP | ||
Electrical Connection Cable | ||
Maximum DC Voltage 24V | ||
Light Source LED | ||
IP Rating IP67 | ||
Maximum Current 100 mA | ||
Response Time 1 ms | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -25°C | ||
XUM8 Miniature Photoelectric Detectors
The OsiSense XUM8 sensors are suitable for detecting a packed product, letter or parcel on a packaging line. Interference such as movement of a conveyor and other background noise is not an obstacle to these photoelectric detectors due to the integrated foreground suppression and background suppression functionality. The XUM8 sensors are easy to install using the visible red beam and all types of packaging, sizes and colours can be detected making the sensors ideal for all conveying applications within the packaging industry.
3 wire dc supply
PBT housing
LED indication for output state and instability
Overload, reverse polarity and short circuit protection
PBT housing
LED indication for output state and instability
Overload, reverse polarity and short circuit protection
