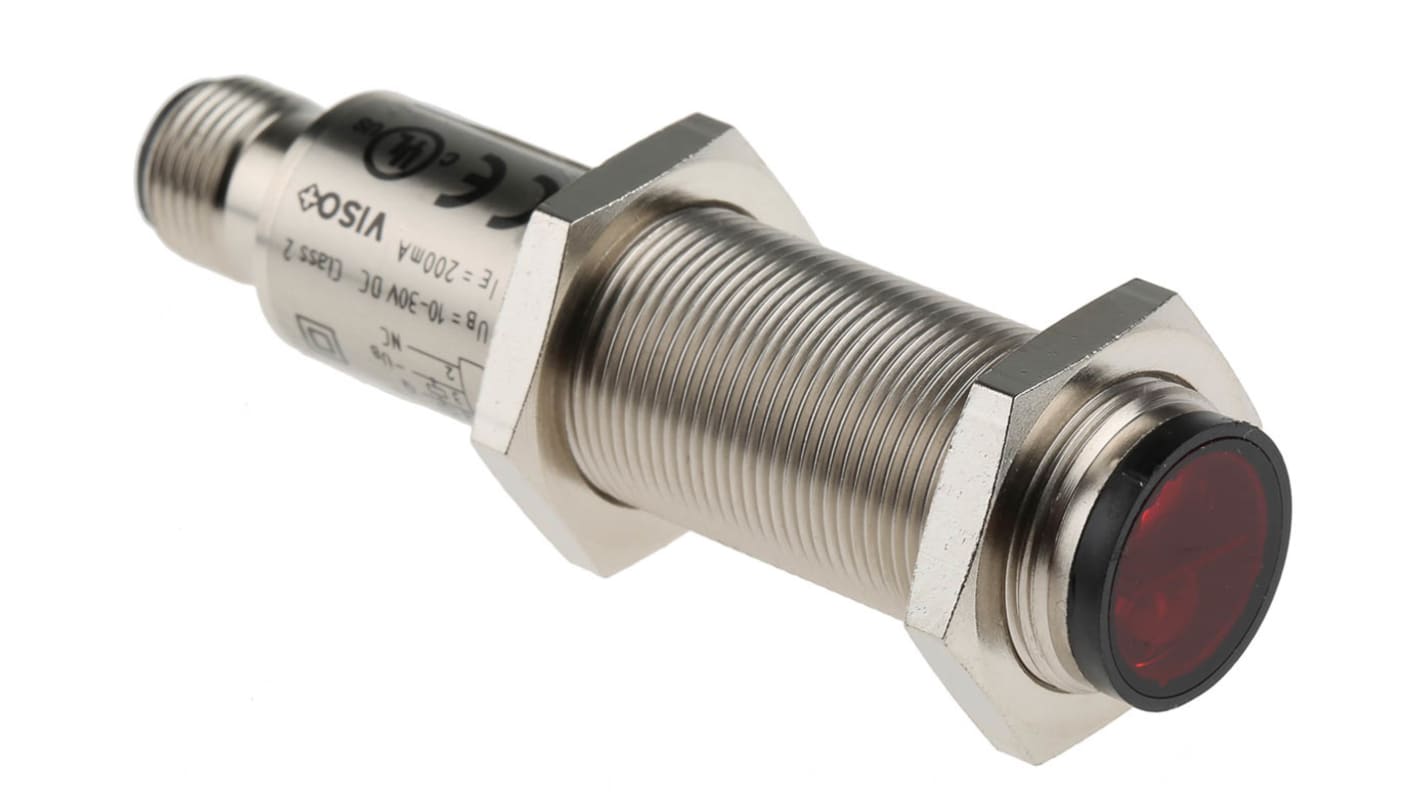

Pepperl + Fuchs Diffuse Photoelectric Sensor, Barrel Sensor, 20 mm → 120 mm Detection Range
- RS Stock No.:
- 510-3340
- Mfr. Part No.:
- VT18-8-H-120-M/40A/65B/118/128
- Brand:
- Pepperl + Fuchs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£129.88
(exc. VAT)
£155.86
(inc. VAT)
- RS Stock No.:
- 510-3340
- Mfr. Part No.:
- VT18-8-H-120-M/40A/65B/118/128
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Sensor Style | Barrel | |
| Detection Type | Diffuse | |
| Detection Range | 20 mm → 120 mm | |
| Output Type | PUSH/PULL | |
| Electrical Connection | M12 4 Pin Connector | |
| Maximum DC Voltage | 30V | |
| Light Source | LED | |
| IP Rating | IP67 | |
| Maximum Current | 200 mA | |
| Response Time | 1 ms | |
| Minimum Operating Temperature | -25°C | |
| Housing Material | Nickel Plated Brass | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Sensor Style Barrel | ||
Detection Type Diffuse | ||
Detection Range 20 mm → 120 mm | ||
Output Type PUSH/PULL | ||
Electrical Connection M12 4 Pin Connector | ||
Maximum DC Voltage 30V | ||
Light Source LED | ||
IP Rating IP67 | ||
Maximum Current 200 mA | ||
Response Time 1 ms | ||
Minimum Operating Temperature -25°C | ||
Housing Material Nickel Plated Brass | ||
Maximum Operating Temperature +70°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
M18 Background Suppressed
Light/dark on wiring dependent
Visible red light
Operating voltage 10 → 30Vdc
Temperature range -25 → +70°C
M12 4 pin male connection
Visible red light
Operating voltage 10 → 30Vdc
Temperature range -25 → +70°C
M12 4 pin male connection
