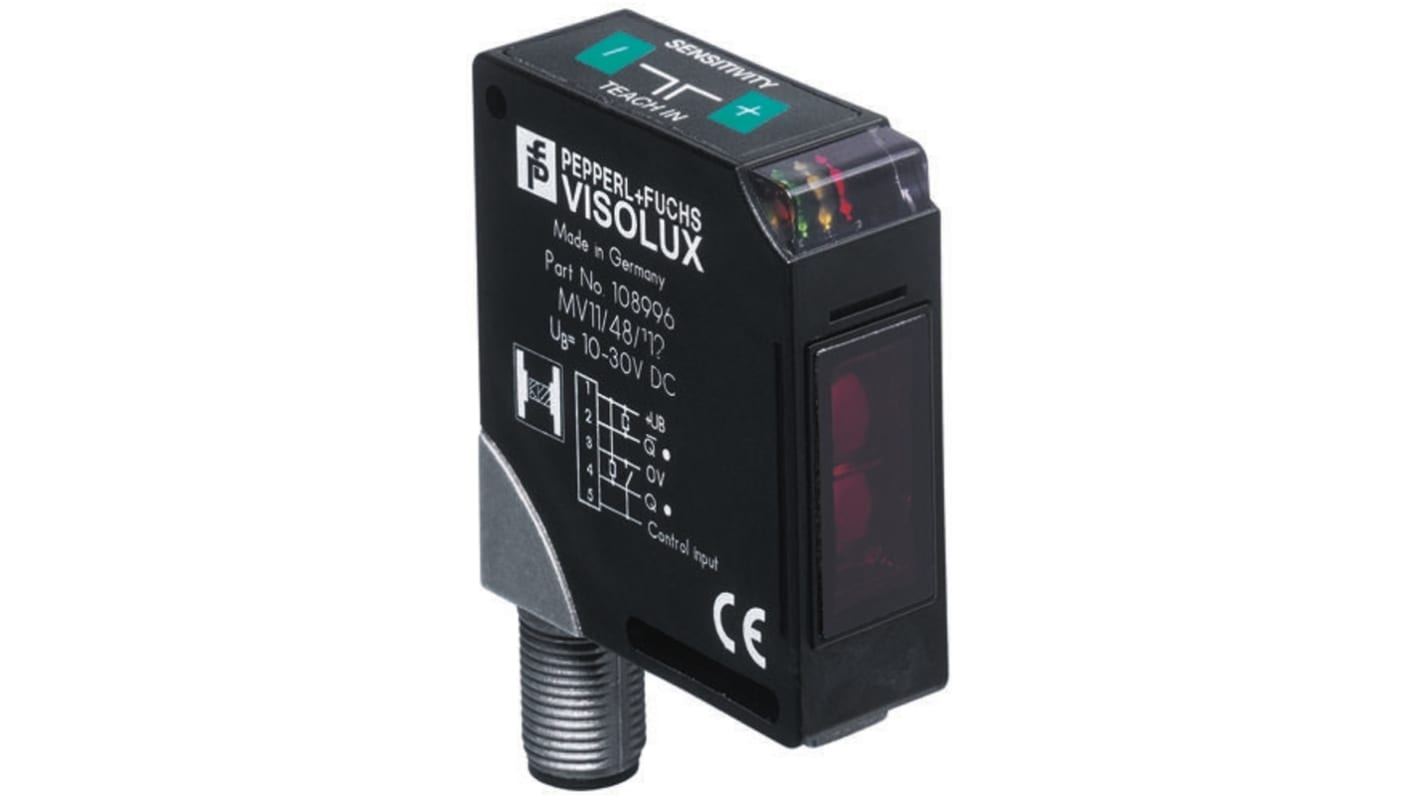

Pepperl + Fuchs Retroreflective Photoelectric Sensor, Block Sensor, 6 m Detection Range
- RS Stock No.:
- 463-8249
- Mfr. Part No.:
- MLV11-54/47/112
- Brand:
- Pepperl + Fuchs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 463-8249
- Mfr. Part No.:
- MLV11-54/47/112
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Pepperl + Fuchs | |
Sensor Style | Block | |
Detection Type | Retroreflective | |
Detection Range | 6 m | |
Output Type | PNP | |
Electrical Connection | M12 5 Pin Connector | |
Maximum DC Voltage | 30V | |
Light Source | LED | |
IP Rating | IP68 | |
Maximum Current | 200 mA | |
Response Time | <=0.5 ms | |
Housing Material | PBT | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +70°C | |
Select all | ||
---|---|---|
Brand Pepperl + Fuchs | ||
Sensor Style Block | ||
Detection Type Retroreflective | ||
Detection Range 6 m | ||
Output Type PNP | ||
Electrical Connection M12 5 Pin Connector | ||
Maximum DC Voltage 30V | ||
Light Source LED | ||
IP Rating IP68 | ||
Maximum Current 200 mA | ||
Response Time <=0.5 ms | ||
Housing Material PBT | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
RoHS Status: Not Applicable
Retro-Reflective - Clear Object
Automatic adjustment of the switch points sensitivity through TEACH INSensitivity adjustment via membrane keypad or optical interface (e.g. freely selectable time steps)Multifunction inputControl test input
Multifunction TimerFailure warning, indication and output (static, dynamic)Voltage supply: 10 → 30VdcM12, 5 pin connector
Anti-glare polarisation filterDetection of partially transparent objectsRed LED alternatingAll materials approved for the food industry use Temperature range: -25 → +70°C
Note
Reflector not supplied. See reflector 285-065
