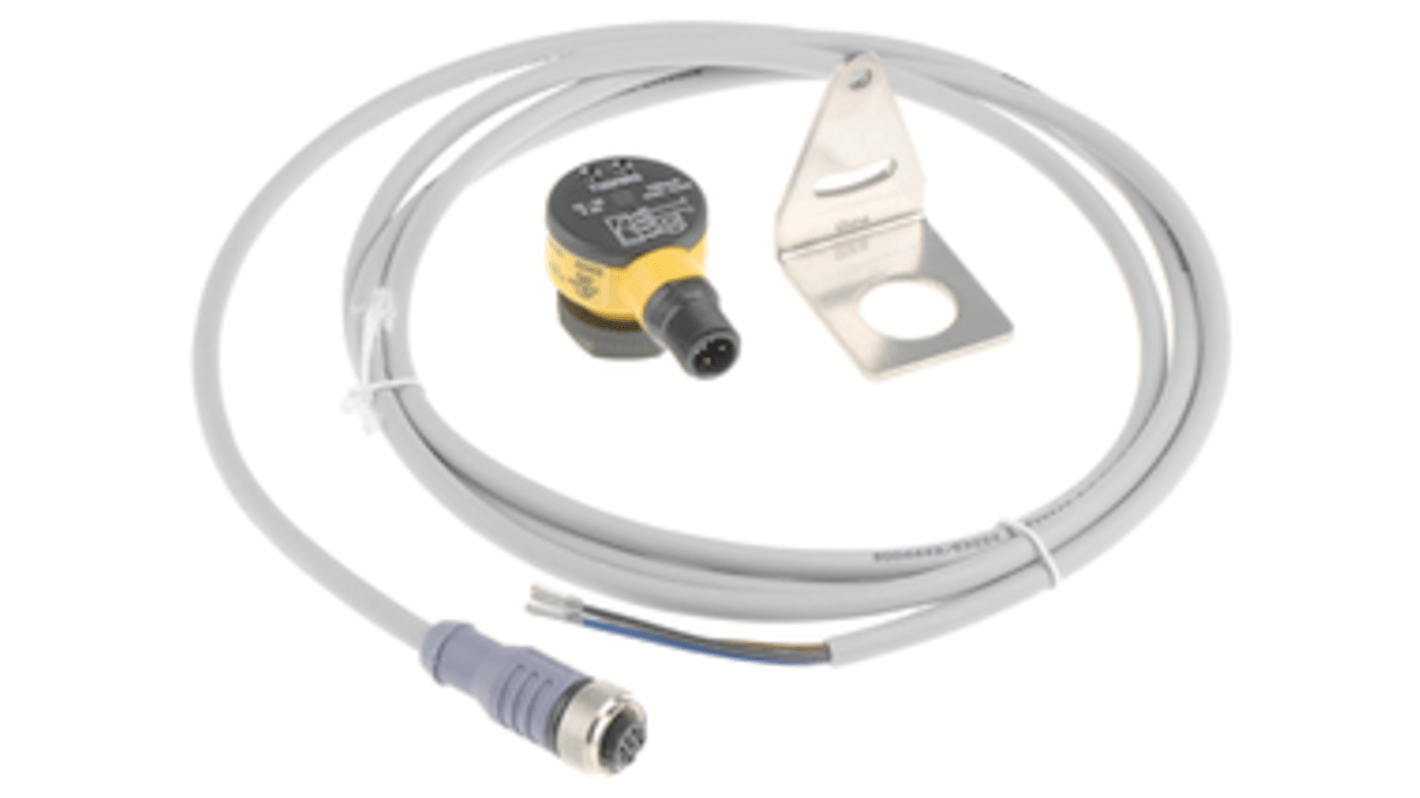

Banner Through Beam Photoelectric Sensor, Barrel Sensor, 20 m Detection Range

View all Photoelectric Sensors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Photoelectric Sensors to Sensors & Actuator Cables
Don’t Forget the Cables
Photoelectric sensors need the right cables to connect, communicate, and perform reliably. Our range of sensors & actuator cables are designed for secure connections, fast installation, and long-lasting durability. If you're selecting sensors, make sure to explore compatible cables to complete your setup and ensure optimal performance in your application.
Shop Now
RS Stock No.:
405-7268
Mfr. Part No.:
T18SP6RQ
Brand:
Banner
Find similar products by selecting one or more attributes.
Select all

Brand

Banner

Sensor Style

Barrel

Detection Type

Through Beam

Detection Range

20 m

Output Type

PNP

Electrical Connection

M12 Connector

Maximum DC Voltage

30V

Light Source

Infrared

IP Rating

IP69K

Maximum Current

150 mA

Response Time

3 ms

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-40°C

Housing Material

PBT, Plastic

RoHS Status: Not Applicable

COO (Country of Origin):
US

Short Length M18/M30 Receivers


Receiver devices for use with M12 laser transmitters, Item 1
Housing design reduces mounting depth compared to standard barrel sensors
Plastic housing - M18 or M30 front 'nose' mount
2 status LEDs
PNP outputs with full protection; switch plus alarm
2m pre-cabled or M12 connector
10-30Vdc supply voltage
Response time 3ms (On); 1.5ms (Off)
IP67 ingress protection

Caution

Laser radiation is harmful to the human eye and under no circumstances should the laser beam be viewed directly or via optical instruments.

Supplied with

mounting bracket
