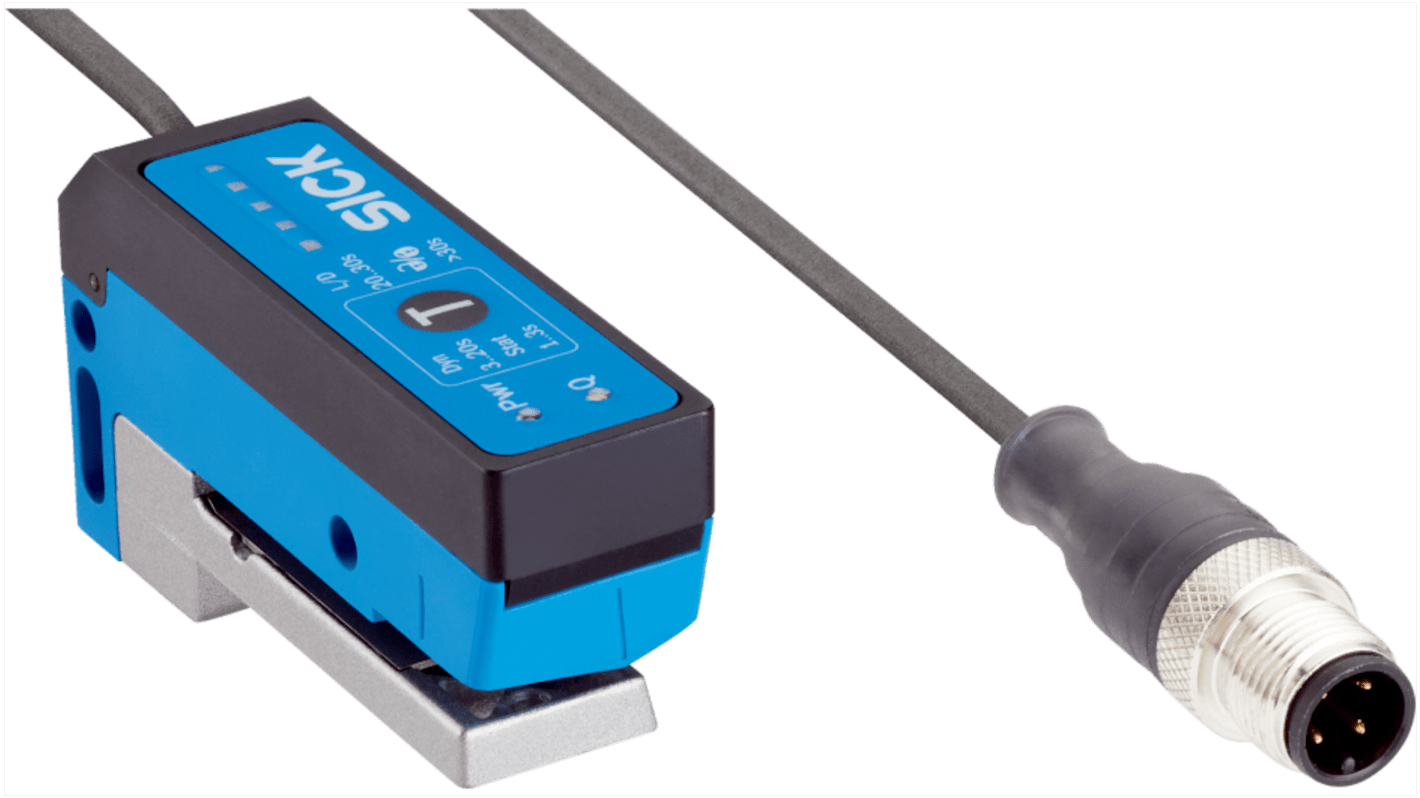

SICK Fork Sensor Photoelectric Sensor, Fork Sensor, 2.6 mm Detection Range IO-LINK
- RS Stock No.:
- 285-9085
- Mfr. Part No.:
- UFS3-37B517
- Brand:
- SICK
Subtotal (1 unit)*
£406.78
(exc. VAT)
£488.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £406.78 |
*price indicative
- RS Stock No.:
- 285-9085
- Mfr. Part No.:
- UFS3-37B517
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Sensor Style | Fork | |
Detection Type | Fork Sensor | |
Detection Range | 2.6 mm | |
Output Type | PNP/NPN | |
Electrical Connection | M12 Connector | |
Switching Mode | Light / Dark switching | |
Communication Protocol | IO-LINK | |
Maximum DC Voltage | 30V | |
Terminal Type | M12 Connector | |
IP Rating | IP65 | |
Maximum Current | 100 mA | |
Interface | IO-Link | |
Response Time | 440 μs | |
Minimum Operating Temperature | -5°C | |
Housing Material | Glass Fiber Reinforced Plastic, Metal, Plastic, Zamak | |
Maximum Operating Temperature | +55°C | |
Series | UFS3 | |
Standards Met | CE | |
Thread Size | M12 | |
Select all | ||
---|---|---|
Brand SICK | ||
Sensor Style Fork | ||
Detection Type Fork Sensor | ||
Detection Range 2.6 mm | ||
Output Type PNP/NPN | ||
Electrical Connection M12 Connector | ||
Switching Mode Light / Dark switching | ||
Communication Protocol IO-LINK | ||
Maximum DC Voltage 30V | ||
Terminal Type M12 Connector | ||
IP Rating IP65 | ||
Maximum Current 100 mA | ||
Interface IO-Link | ||
Response Time 440 μs | ||
Minimum Operating Temperature -5°C | ||
Housing Material Glass Fiber Reinforced Plastic, Metal, Plastic, Zamak | ||
Maximum Operating Temperature +55°C | ||
Series UFS3 | ||
Standards Met CE | ||
Thread Size M12 | ||
- COO (Country of Origin):
- FR
Overview
The T-Easic FTS thermal flow sensor measures flow and temperature of liquids in accordance with the calorimetric principle. Available as an industrial variant with VISTAL® housing and display or as a hygienic stainless-steel variant, the T-Easic® FTS is s
A special feature is integrated empty pipe detection for optimal dry-run protection in pumps. Parameterization can be done via IO-Link or the display. Media taught-in at the factory such as oil and water accelerate commissioning
other liquids can be cali
At a glance
Flow monitoring and temperature measurement in one sensor
Optimized for water and oil
Optimized for water and oil
teach-in option of other liquids
IP 67/IP 69 enclosure rating and IO-Link 1.1
Industrial design in VISTAL® housing with 180°-rotatable OLED display
Stainless steel hygi
IP 67/IP 69 enclosure rating and IO-Link 1.1
Industrial design in VISTAL® housing with 180°-rotatable OLED display
Stainless steel hygi
Your Benefit
One sensor, two measurements – reduces costs and hygiene risk thanks to a unique installation point
Optimal pump protection thanks integrated empty pipe detection
Automated measurement data acquisition via analogue output or IO-Link
Volume recording thank
Optimal pump protection thanks integrated empty pipe detection
Automated measurement data acquisition via analogue output or IO-Link
Volume recording thank
Applications
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
