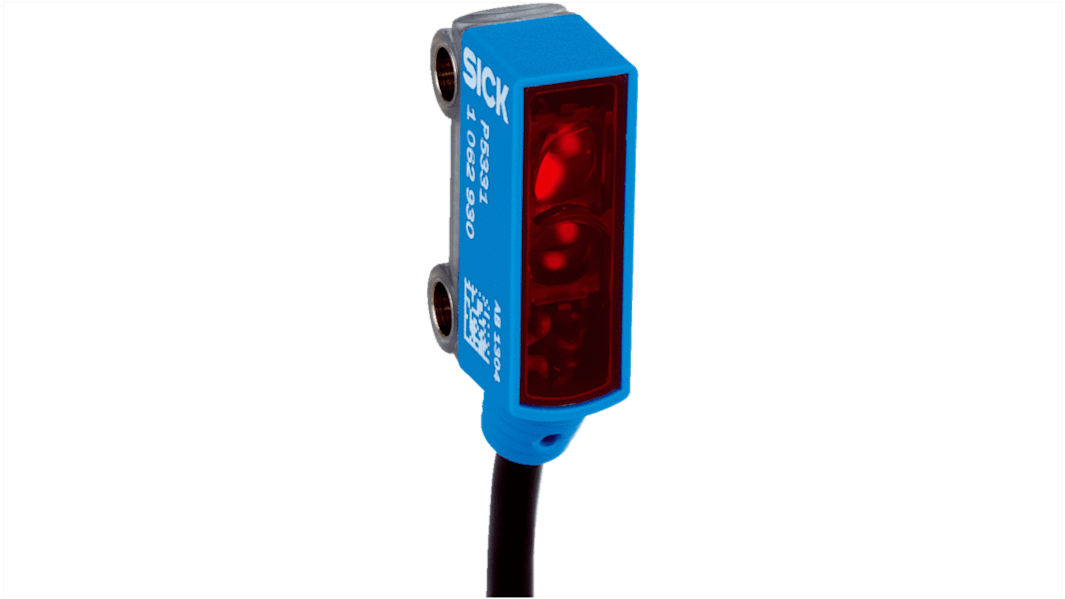

SICK Retroreflective Photoelectric Sensor, Rectangular Sensor, 1.2 m Detection Range
- RS Stock No.:
- 285-2389
- Mfr. Part No.:
- WL2SG-2E1135
- Brand:
- SICK
Subtotal (1 unit)*
£162.71
(exc. VAT)
£195.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.71 |
*price indicative
- RS Stock No.:
- 285-2389
- Mfr. Part No.:
- WL2SG-2E1135
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Sensor Style | Rectangular | |
| Detection Type | Retroreflective | |
| Detection Range | 1.2 m | |
| Output Type | NPN | |
| Switching Mode | Dark Switching | |
| Electrical Connection | 2 m, 4-wire, Cable | |
| Maximum DC Voltage | 30V | |
| Terminal Type | 2 m, 4-wire, Cable | |
| Light Source | Visible Red | |
| IP Rating | IP67 | |
| Maximum Current | 50 mA | |
| Response Time | 0.5 ms | |
| Housing Material | Plastic | |
| Minimum Operating Temperature | -20°C | |
| Mounting Type | Panel Mount | |
| Series | WL2SG | |
| Maximum Operating Temperature | +50°C | |
| Standards Met | CE, cULus Listed | |
Select all | ||
|---|---|---|
Brand SICK | ||
Sensor Style Rectangular | ||
Detection Type Retroreflective | ||
Detection Range 1.2 m | ||
Output Type NPN | ||
Switching Mode Dark Switching | ||
Electrical Connection 2 m, 4-wire, Cable | ||
Maximum DC Voltage 30V | ||
Terminal Type 2 m, 4-wire, Cable | ||
Light Source Visible Red | ||
IP Rating IP67 | ||
Maximum Current 50 mA | ||
Response Time 0.5 ms | ||
Housing Material Plastic | ||
Minimum Operating Temperature -20°C | ||
Mounting Type Panel Mount | ||
Series WL2SG | ||
Maximum Operating Temperature +50°C | ||
Standards Met CE, cULus Listed | ||
- COO (Country of Origin):
- DE
Overview
Miniature photoelectric sensors of the W2 product family combine precise object detection with high operational safety. The powerful optics of the W2 feature an outstanding size-to-sensing range ratio.
This means it can even detect jet-black objects precisely. The miniature photoelectric sensors are available in either slim or flat housings versions and, thanks to their very small design, can be integrated easily and compactly even in systems that are difficult to access.
At a glance
High switching point accuracy and excellent size-sensing range ratio
Very small sensor housing: available either as W2 Slim or W2 Flat
Very visible, uniform light spot thanks to PinPoint LED
Configuration options via IO-Link technology
Very small sensor housing: available either as W2 Slim or W2 Flat
Very visible, uniform light spot thanks to PinPoint LED
Configuration options via IO-Link technology
Your Benefit
High precision during object detection even with jet-black objects
Space-saving integration in miniature systems and very tight installation spaces
Quick and easy alignment, commissioning and monitoring
High level of flexibility thanks to diverse mounting and application options
Space-saving integration in miniature systems and very tight installation spaces
Quick and easy alignment, commissioning and monitoring
High level of flexibility thanks to diverse mounting and application options
Applications
Factory automation
Leading edge detection and presence checking
Print: Leading edge detection and presence checking
Type check and inspection for body parts
Automotive and parts suppliers: Type check and inspection for body parts
Checking presence at the
Leading edge detection and presence checking
Print: Leading edge detection and presence checking
Type check and inspection for body parts
Automotive and parts suppliers: Type check and inspection for body parts
Checking presence at the
