- RS Stock No.:
- 267-2245
- Mfr. Part No.:
- WFE-050060B337
- Brand:
- Sick
Available to back order for despatch 08/05/2024
Added
Price Each
£94.60
(exc. VAT)
£113.52
(inc. VAT)
Units | Per unit |
1 + | £94.60 |
- RS Stock No.:
- 267-2245
- Mfr. Part No.:
- WFE-050060B337
- Brand:
- Sick
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Overview

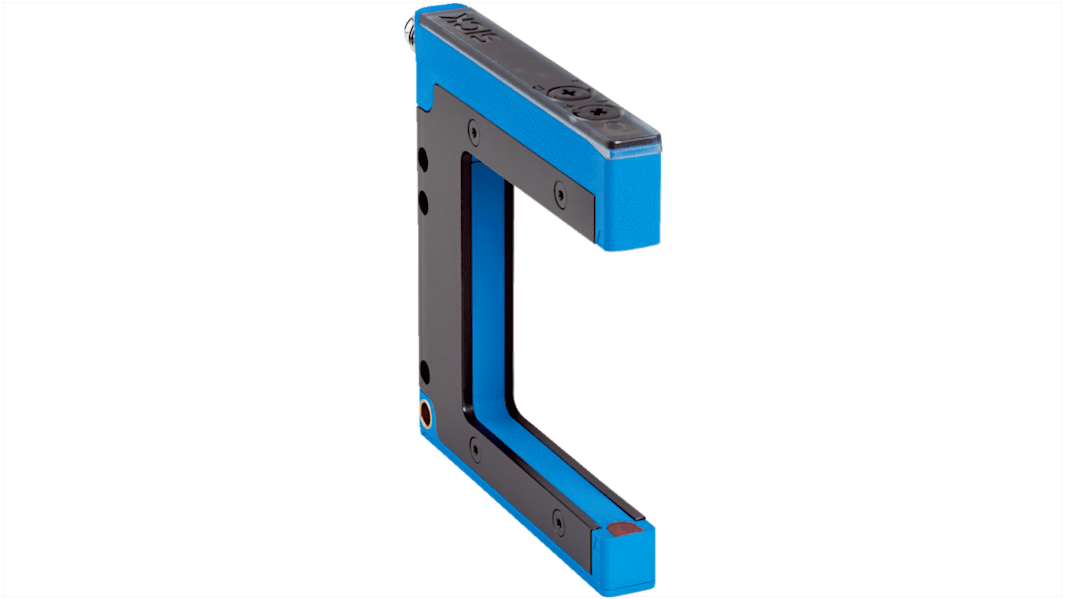

The WFE is a rugged fork sensor that is simple and easy to mount. Thanks to its reliability and accurate detection, it is suitable for a large number of applications. The WFE can precisely detect objects up to a size of 0.5 mm with a high switching frequency of 5 kHz. The sensitivity adjustment, a push-pull output, and the ability to select between light and dark switching make it flexible and convenient to use.
The WFE is enclosed in a rugged hybrid housing (IP67) made from ABS plastic with a carbon steel frame and performs reliably even in harsh environments. 5 different fork widths and several different types of connector are available. The WFE is therefore well and truly an all-in-one fork sensor solution.
At a glance
Sender and receiver in a single housing
5 different fork widths from 30 mm to max. 180 mm
High switching frequency of 5 kHz
Minimum detectable object (MDO) of 0.5 mm
Durable hybrid housing made from ABS with carbon steel frame
Sensitivity adjustment
Light/dark switching
Push-pull output Sender and receiver in a single housing
5 different fork widths from 30 mm to max. 180 mm
High switching frequency of 5 kHz
Minimum detectable object (MDO) of 0.5 mm
Durable hybrid housing made from ABS with carbon steel frame
Sensitivity adjustment
Light/dark switching
Push-pull output
5 different fork widths from 30 mm to max. 180 mm
High switching frequency of 5 kHz
Minimum detectable object (MDO) of 0.5 mm
Durable hybrid housing made from ABS with carbon steel frame
Sensitivity adjustment
Light/dark switching
Push-pull output Sender and receiver in a single housing
5 different fork widths from 30 mm to max. 180 mm
High switching frequency of 5 kHz
Minimum detectable object (MDO) of 0.5 mm
Durable hybrid housing made from ABS with carbon steel frame
Sensitivity adjustment
Light/dark switching
Push-pull output
Your Benefit
Very rugged and durable ABS housing with carbon steel frame and IP67 enclosure rating
Quick and easy mounting since the sender and receiver are pre-aligned within the same housing
Large selection of fork widths for different application requirements
Practical and versatile thanks to an intuitive sensitivity adjustment, push-pull output, and light/dark switching
High switching frequency and fine resolution guarantees reliable detection even at high speeds
Quick and easy mounting since the sender and receiver are pre-aligned within the same housing
Large selection of fork widths for different application requirements
Practical and versatile thanks to an intuitive sensitivity adjustment, push-pull output, and light/dark switching
High switching frequency and fine resolution guarantees reliable detection even at high speeds
Applications
Packaging – bottles, boxes or web edge guiding
Machine tools – mechanical parts, gears, metal parts, screws
Electronics
Logistics – positioning of conveying equipment, gears
Automotive – positioning of automotive parts, conveying equipment
Pharmaceutical – detection of syringes, medical parts
Machine tools – mechanical parts, gears, metal parts, screws
Electronics
Logistics – positioning of conveying equipment, gears
Automotive – positioning of automotive parts, conveying equipment
Pharmaceutical – detection of syringes, medical parts
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
Specifications
Attribute | Value |
---|---|
Sensor Style | Fork |
Detection Type | Fork Sensor |
Detection Range | 50 MM |
Output Type | NPN, PNP |
Switching Mode | Light / Dark switching |
Electrical Connection | Connector |
Maximum DC Voltage | 30V |
Terminal Type | M8 3 Pin Connector |
Light Source | LED, Red Light |
IP Rating | IP67 |
Maximum Current | 30 mA |
Response Time | 100 μs |
Mounting Type | Panel Mount |
Maximum Operating Temperature | +60°C |
Series | WFE |
Housing Material | ABS, Plastic |
Minimum Operating Temperature | -20°C |
Standards Met | CE, cULus Listed, EAC |
Thread Size | M8 |
