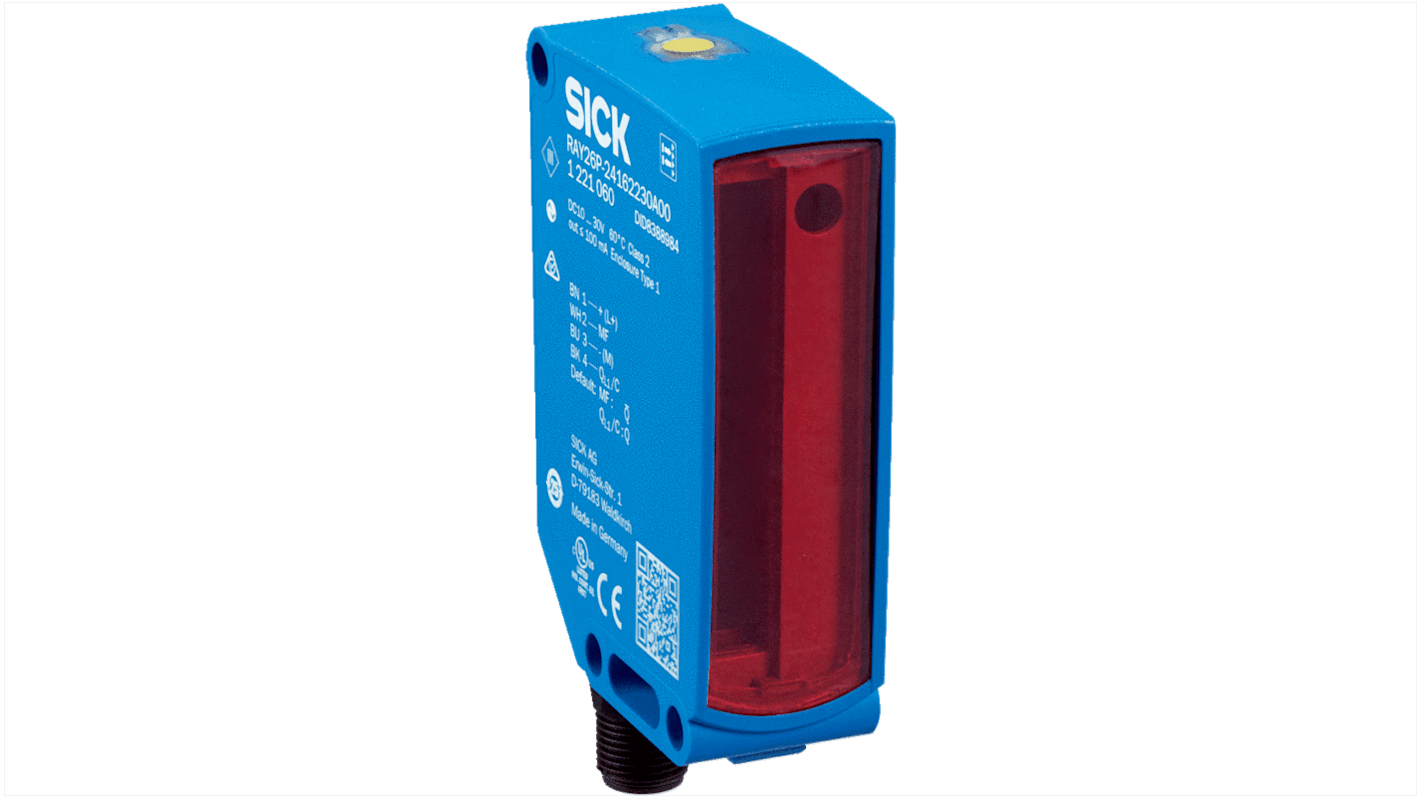

SICK Retroreflective Photoelectric Sensor, Block Sensor, 1.5 m Detection Range IO-LINK
- RS Stock No.:
- 266-8729
- Mfr. Part No.:
- RAY26P-34162130A00
- Brand:
- SICK
Subtotal (1 unit)*
£356.64
(exc. VAT)
£427.97
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 2 unit(s) shipping from 14 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £356.64 |
*price indicative
- RS Stock No.:
- 266-8729
- Mfr. Part No.:
- RAY26P-34162130A00
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Sensor Style | Block | |
Detection Type | Retroreflective | |
Detection Range | 1.5 m | |
Output Type | PNP/NPN | |
Electrical Connection | M12 4 Pin Connector | |
Switching Mode | Light / Dark switching | |
Maximum DC Voltage | 30V | |
Communication Protocol | IO-LINK | |
Terminal Type | 4 Pin Connector | |
Light Source | PinPoint LED | |
IP Rating | IP66 | |
Maximum Current | 100 mA | |
Response Time | 3 ms | |
Interface | IO-Link | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -40°C | |
Mounting Type | Threaded | |
Housing Material | Plastic, VISTAL | |
Series | Reflex Array | |
Standards Met | CE, cULus | |
Thread Size | M12 | |
Select all | ||
---|---|---|
Brand SICK | ||
Sensor Style Block | ||
Detection Type Retroreflective | ||
Detection Range 1.5 m | ||
Output Type PNP/NPN | ||
Electrical Connection M12 4 Pin Connector | ||
Switching Mode Light / Dark switching | ||
Maximum DC Voltage 30V | ||
Communication Protocol IO-LINK | ||
Terminal Type 4 Pin Connector | ||
Light Source PinPoint LED | ||
IP Rating IP66 | ||
Maximum Current 100 mA | ||
Response Time 3 ms | ||
Interface IO-Link | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -40°C | ||
Mounting Type Threaded | ||
Housing Material Plastic, VISTAL | ||
Series Reflex Array | ||
Standards Met CE, cULus | ||
Thread Size M12 | ||
- COO (Country of Origin):
- DE
Overview
In combination with a reflector, the Reflex Array Multitask photoelectric sensor detects leading edges of small, flat, transparent or unevenly formed objects on conveyor belts within its light array. Detection takes place regardless of where and how the objects are positioned on a conveyor belt. The photoelectric sensor reliably detects objects such as glass bottles and polybags. The Reflex Array can even detect perforated objects easily without triggering multiple switching operations.
This reduces the overall costs and accelerates the commissioning process. Compared to other solutions that involve use of individual photoelectric sensors or small light grids, Reflex Array offers substantial cost benefits.
At a glance
RAY10: 25 mm-high light array, detects objects ≥ 5 mm
RAY26: 55 mm-high light array, three variants, detects objects ≥ 3 mm, ≥ 5 mm or ≥ 10 mm
Display for predictive maintenance on the sensor
RAY26: 55 mm-high light array, three variants, detects objects ≥ 3 mm, ≥ 5 mm or ≥ 10 mm
Display for predictive maintenance on the sensor
transmits maintenance signals to the PLC via IO-Link
Conveyor belt suppression for RAY26
Conveyor belt suppression for RAY26
Your Benefit
Reduces the overall costs for detection by up to 50% compared to other solutions
Detection of objects with a size of ≥ 1 mm in a 20 mm-high light array or ≥ 3 mm, ≥ 5 mm or ≥ 10 mm in a 55 mm-high light array or ≥ 5 mm in a 25 mm-high light array
Conveyor belt suppression: Manual or via IO-Link
Pinpoint LED enables great visibility of the light array and easy and fast optical alignment
Predictive maintenance using Auto Adapt reduces downtime
Detection of objects with a size of ≥ 1 mm in a 20 mm-high light array or ≥ 3 mm, ≥ 5 mm or ≥ 10 mm in a 55 mm-high light array or ≥ 5 mm in a 25 mm-high light array
Conveyor belt suppression: Manual or via IO-Link
Pinpoint LED enables great visibility of the light array and easy and fast optical alignment
Predictive maintenance using Auto Adapt reduces downtime
Applications
Conveyor belts: Detection of small, flat, perforated, unevenly formed or transparent objects
Automotive industry
Electronics industry
Food and beverage industry
Logistics
Steel industry
Wood industry
Automotive industry
Electronics industry
Food and beverage industry
Logistics
Steel industry
Wood industry
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
