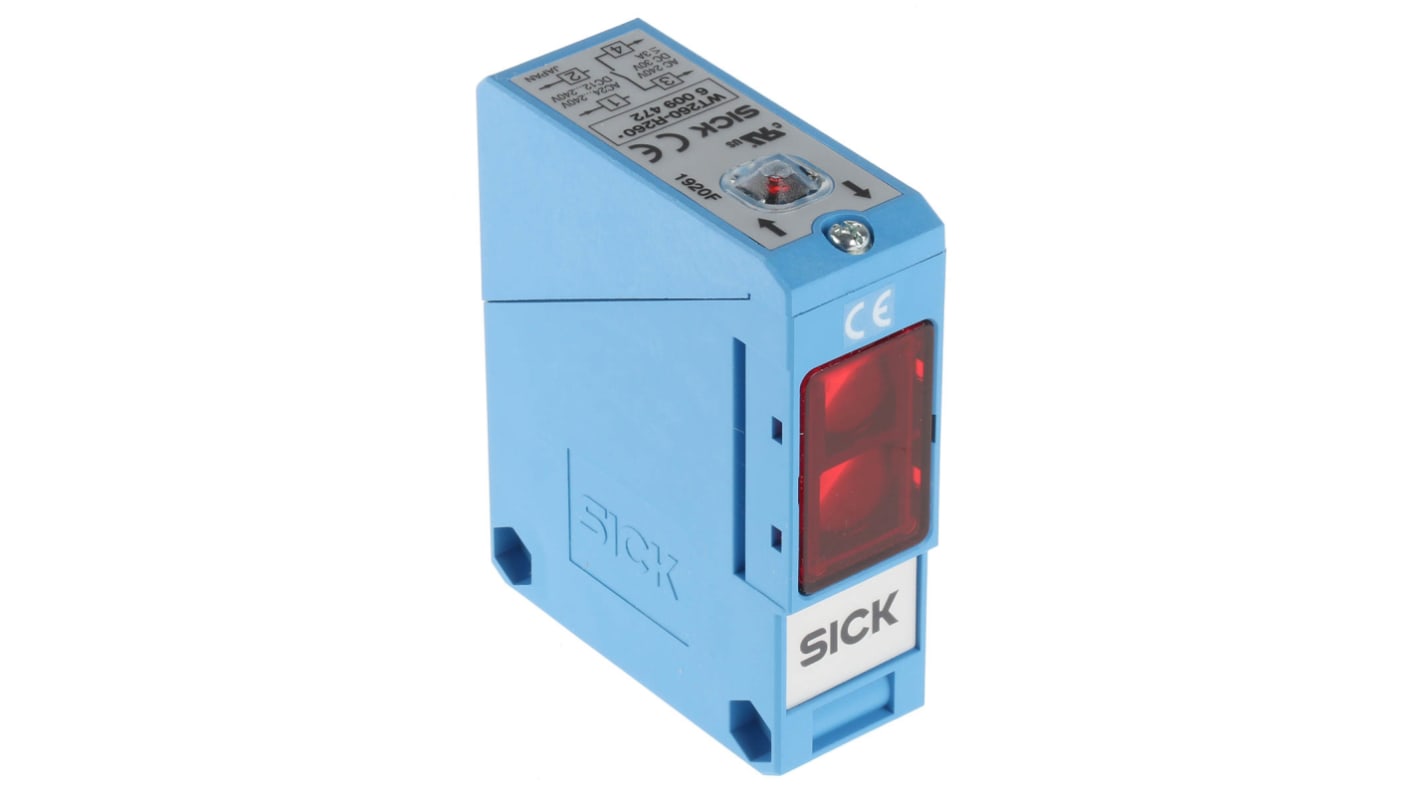

SICK Diffuse Photoelectric Sensor, Block Sensor, 380 mm Detection Range
- RS Stock No.:
- 263-8269
- Mfr. Part No.:
- WT260-R260
- Brand:
- Sick
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£183.45
(exc. VAT)
£220.14
(inc. VAT)
- RS Stock No.:
- 263-8269
- Mfr. Part No.:
- WT260-R260
- Brand:
- Sick
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sick | |
| Sensor Style | Block | |
| Detection Type | Diffuse | |
| Detection Range | 380 mm | |
| Output Type | Relay | |
| Electrical Connection | 4 Terminal Screw | |
| Maximum AC Voltage | 240V | |
| Maximum DC Voltage | 30V | |
| Light Source | Infrared | |
| IP Rating | IP66 | |
| Maximum Current | 3 A ac, 330 A dc | |
| Response Time | =20 ms | |
| Series | W260 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +55°C | |
| Mounting Type | Panel Mount | |
| Housing Material | ABS | |
| Select all | ||
|---|---|---|
Brand Sick | ||
Sensor Style Block | ||
Detection Type Diffuse | ||
Detection Range 380 mm | ||
Output Type Relay | ||
Electrical Connection 4 Terminal Screw | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 30V | ||
Light Source Infrared | ||
IP Rating IP66 | ||
Maximum Current 3 A ac, 330 A dc | ||
Response Time =20 ms | ||
Series W260 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +55°C | ||
Mounting Type Panel Mount | ||
Housing Material ABS | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
W260 Compact Photoelectric Sensors
SICK W260 series photoelectric sensors have long adjustable sensing distances. Designed for use in a wide variety of applications that reach far beyond handling, packaging, warehousing and wood industries. A visible red light used for an alignment aid makes the W260 photoelectric sensors particularly user-friendly. The housing features a removable cover that offers protection to the configuration controls and electrical terminals. LED indicators located on the top panel provide instant feedback of the detection status.
Features and Benefits
·Glass reinforced plastic housing rated to IP67 with status indicator
·LED light source for reliable detection
·Large adjustable sensing range
·Operating Temperature Range -25 to +55°C
·LEDs on the sensor body for detection status
·Mounting bracket provided for simple mounting
·Easily accessible terminal chamber for electrical connections simpifies installation
·Overload, reverse polarity, and short circuit protected
·All necessary mounting accessories (bracket and reflector, WL250 only) are included with delivery
·Switch selectable operating mode (light/dark)
·Configuration controls are protected by a cover, ensuring less damage
·LED light source for reliable detection
·Large adjustable sensing range
·Operating Temperature Range -25 to +55°C
·LEDs on the sensor body for detection status
·Mounting bracket provided for simple mounting
·Easily accessible terminal chamber for electrical connections simpifies installation
·Overload, reverse polarity, and short circuit protected
·All necessary mounting accessories (bracket and reflector, WL250 only) are included with delivery
·Switch selectable operating mode (light/dark)
·Configuration controls are protected by a cover, ensuring less damage
Note
Cable gland supplied
