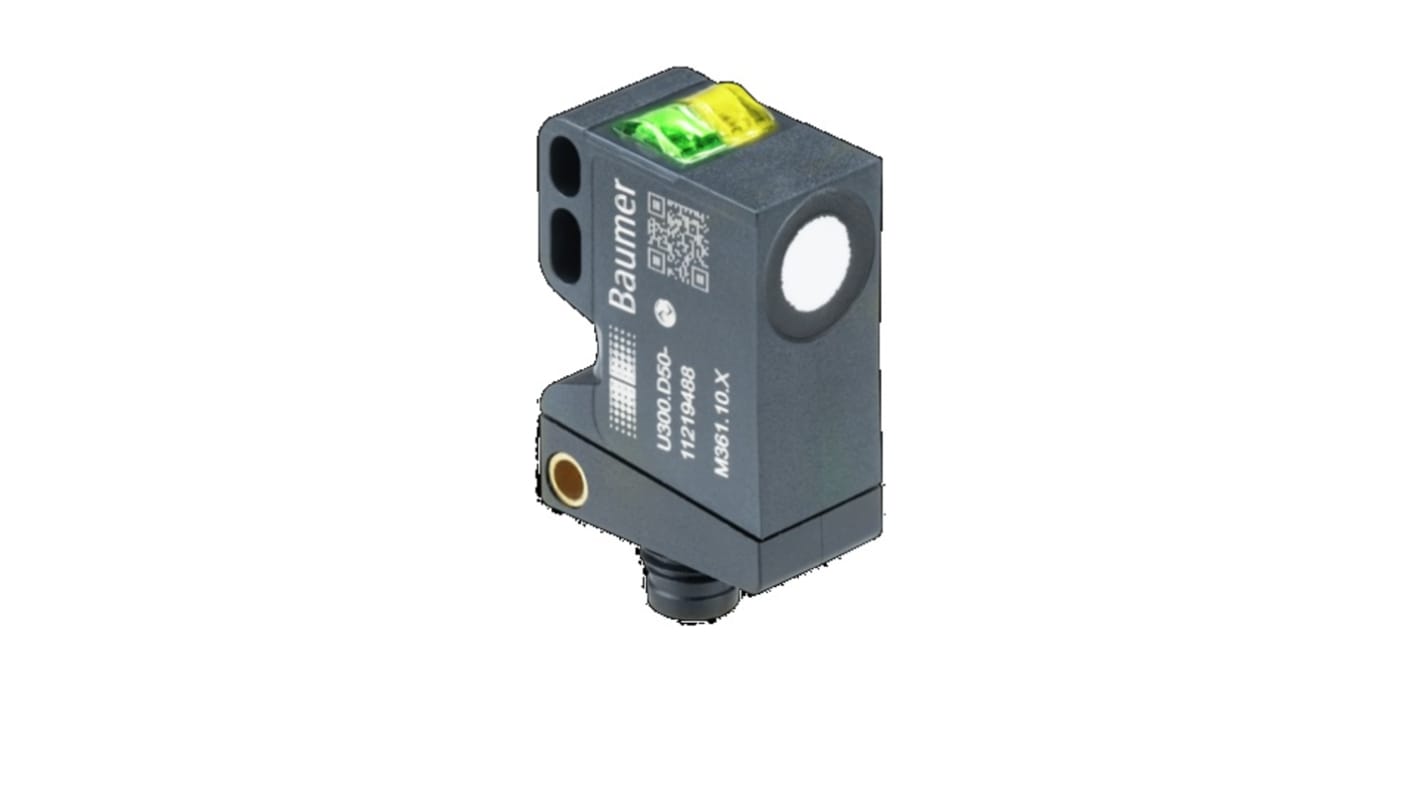

Baumer Diffuse Distance Sensor, Block Sensor, 15 mm → 500 mm Detection Range IO-LINK
- RS Stock No.:
- 220-7194
- Distrelec Article No.:
- 302-20-714
- Mfr. Part No.:
- U300.P50-GP2J.72N
- Brand:
- Baumer
Subtotal (1 unit)*
£256.30
(exc. VAT)
£307.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £256.30 |
*price indicative
- RS Stock No.:
- 220-7194
- Distrelec Article No.:
- 302-20-714
- Mfr. Part No.:
- U300.P50-GP2J.72N
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Baumer | |
Sensor Style | Block | |
Detection Type | Diffuse | |
Detection Range | 15 mm → 500 mm | |
Output Type | PUSH/PULL | |
Electrical Connection | M8 4 Pin Connector | |
Maximum DC Voltage | 30V | |
Communication Protocol | IO-LINK | |
Terminal Type | M8 4 Pin Connector | |
IP Rating | IP67 | |
Response Time | 16 ms | |
Mounting Type | Screw | |
Housing Material | ASA, PMMA | |
Series | U300 | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -20°C | |
Standards Met | CE, cULus | |
Select all | ||
---|---|---|
Brand Baumer | ||
Sensor Style Block | ||
Detection Type Diffuse | ||
Detection Range 15 mm → 500 mm | ||
Output Type PUSH/PULL | ||
Electrical Connection M8 4 Pin Connector | ||
Maximum DC Voltage 30V | ||
Communication Protocol IO-LINK | ||
Terminal Type M8 4 Pin Connector | ||
IP Rating IP67 | ||
Response Time 16 ms | ||
Mounting Type Screw | ||
Housing Material ASA, PMMA | ||
Series U300 | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Standards Met CE, cULus | ||
- COO (Country of Origin):
- CH
The Baumer ultrasonic distance measuring sensor provides parallel output signal to the IO-Link channel through Dual Channel. It has flexible parameterization and additional diagnostic data thanks to IOLink.
Best measuring performance due to precise measuring principle
Shortest blind zone in its class
High performance in compact housing
Shortest blind zone in its class
High performance in compact housing
