Omron Diffuse with Background Suppression Photoelectric Sensor, 35 mm → 500 mm Detection Range IO-LINK
- RS Stock No.:
- 215-0541
- Mfr. Part No.:
- E3AS-HL500LMT M3
- Brand:
- Omron
Subtotal (1 unit)*
£366.90
(exc. VAT)
£440.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) ready to ship
- Plus 4 unit(s) shipping from 13 October 2025
- Plus 3 unit(s) shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £366.90 |
*price indicative
- RS Stock No.:
- 215-0541
- Mfr. Part No.:
- E3AS-HL500LMT M3
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Detection Type | Diffuse with Background Suppression | |
Detection Range | 35 mm → 500 mm | |
Output Type | PNP | |
Electrical Connection | M8 Connector | |
Maximum DC Voltage | 30V | |
Communication Protocol | IO-LINK | |
Light Source | Laser Red | |
IP Rating | IP67, IP67G, IP69K | |
Maximum Current | 100 mA | |
Response Time | 1.5/10/50 ms | |
Series | E3AS | |
Maximum Operating Temperature | +50°C | |
Minimum Operating Temperature | -10°C | |
Housing Material | Stainless Steel | |
Thread Size | M8 | |
Select all | ||
---|---|---|
Brand Omron | ||
Detection Type Diffuse with Background Suppression | ||
Detection Range 35 mm → 500 mm | ||
Output Type PNP | ||
Electrical Connection M8 Connector | ||
Maximum DC Voltage 30V | ||
Communication Protocol IO-LINK | ||
Light Source Laser Red | ||
IP Rating IP67, IP67G, IP69K | ||
Maximum Current 100 mA | ||
Response Time 1.5/10/50 ms | ||
Series E3AS | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -10°C | ||
Housing Material Stainless Steel | ||
Thread Size M8 | ||
- COO (Country of Origin):
- CN

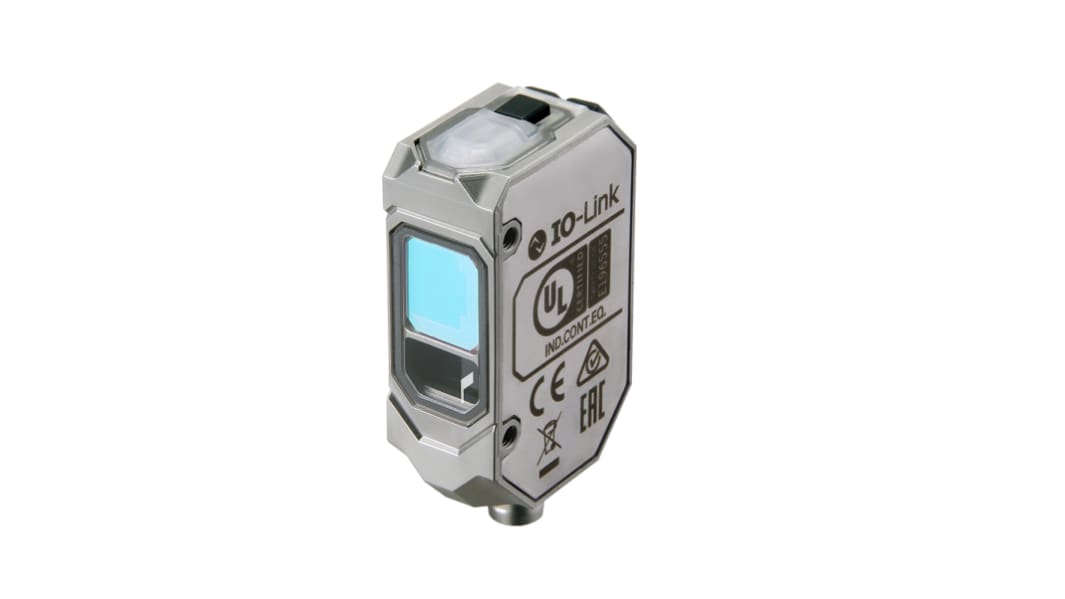

Omron E3AS Series Photoelectric Sensor, 35mm Detection Range, IP67 - E3AS-HL500LMT M3
This photoelectric sensor is designed to excel in various industrial settings, providing reliable detection with a diffuse sensing capability complemented by background suppression. With a detection range from 35mm to 500mm, it features advanced technology like IO-Link for enhanced communication. Its robust construction includes an M8 connector and stainless steel housing, ensuring durability even in challenging environments.
Features & Benefits
• Utilises a laser red light source for precise detection
• Supports PNP output for easy integration in systems
• Equipped with IP67, IP67G, and IP69K ratings for robust protection
• Functions effectively within a temperature range of -10°C to +50°C
• Fast response times at 1.5/10/50ms for dynamic applications
• Compatible with IO-Link for streamlined control and monitoring
• Supports PNP output for easy integration in systems
• Equipped with IP67, IP67G, and IP69K ratings for robust protection
• Functions effectively within a temperature range of -10°C to +50°C
• Fast response times at 1.5/10/50ms for dynamic applications
• Compatible with IO-Link for streamlined control and monitoring
Applications
• Utilised in material handling processes for accurate detection of items
• Ideal for automation systems requiring reliable proximity sensing
• Suitable for robotics where precise position feedback is essential
• Employed in packaging machinery for non-contact detection
• Ideal for automation systems requiring reliable proximity sensing
• Suitable for robotics where precise position feedback is essential
• Employed in packaging machinery for non-contact detection
How does the response time impact performance in dynamic applications?
The sensor's rapid response time of 1.5/10/50ms ensures it can quickly detect objects in motion, making it suitable for applications where timing is critical, such as conveyor systems.
What are the benefits of using an IP67-rated sensor in harsh environments?
An IP67 rating guarantees protection against dust and can withstand immersion in water, ensuring reliable operation in environments exposed to moisture and particulates, thus enhancing longevity.
What kind of connection does it require for integration into existing systems?
The sensor is equipped with an M8 connector, providing a standardised and straightforward method for integration with existing electrical systems, ensuring compatibility and reducing installation time.
