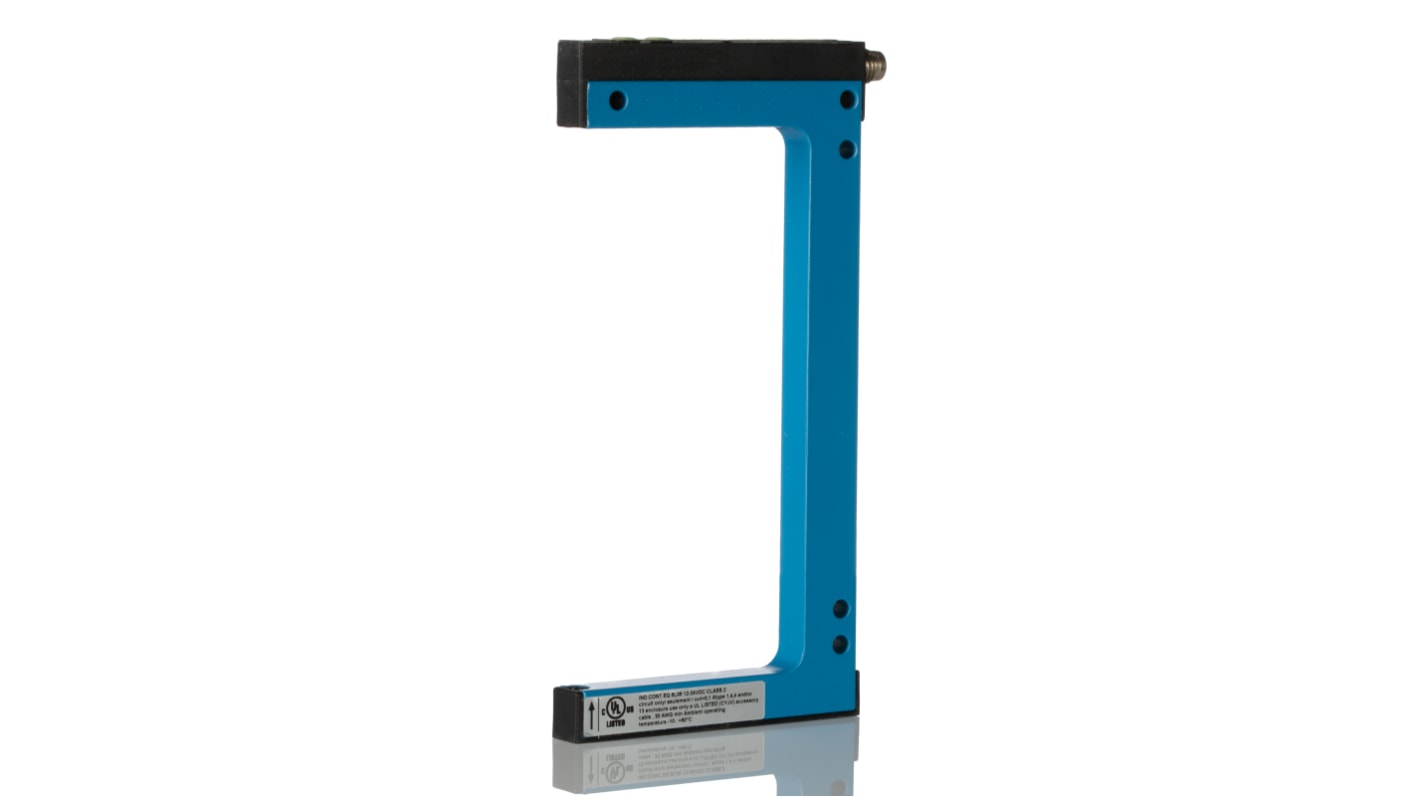

SICK Fork Sensor Photoelectric Sensor, 120 mm Detection Range

View all Photoelectric Sensors

Subtotal (1 unit)*

£294.28

(exc. VAT)

£353.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£294.28

*price indicative

Photoelectric Sensors to Sensors & Actuator Cables
Don’t Forget the Cables
Photoelectric sensors need the right cables to connect, communicate, and perform reliably. Our range of sensors & actuator cables are designed for secure connections, fast installation, and long-lasting durability. If you're selecting sensors, make sure to explore compatible cables to complete your setup and ensure optimal performance in your application.
Shop Now
RS Stock No.:
212-2609
Mfr. Part No.:
WF120-60B410
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Detection Type

Fork Sensor

Detection Range

120 mm

Output Type

Light/Dark Switching, NPN, PNP

Electrical Connection

M8 Connector

Maximum DC Voltage

30V

Terminal Type

4 Pin Connector

IP Rating

IP65

Maximum Current

100 mA

Response Time

0.0001 seconds

Series

WF

Maximum Operating Temperature

+60°C

Housing Material

Metal

Minimum Operating Temperature

-20°C

COO (Country of Origin):
FR

Overview


At a glance


Infrared light source
Simple and precise setting of the switching threshold via IO-Link, teach-in button, or plus/minus buttons
Fast response time: 100 μs
PNP and NPN switching output
Light/dark switching function
Stable aluminum housing with IP 65 enclosure rating
Smart sensor with integrated IO-Link interface

Your Benefit


Fast response time and fine resolution ensure reliable detection even at very high object speeds
Infrared light source provides excellent ambient light immunity
User-friendly setting via IO-Link, teach-in button, or plus/minus buttons
A wide range of different fork sizes enables flexible installation
Stable aluminum housing for use in harsh industrial environments
Thanks to IO-Link or external teach-in, the switching threshold can be adapted while the process is running, increasing process reliability
Easy to access data from the PLC via IO-Link

WFnext fork sensors are at work in the detection of labels, marks, double sheets, holes, edges, and various objects. Thanks to the design principle that sees both the sender and receiver integrated in a single housing, no adjustment is necessary. This easy-to-use sensor line includes fork widths between 2 mm and 120 mm with fork depths of 40 mm, 60 mm, and 95 mm. Extremely fast response times and fine resolution means that WFnext fork sensors from SICK can even detect small and flat objects, as well as those traveling at high speeds.

Applications


Detecting edges, holes, and objects in production processes at high speeds
Monitoring the presence of different objects
Detecting opaque labels
Fine positioning the body
Check of product height

Note


Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
