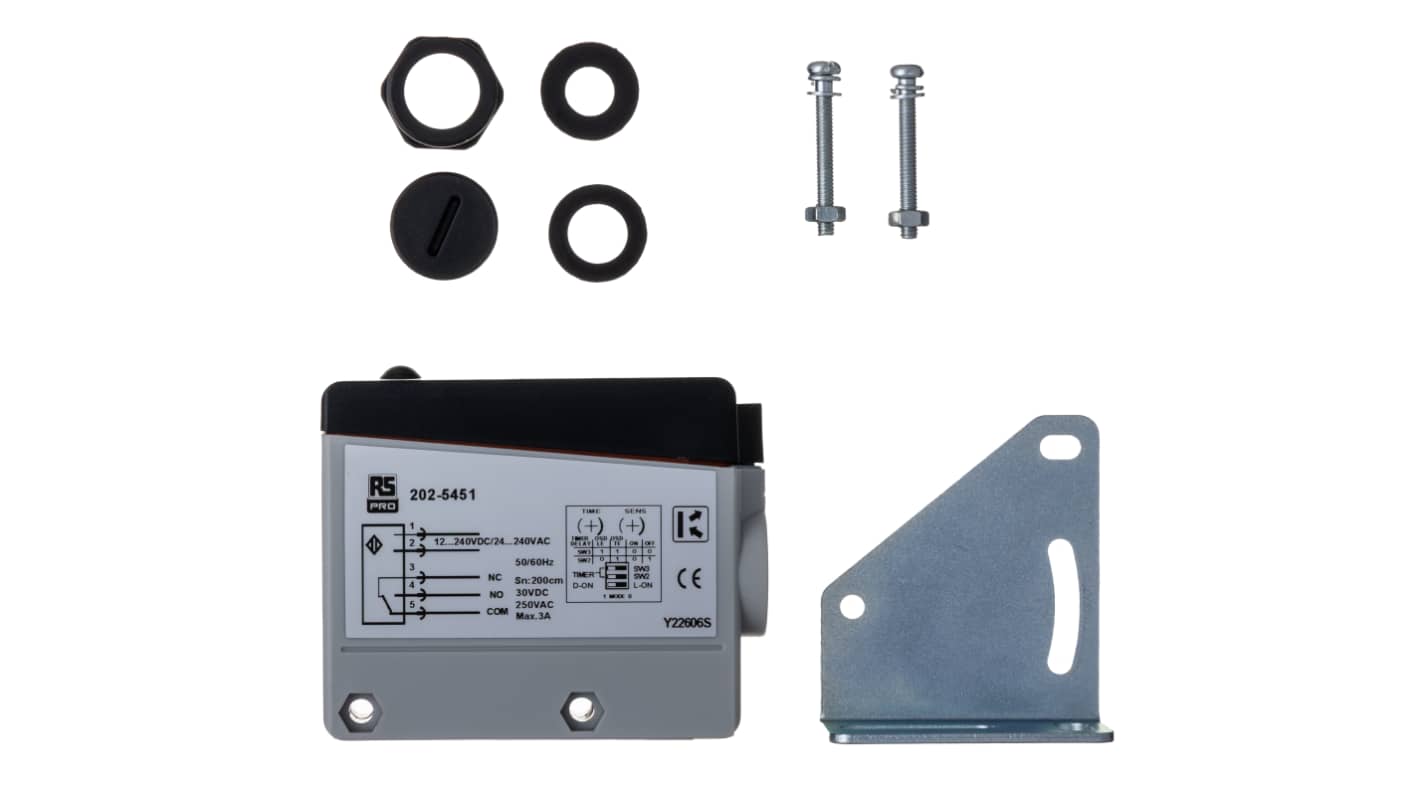

RS PRO Diffuse Reflection Photoelectric Sensor, Block Sensor, 2 m Detection Range
- RS Stock No.:
- 202-5451
- Brand:
- RS PRO
Subtotal (1 unit)*
£74.66
(exc. VAT)
£89.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £74.66 |
*price indicative
- RS Stock No.:
- 202-5451
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Sensor Style | Block | |
Detection Type | Diffuse Reflection | |
Detection Range | 2 m | |
Output Type | Relay | |
Switching Mode | Relay | |
Electrical Connection | Terminal Block | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 240V | |
Terminal Type | Terminal | |
Light Source | Infrared LED | |
IP Rating | IP67 | |
Maximum Current | 3A | |
Response Time | <30ms | |
Mounting Type | Screw, Bracket | |
Housing Material | ABS, PC | |
Minimum Operating Temperature | -15°C | |
Series | PTL | |
Maximum Operating Temperature | +55°C | |
Standards Met | CE | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Sensor Style Block | ||
Detection Type Diffuse Reflection | ||
Detection Range 2 m | ||
Output Type Relay | ||
Switching Mode Relay | ||
Electrical Connection Terminal Block | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 240V | ||
Terminal Type Terminal | ||
Light Source Infrared LED | ||
IP Rating IP67 | ||
Maximum Current 3A | ||
Response Time <30ms | ||
Mounting Type Screw, Bracket | ||
Housing Material ABS, PC | ||
Minimum Operating Temperature -15°C | ||
Series PTL | ||
Maximum Operating Temperature +55°C | ||
Standards Met CE | ||
- COO (Country of Origin):
- CN
RS PRO Photoelectric Sensor, Diffused Detection 2000mm Adjustable Sensing Distance
Introducing photoelectric sensors with adjustable diffused detection from RS PRO, a selection of robust and high quality sensors ideal for use in a wide range of industrial applications. These high performance sensors features an all in one design with emitter and receiver built into a durable housing, making them highly cost effective and easy to install. The sensors use adjustable diffused detection with infrared light for attenuation-free detection of surfaces and objects regardless of colour or texture, ensuring high accuracy and performance. The RS PRO photoelectric sensors with diffused detection also feature excellent anti-interference performance, providing reliable results in a wide range of environments. For enhanced protection the sensors also offer an IP67 protection rating, ensuring it remains protected against dust and moisture.
Features and Benefits
- Diffused detection sensor for enhanced reliability and precision
- 2000mm adjustable sensing distance providing flexibility
- Relay output
- Reliably detect multiple colours and objects with accuracy
- Infrared LED (880nm) light source
- Terminal connections
- High detection accuracy
- All in one design with emitter and receiver built into single housing for easy installation
- IP67 protection offering protection against dust and moisture build up
- Robust design ideal for use in a wide range of environments
- Anti-interference offering excellent performance
Applications
Photoelectric sensors are devices used in a wide range of industrial applications that use automated technology to detect and measure the distance of various objects and surfaces to perform a task. Diffused photoelectric sensors feature either infrared (IR) or visible red lights and are perfect for applications that require precision and repeatability, whilst providing flexibility. Diffuse sensors use a light source that reflects off an object, using it as a reflector. Photoelectric sensors are featured in a wide range of industrial and automated devices including:
- Garage doors
- Smoke detectors
- Hand dryers
- Manufacturing machinery
Standards
IP67, CE.
FAQs
Is the sensor distance adjustable?
Yes, RS PRO diffused suppression sensors feature adjustable sensing from 0 → 2000 mm.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
