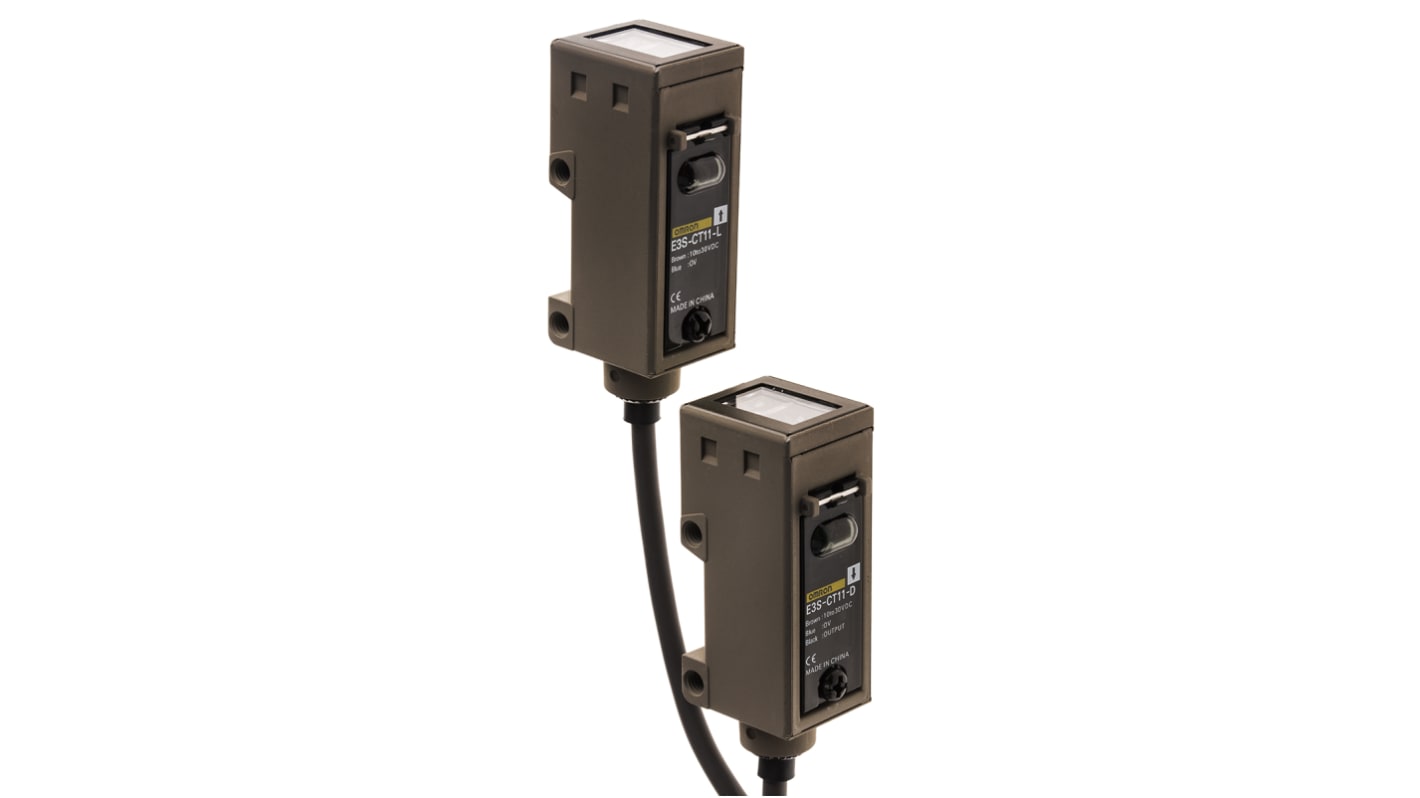

Omron Through Beam Photoelectric Sensor, Block Sensor, 30 m Detection Range
- RS Stock No.:
- 198-0474
- Mfr. Part No.:
- E3SCT11
- Brand:
- Omron
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£328.90
(exc. VAT)
£394.68
(inc. VAT)
- RS Stock No.:
- 198-0474
- Mfr. Part No.:
- E3SCT11
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Sensor Style | Block | |
| Detection Type | Through Beam | |
| Detection Range | 30 m | |
| Output Type | PNP | |
| Electrical Connection | 2/3-Wire Cable 2 m | |
| Maximum DC Voltage | 30V | |
| Light Source | Infrared | |
| IP Rating | IP67 | |
| Maximum Current | 100 mA | |
| Response Time | 1 ms | |
| Maximum Operating Temperature | +55°C | |
| Housing Material | Die Cast Zinc | |
| Minimum Operating Temperature | -25°C | |
| Series | E3S | |
Select all | ||
|---|---|---|
Brand Omron | ||
Sensor Style Block | ||
Detection Type Through Beam | ||
Detection Range 30 m | ||
Output Type PNP | ||
Electrical Connection 2/3-Wire Cable 2 m | ||
Maximum DC Voltage 30V | ||
Light Source Infrared | ||
IP Rating IP67 | ||
Maximum Current 100 mA | ||
Response Time 1 ms | ||
Maximum Operating Temperature +55°C | ||
Housing Material Die Cast Zinc | ||
Minimum Operating Temperature -25°C | ||
Series E3S | ||
RoHS Status: Exempt
Metal Housing E3S-C
Exceeds sensing distance of earlier Omron sensors within this size category. Will withstand the harsh environments found in various manufacturing or process applications (e.g. oil vapour on automobile assembly lines, detergents used in food industry wash down). High immunity to dust/dirt build up.
Horizontal or vertical styles, pre-wired with 2m cable
Rugged metal housing, IP67 sealed
Sensitivity adjustment potentiometer
Output PNP/NPN and light-ON/dark-ON selectable
Response time 2ms max.
Short circuit, reverse polarity protection.
LED indication of operation and stability
Operating temperature range -25 - +55°C
Mounting brackets with fasteners included
Rugged metal housing, IP67 sealed
Sensitivity adjustment potentiometer
Output PNP/NPN and light-ON/dark-ON selectable
Response time 2ms max.
Short circuit, reverse polarity protection.
LED indication of operation and stability
Operating temperature range -25 - +55°C
Mounting brackets with fasteners included
