Idec Through Beam Photoelectric Sensor, Block Sensor, 30 m Detection Range
- RS Stock No.:
- 179-5310
- Mfr. Part No.:
- SA1E-LTP3-2M
- Brand:
- Idec
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 179-5310
- Mfr. Part No.:
- SA1E-LTP3-2M
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Sensor Style | Block | |
| Detection Type | Through Beam | |
| Detection Range | 30 m | |
| Output Type | PNP | |
| Electrical Connection | Cable | |
| Maximum DC Voltage | 30V | |
| IP Rating | IP67 | |
| Maximum Current | 15 mA | |
| Response Time | 250 μs | |
| Series | SA1E | |
| Maximum Operating Temperature | +55°C | |
| Mounting Type | Flange Mount | |
| Housing Material | PBT | |
| Minimum Operating Temperature | -10°C | |
| Standards Met | CE Certified, cULus Listed | |
Select all | ||
|---|---|---|
Brand Idec | ||
Sensor Style Block | ||
Detection Type Through Beam | ||
Detection Range 30 m | ||
Output Type PNP | ||
Electrical Connection Cable | ||
Maximum DC Voltage 30V | ||
IP Rating IP67 | ||
Maximum Current 15 mA | ||
Response Time 250 μs | ||
Series SA1E | ||
Maximum Operating Temperature +55°C | ||
Mounting Type Flange Mount | ||
Housing Material PBT | ||
Minimum Operating Temperature -10°C | ||
Standards Met CE Certified, cULus Listed | ||
- COO (Country of Origin):
- JP

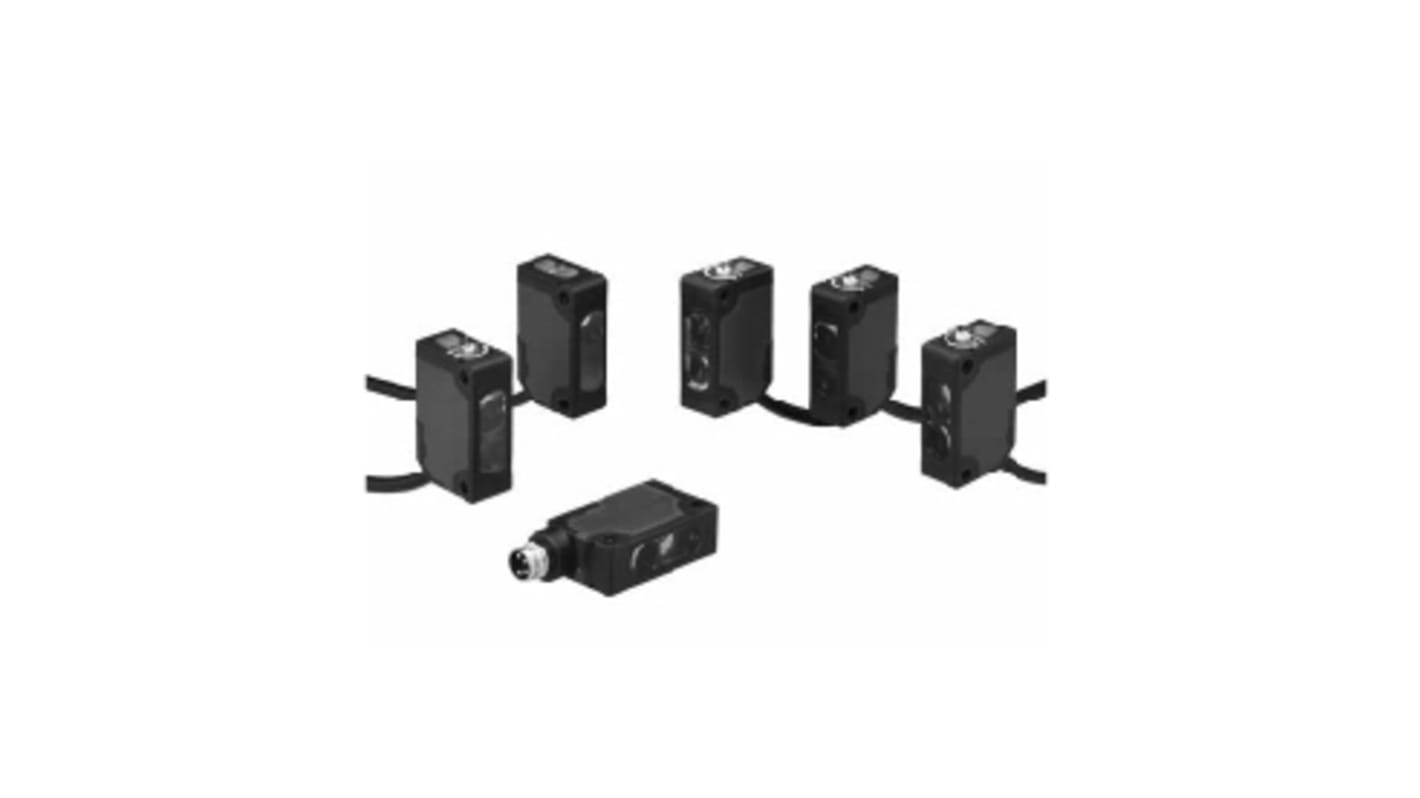

Six sensing methods
Cable model (three cable lengths) and M8 connector models are available.
NPN output, PNP output, light ON, dark ON can be selected.
Sensing range doubled with SA1E-T through-beam and SA1E-P polarized retro-reflective models.
Highly stable with excellent resistance against vibration and shock resistance.
Coaxial polarized retro-reflective model (SA1E-X) ensures stable detection, unaffected by construction, inclination or shaking of the object, and a high-speed response and small beam ensure reliable counting of target objects moving at high speed.
Air blower mounting block for installing an air blower to clean the lens surface. Ideal to maintain a clean lens surface and sensor performance.
Nine types of slits for through-beam models available.
Cable model (three cable lengths) and M8 connector models are available.
NPN output, PNP output, light ON, dark ON can be selected.
Sensing range doubled with SA1E-T through-beam and SA1E-P polarized retro-reflective models.
Highly stable with excellent resistance against vibration and shock resistance.
Coaxial polarized retro-reflective model (SA1E-X) ensures stable detection, unaffected by construction, inclination or shaking of the object, and a high-speed response and small beam ensure reliable counting of target objects moving at high speed.
Air blower mounting block for installing an air blower to clean the lens surface. Ideal to maintain a clean lens surface and sensor performance.
Nine types of slits for through-beam models available.
