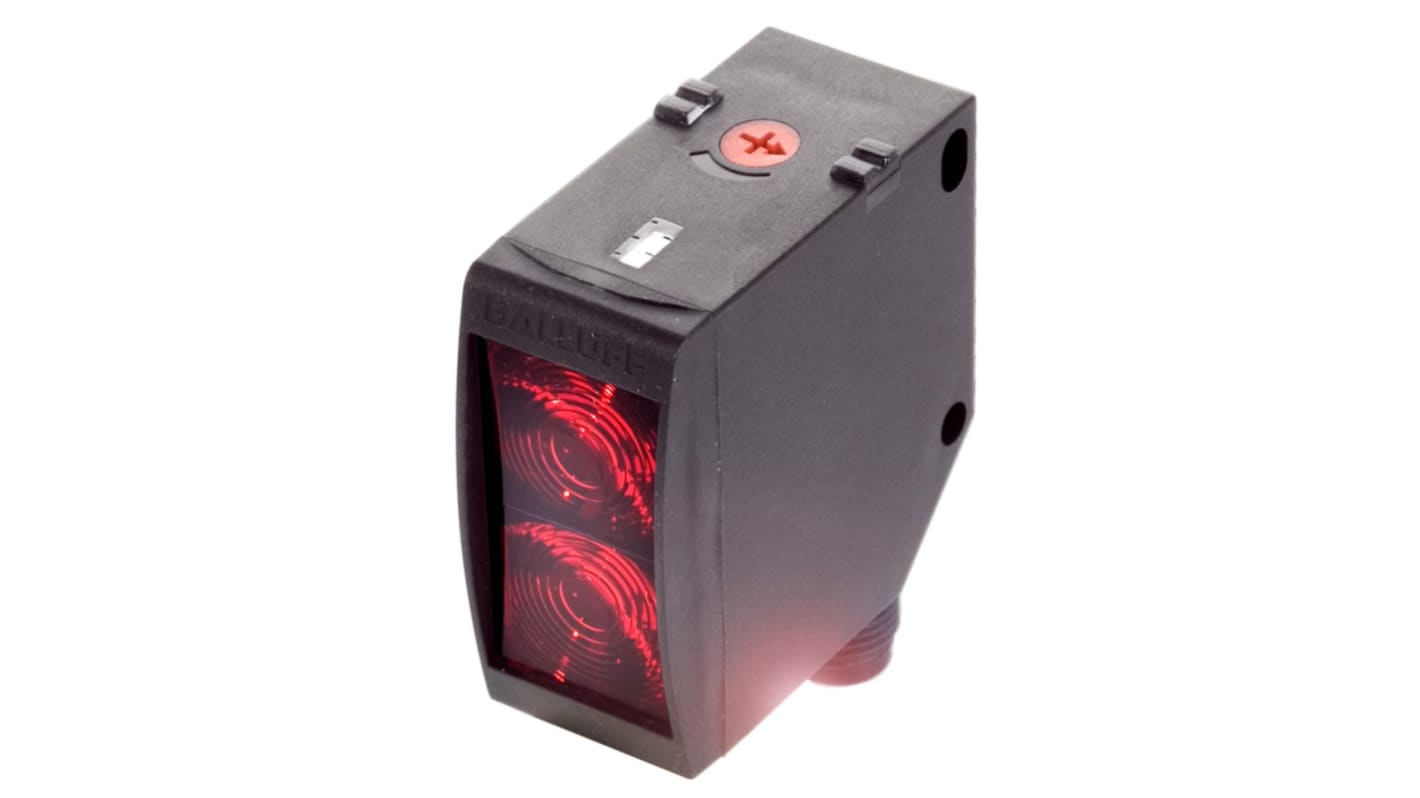

BALLUFF Diffuse Photoelectric Sensor, Block Sensor, Maximum of 1.2 m Detection Range IO-LINK
- RS Stock No.:
- 135-0292
- Mfr. Part No.:
- BOS 23K-GI-RH10-S4
- Brand:
- BALLUFF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 135-0292
- Mfr. Part No.:
- BOS 23K-GI-RH10-S4
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Sensor Style | Block | |
| Detection Type | Diffuse | |
| Detection Range | Maximum of 1.2 m | |
| Output Type | NPN/PNP | |
| Electrical Connection | M12 4 Pin Connector | |
| Maximum DC Voltage | 30V | |
| Communication Protocol | IO-LINK | |
| Terminal Type | 4 Pin Connector | |
| Light Source | LED | |
| IP Rating | IP6X, IPX6K | |
| Maximum Current | 100 mA | |
| Interface | IO-Link | |
| Series | BOS 23K | |
| Maximum Operating Temperature | +60°C | |
| Housing Material | Polycarbonate/ABS Alloy | |
| Mounting Type | Threaded | |
| Minimum Operating Temperature | -20°C | |
| Standards Met | CE, ECOLAB, IEC 60947-5-2 | |
Select all | ||
|---|---|---|
Brand BALLUFF | ||
Sensor Style Block | ||
Detection Type Diffuse | ||
Detection Range Maximum of 1.2 m | ||
Output Type NPN/PNP | ||
Electrical Connection M12 4 Pin Connector | ||
Maximum DC Voltage 30V | ||
Communication Protocol IO-LINK | ||
Terminal Type 4 Pin Connector | ||
Light Source LED | ||
IP Rating IP6X, IPX6K | ||
Maximum Current 100 mA | ||
Interface IO-Link | ||
Series BOS 23K | ||
Maximum Operating Temperature +60°C | ||
Housing Material Polycarbonate/ABS Alloy | ||
Mounting Type Threaded | ||
Minimum Operating Temperature -20°C | ||
Standards Met CE, ECOLAB, IEC 60947-5-2 | ||
- COO (Country of Origin):
- DE
BOS Diffuse Proximity Rectangular Sensors
The photoelectric sensors from BALLUFF BOS range use diffuse proximity technology to detect if an object moves within the sensing range. The sensor emits a light beam which reflects of the object in its path, when the object moves within the sensing range the light will reflect back at the correct angle to hit the receiver unit triggering activation of the sensor. Diffuse photoelectric sensors are used in industrial environments for applications where accurate proximity detection of metal or non-mental objects is essential.
Pre cabled or connector
Rectangular body
3 wire and 4 wire DC configuration
Short-circuit protected
Polarity reversal protected
Rectangular body
3 wire and 4 wire DC configuration
Short-circuit protected
Polarity reversal protected
