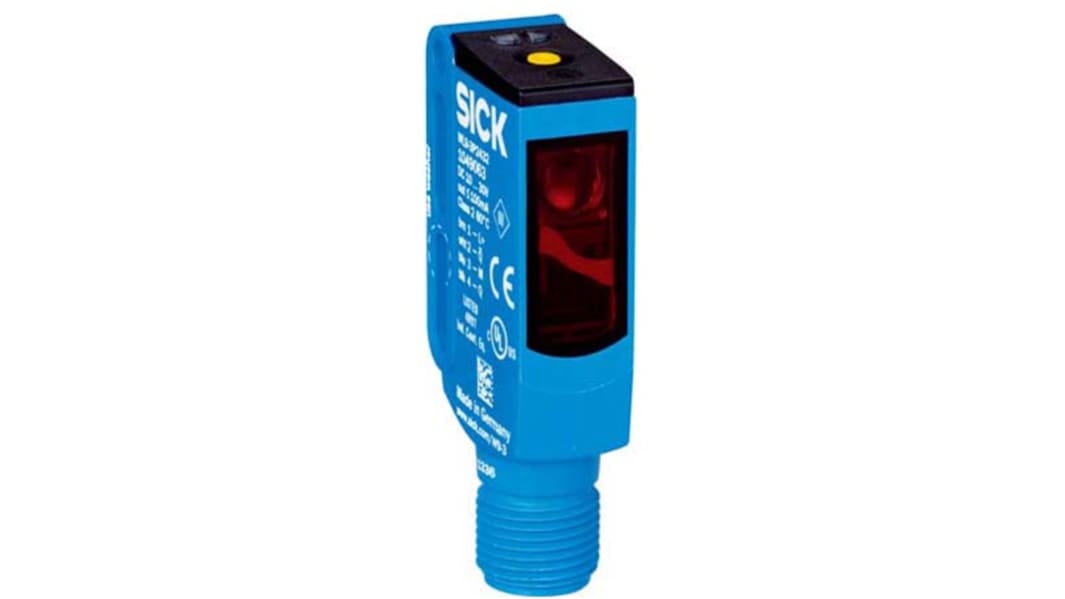

SICK Retroreflective Photoelectric Sensor, Block Sensor, 0 → 5 m Detection Range IO-LINK
- RS Stock No.:
- 134-7799
- Mfr. Part No.:
- WL9C-3P2432A00
- Brand:
- SICK
Subtotal (1 unit)*
£156.69
(exc. VAT)
£188.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £156.69 |
*price indicative
- RS Stock No.:
- 134-7799
- Mfr. Part No.:
- WL9C-3P2432A00
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SICK | |
Sensor Style | Block | |
Detection Type | Retroreflective | |
Detection Range | 0 → 5 m | |
Output Type | PNP | |
Electrical Connection | M12 4 Pin Connector | |
Communication Protocol | IO-LINK | |
Maximum DC Voltage | 30V | |
Terminal Type | 4 Pin Connector | |
Light Source | LED | |
IP Rating | IP66, IP67, IP69K | |
Maximum Current | 30 mA | |
Response Time | <500 μs | |
Interface | IO-Link | |
Mounting Type | Panel Mount | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +60°C | |
Series | W9-3 | |
Housing Material | Vistal Plastic | |
Standards Met | CE, cULus, ECOLAB | |
Select all | ||
---|---|---|
Brand SICK | ||
Sensor Style Block | ||
Detection Type Retroreflective | ||
Detection Range 0 → 5 m | ||
Output Type PNP | ||
Electrical Connection M12 4 Pin Connector | ||
Communication Protocol IO-LINK | ||
Maximum DC Voltage 30V | ||
Terminal Type 4 Pin Connector | ||
Light Source LED | ||
IP Rating IP66, IP67, IP69K | ||
Maximum Current 30 mA | ||
Response Time <500 μs | ||
Interface IO-Link | ||
Mounting Type Panel Mount | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +60°C | ||
Series W9-3 | ||
Housing Material Vistal Plastic | ||
Standards Met CE, cULus, ECOLAB | ||
- COO (Country of Origin):
- DE
Sick W9-3 I/O-Link Photoelectric Sensors
SICK W9-3 I/O-Link photoelectric sensors enclosed in a slim housing that reliably detects transparent objects. Small gaps between objects, highly transparent thin films, and vials with flow marks and severe lens defects can be reliably detected.
Setting the sensor requires a single press of the teach-in pushbutton. The sensor reliably adjusts for any changes to environmental conditions such as temperature, dust or dirt. The single-lens system sees through even the smallest of openings.
I/O-Link is the new communication standard for the integration of the sensors and actuators into automation systems. W9-3 I/O-Link can be parametrised and monitored via field bus. Preventative maintenance and service measures can be implemented, and changeover times for product or format changes can be significantly reduced.
Setting the sensor requires a single press of the teach-in pushbutton. The sensor reliably adjusts for any changes to environmental conditions such as temperature, dust or dirt. The single-lens system sees through even the smallest of openings.
I/O-Link is the new communication standard for the integration of the sensors and actuators into automation systems. W9-3 I/O-Link can be parametrised and monitored via field bus. Preventative maintenance and service measures can be implemented, and changeover times for product or format changes can be significantly reduced.
Features and Benefits
Continuous threshold adaption (AutoAdapt)
Single-lens autocollimation optics
Simple setting either via teach-in pushbutton, cable or IO-Link
PinPoint LED technology
Flexible sensor settings, monitoring, advanced diagnostics, and visualization thanks to IO-Link
Single-lens autocollimation optics
Simple setting either via teach-in pushbutton, cable or IO-Link
PinPoint LED technology
Flexible sensor settings, monitoring, advanced diagnostics, and visualization thanks to IO-Link
Sick I/O-Link Photoelectric Sensors
With its line of Smart Sensor Solutions powered by I/O-Link, SICK offers a range of products providing solutions that optimize the automation technology used in machines and systems.
I/O-Link is the first standardised I/O technology worldwide (IEC 61131-9) for the communication with sensors and actuators. I/O-Link provides a point-to-point connection located in any given network.
I/O-Link is the first standardised I/O technology worldwide (IEC 61131-9) for the communication with sensors and actuators. I/O-Link provides a point-to-point connection located in any given network.
