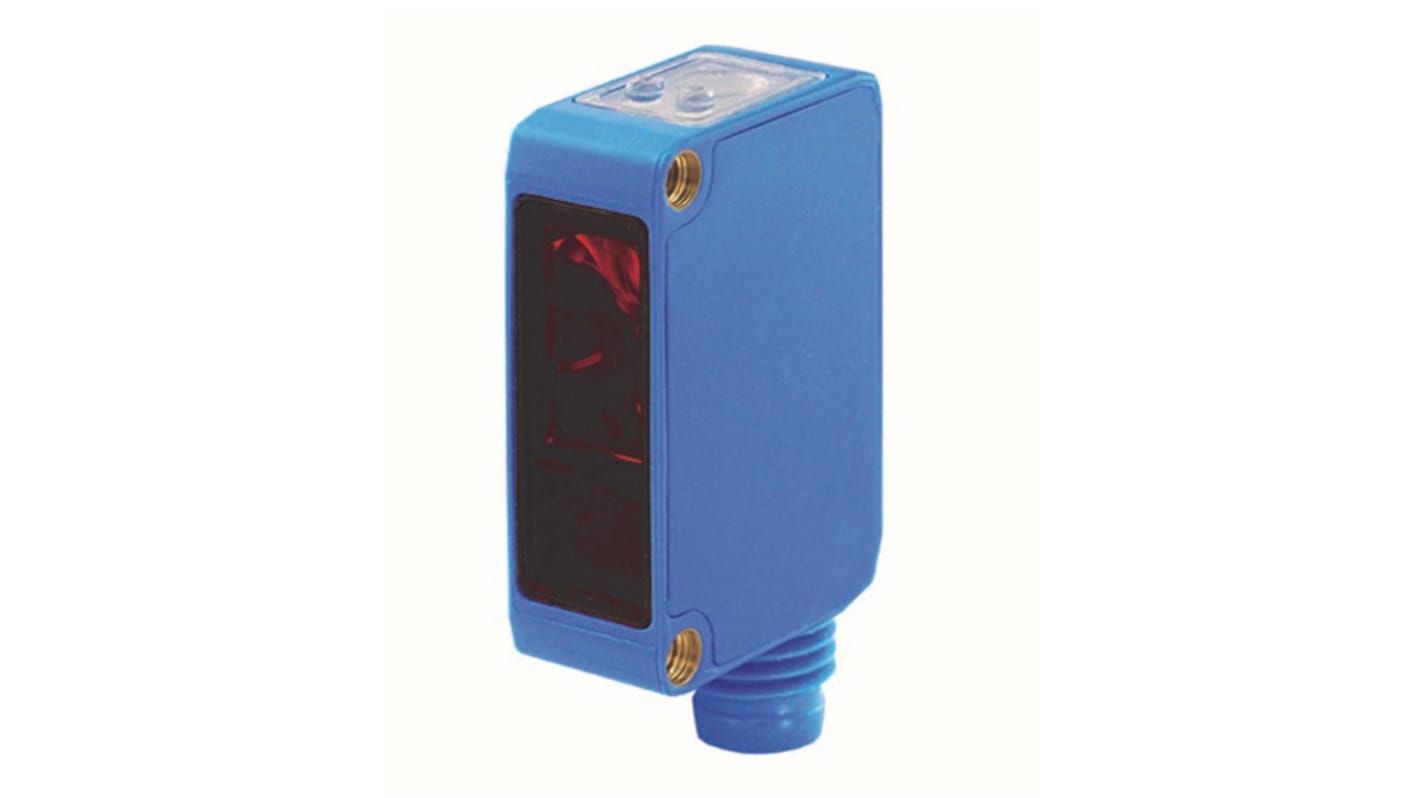

RS PRO Through Beam Photoelectric Sensor, Photoelectric Sensor, 0 → 30000mm Detection Range IO-LINK
- RS Stock No.:
- 360-247
- Brand:
- RS PRO
Subtotal (1 unit)*
£123.60
(exc. VAT)
£148.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £123.60 |
*price indicative
- RS Stock No.:
- 360-247
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Sensor Style | Photoelectric | |
| Detection Type | Through Beam | |
| Detection Range | 0 → 30000mm | |
| Output Type | Emitter | |
| Switching Mode | Light / Dark switching | |
| Electrical Connection | 3-Pin M8 Connector | |
| Communication Protocol | IO-LINK | |
| Maximum DC Voltage | 30V dc | |
| Light Source | LED | |
| IP Rating | IP67 | |
| Maximum Current | 100mA | |
| Response Time | 1m/s | |
| Housing Material | ABS | |
| Maximum Operating Temperature | 65°C | |
| Minimum Operating Temperature | -25°C | |
| Standards Met | CE, cULus Listed | |
| Thread Size | M8 x 1 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Sensor Style Photoelectric | ||
Detection Type Through Beam | ||
Detection Range 0 → 30000mm | ||
Output Type Emitter | ||
Switching Mode Light / Dark switching | ||
Electrical Connection 3-Pin M8 Connector | ||
Communication Protocol IO-LINK | ||
Maximum DC Voltage 30V dc | ||
Light Source LED | ||
IP Rating IP67 | ||
Maximum Current 100mA | ||
Response Time 1m/s | ||
Housing Material ABS | ||
Maximum Operating Temperature 65°C | ||
Minimum Operating Temperature -25°C | ||
Standards Met CE, cULus Listed | ||
Thread Size M8 x 1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- LK
RS PRO Through Beam Photoelectric Sensor, 0 to 30000 mm Detection Range
This RS PRO Through Beam Photoelectric Sensor is designed for precise detection over long distances, making it ideal for industrial automation applications. With a detection range of up to 30000 mm, it ensures reliable performance in various environments.
Features and Benefits
Miniature Housing for easy integration into compact spaces
Sensitivity Adjustment Via IO-Link for customised detection settings
IO-Link interface for seamless communication and control
Calibrated Range ensures accurate and consistent performance
Emitting Sequence Selection Via IO-Link for flexible operation
Sensitivity Adjustment Via IO-Link for customised detection settings
IO-Link interface for seamless communication and control
Calibrated Range ensures accurate and consistent performance
Emitting Sequence Selection Via IO-Link for flexible operation
Applications
Industrial automation
Material handling
Packaging machinery
Assembly lines
Material handling
Packaging machinery
Assembly lines
Additional Information
Standards Met: CE, cULus Listed
Housing Material: ABS
IP Rating: IP67 for protection against dust and water
Interface: IO-Link for advanced connectivity
Housing Material: ABS
IP Rating: IP67 for protection against dust and water
Interface: IO-Link for advanced connectivity
