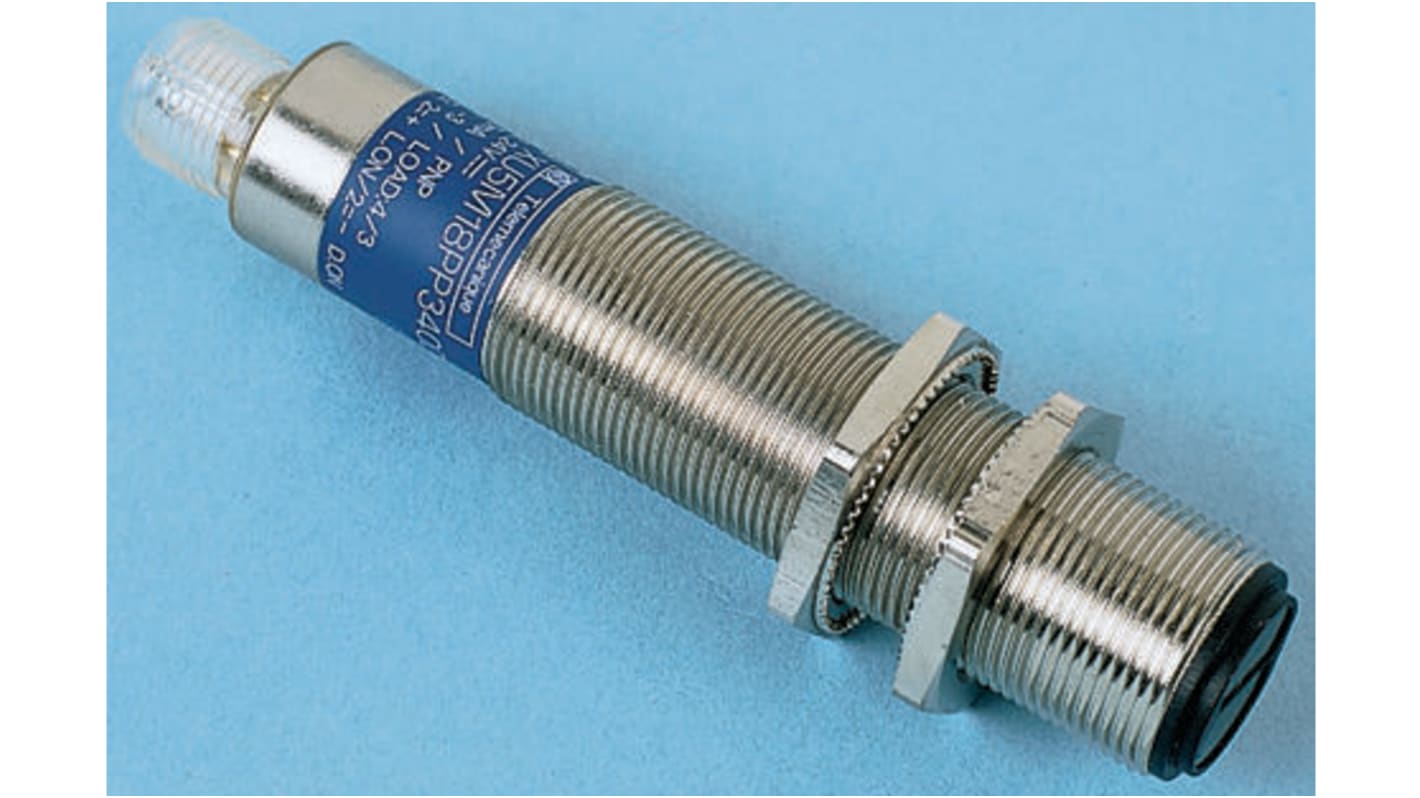

Telemecanique Sensors Diffuse Photoelectric Sensor, Barrel Sensor, 120 mm Detection Range
- RS Stock No.:
- 198-996
- Distrelec Article No.:
- 303-04-391
- Mfr. Part No.:
- XU8M18MA230K
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£142.01
(exc. VAT)
£170.41
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £142.01 |
*price indicative
- RS Stock No.:
- 198-996
- Distrelec Article No.:
- 303-04-391
- Mfr. Part No.:
- XU8M18MA230K
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Sensor Style | Barrel | |
| Detection Type | Diffuse | |
| Detection Range | 120 mm | |
| Output Type | Relay | |
| Electrical Connection | 1/2"20 UNF 3 Pin Connector | |
| Maximum AC Voltage | 240V | |
| Maximum DC Voltage | 240V | |
| Light Source | Infrared | |
| IP Rating | IP67 | |
| Maximum Current | 200 mA | |
| Response Time | =20 ms | |
| Maximum Operating Temperature | +55°C | |
| Housing Material | Nickel Plated Brass | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Sensor Style Barrel | ||
Detection Type Diffuse | ||
Detection Range 120 mm | ||
Output Type Relay | ||
Electrical Connection 1/2"20 UNF 3 Pin Connector | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 240V | ||
Light Source Infrared | ||
IP Rating IP67 | ||
Maximum Current 200 mA | ||
Response Time =20 ms | ||
Maximum Operating Temperature +55°C | ||
Housing Material Nickel Plated Brass | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Osiris M18 x 1 XU series photoelectric cells, in metal housing
XU series photoelectric sensors.
Set of M18 cylindrical photoelectric cells in metal housing.
Protection from short circuits in all models with transistor output.
with sensitivity adjustment:
LED status display.
Cable exit or connector.
Protection from short circuits in all models with transistor output.
with sensitivity adjustment:
LED status display.
Cable exit or connector.
