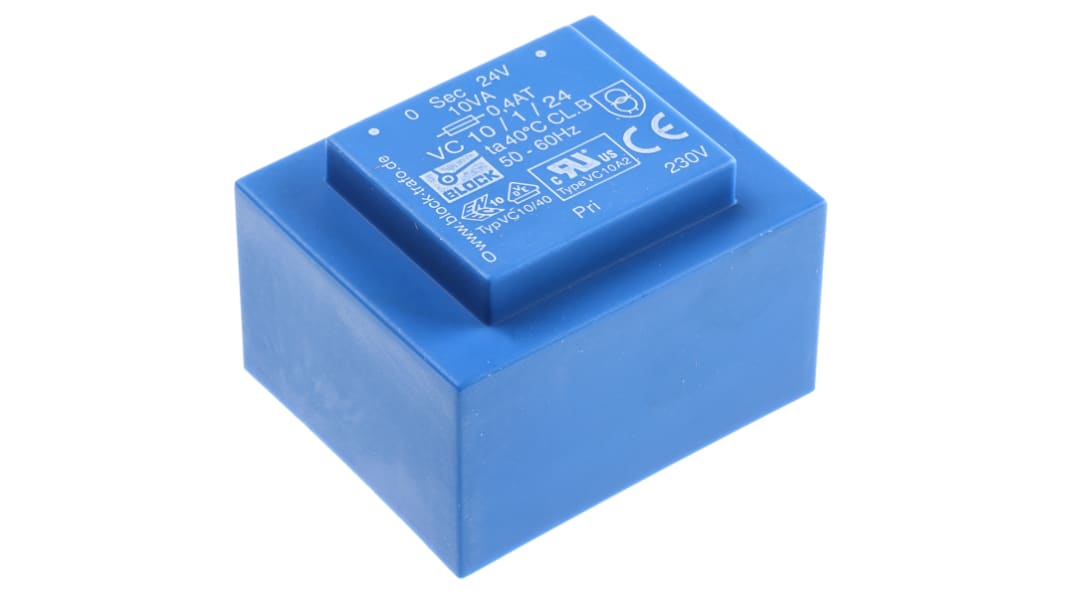

Block 24V ac 1 Output Through Hole PCB Transformer, 10VA
- RS Stock No.:
- 732-0446
- Mfr. Part No.:
- VC 10/1/24
- Brand:
- Block
66 In stock - FREE next working day delivery available
17 available from Europe for delivery within 1 working day(s).
Added
Price Each
£14.10
(exc. VAT)
£16.92
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £14.10 |
| 10 - 24 | £13.61 |
| 25 - 49 | £12.48 |
| 50 + | £11.36 |
- RS Stock No.:
- 732-0446
- Mfr. Part No.:
- VC 10/1/24
- Brand:
- Block
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB Mount 230Vac Primary VC/VCM Series
Single and twin secondary windings for series or parallel connection
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)
Note
To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.
Standards
EN 61 558 IEC 61558
Approvals
ENEC, UL recognised
Approvals
VDE; UL
Standards
EN 61 558; IEC 61558
Specifications
Attribute | Value |
|---|---|
| Secondary Voltage Rating | 24V ac |
| Power Rating | 10VA |
| Primary Voltage Rating | 230V ac |
| Number of Outputs | 1 |
| Length | 51mm |
| Width | 43mm |
| Depth | 34.6mm |
| Dimensions | 51 x 43 x 34.6mm |
| Weight | 280g |
| Mounting Type | Through Hole |
| Maximum Temperature | +40°C |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
