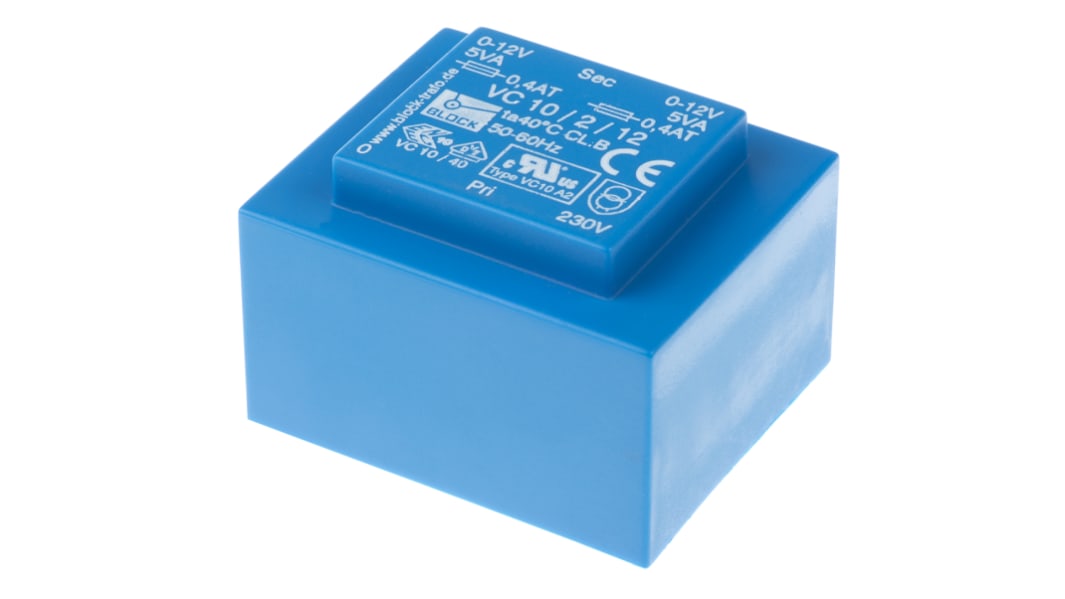

12V ac 2 Output Through Hole PCB Transformer, 10VA

  • RS Stock No. 347-2616
  • Mfr. Part No. VC 10/2/12
  • Brand Block
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

PCB Mount 230Vac Primary VC/VCM Series

Single and twin secondary windings for series or parallel connection
Vacuum resin moulded to UL94-V0 rating
Low inter-winding capacitance
Low radiated noise
100% electrical and flash tested
Extra fixing points for secure board mounting (25 VA and 36 VA)

Note

To conform to VDE 0550,UL506 all transformers with 2 x 24V outputs should not have their secondaries connected in series.

Standards

EN 61 558 IEC 61558

Approvals

ENEC, UL recognised

//media.rs-online.com/t_line/L347247-01.gif
//media.rs-online.com/t_line/L347248-01.gif

Approvals

VDE; UL

Standards

EN 61 558; IEC 61558

Specifications
Attribute Value
Secondary Voltage Rating 12V ac
Power Rating 10VA
Primary Voltage Rating 230V ac
Number of Outputs 2
Length 51mm
Width 34.6mm
Depth 43mm
Dimensions 51 x 34.6 x 43mm
Weight 280g
Mounting Type Through Hole
Maximum Temperature +40°C
27 In stock for FREE next working day delivery
Price Each
£ 5.37
(exc. VAT)
£ 6.44
(inc. VAT)
Units
Per unit
1 - 9
£5.37
10 - 24
£5.11
25 - 49
£4.71
50 +
£4.29
