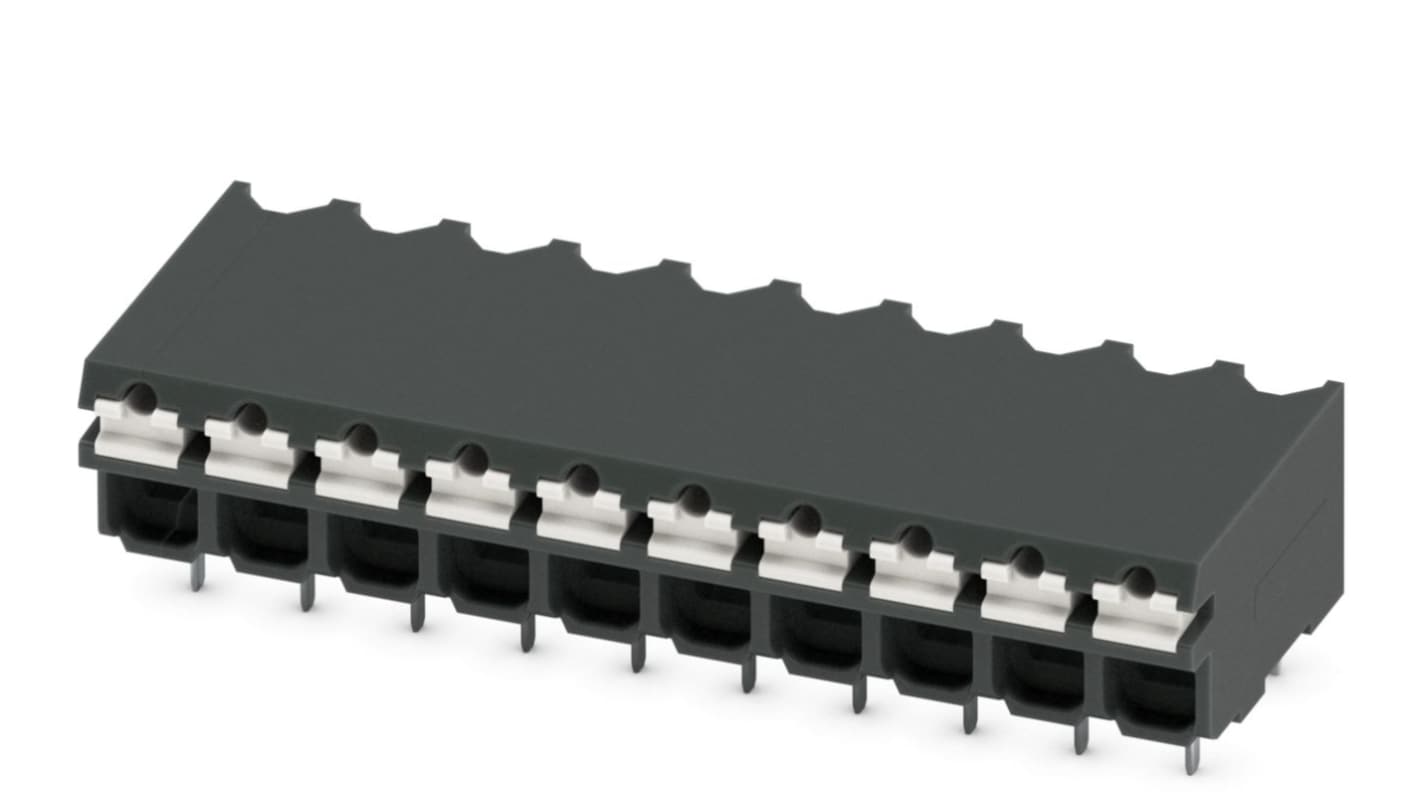

Phoenix Contact SPT-THR 1.5/10-H-3.81 P26 Series PCB Terminal Block, 3.81mm Pitch, Through Hole Mount, Spring Cage
- RS Stock No.:
- 881-1808
- Mfr. Part No.:
- 1822943
- Brand:
- Phoenix Contact
Available to back order for despatch 12/07/2024
Added
Price Each (In a Box of 60)
£2.949
(exc. VAT)
£3.539
(inc. VAT)
| Units | Per unit | Per Box* |
| 60 + | £2.949 | £176.94 |
| *price indicative | ||
- RS Stock No.:
- 881-1808
- Mfr. Part No.:
- 1822943
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², Number of potentials: 10, Number of rows: 1, Number of positions per row: 10, product range: SPT 1,5/..-H-THR, pitch: 3.81 mm, connection method: Push-in spring connection, mounting: THR soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear double pinning, Solder pin [P]: 2.6 mm, type of packaging: packed in cardboard
Specifications
Attribute | Value |
|---|---|
| Pitch | 3.81mm |
| Mounting Type | Through Hole |
| Termination Method | Spring Cage |
| Type | PCB Terminal Block |
| Current Rating | 13.5A |
| Colour | Black |
| Voltage Rating | 320 V |
| Series | SPT-THR 1.5/10-H-3.81 P26 |
| Material | Liquid Crystal Polymer |
| Depth | 7.7mm |
| Length | 13.7mm |
| Width | 38.29mm |
